Description

Price

1

Arbre Assemble *Drive Axle Ass | Includes 1 to 6

705400914

$263.05

2

YOKE, FIXED JOINT - Call your local BRP dealership

705400391

Unavailable

3

Ens. Croix*U-Joint Cross Kit

715900325

$69.20

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

6

GREASE FITTING - Call your local BRP dealership

705500841

$5.35

7

Front Bushing Shaft Kit | 4X4

703500678

$104.58

8

Wear Ring | 4X4

705400036

$25.35

9

Front Differential | Includes 8 to 31

703500907

$1,476.89

10

Oil Seal | 4X4

705401481

$18.43

11

Nut | 4X4

705401603

$36.89

12

Ball Bearing | 4X4

705500260

$30.74

13

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

14

Needle Bearing | 4X4

705500261

Unavailable

15

Ball Bearing | 4X4

705401606

$49.20

16

Ball Bearing | 4X4

293350044

$30.74

17

Ens Differentiel*Differential Kit | 4X4

703500871

$710.74

18

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

$249.20

19

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

$8.43

20

Screw | 4X4

705401601

$9.29

21

FRONT COVER - Call your local BRP dealership

705400762

Unavailable

22

Seal | 4X4

705500265

$16.12

23

Front Cover

705400646

Unavailable

24

VENT VALVE - Call your local BRP dealership | 4X4

705500893

$14.37

25

Drain Plug | 4X4

705500894

$11.06

26

Synthetic Grease, 400 G

293550010

Unavailable

27

RETAINING RING - Call your local BRP dealership | 4X4

705500269

$8.43

28

O-Ring | 4X4

705500267

$6.25

29

Gasket | 4X4

705401618

$17.66

30

Pinion Gear Shim 1.67 mm

705502061

$16.12

30

Pinion Gear Shim .022"

705500075

Unavailable

31

Shim | 4X4

705401604

$55.35

32

Shim | 4X4

705401604

$55.35

33

Fill Level Plug | 4X4

705500504

$7.61

34

Copper Washer | 4X4

705500506

$0.36

35

RH Half Shaft | Includes 34 to 39

705401579

$233.82

36

CV Joint

705500560

Unavailable

37

Wheel Boot Kit

705400511

$41.51

37a

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

$9.71

37b

OETIKER CLAMP 70MM - Call your local BRP dealership

293650194

$14.06

38

Differential Boot Kit

705400512

$41.51

38a

OETIKER CLAMP 23MM - Call your local BRP dealership

293650192

$9.71

38b

OETIKER CLAMP 67MM - Call your local BRP dealership

293650193

$16.12

39

RH Plunging Joint

705400513

Unavailable

40

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

41

LH KNUCKLE - Call your local BRP dealership

705400817

Unavailable

42

RH KNUCKLE - Call your local BRP dealership

705400819

Unavailable

43

LH Half Shaft | Includes 42 to 47

705401578

$233.82

44

CV Joint

705500560

Unavailable

45

Wheel Boot Kit

705400511

$41.51

46

Differential Boot Kit

705400512

$41.51

47

LH Plunging Joint

705400514

Unavailable

48

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

49

Ball Bearing

293350150

$52.99

50

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.57

51

Circlip

293370019

$4.98

52

Hex. Flange Screw M10 X 125

230602546

$6.08

53

Hex. Flange Elastic Nut M10

233201436

$1.74

54

Wear Sleeve | 4X4

705501121

$7.28

55

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

56

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

57

Conical Spring Washer M18

250200171

$5.28

58

Hex. Flange Castellated Nut M18

232291413

$2.82

59

Cotter Pin

250400036

$1.74

60

Rubber Bellow | 4X4

705400552

$6.02

61

Oetiker Clamp

293650042

$1.40

62a

Not Available As Spare Parts

XXX

Unavailable

62b

Wheel Cap | STD

705400563

$16.12

63

Tire | STD

705401331

$147.66

63

Front Tire | STD EURO

705401332

$147.66

64a

Not Available As Spare Parts

XXX

Unavailable

64b

RIM_12 INCH X 6 - Call your local BRP dealership | STD

705400689

$103.82

65

Rim Valve With Cap

705400193

$6.69

66

Self Adhesive Weight, 5G 20mm

705502106

$4.35

66

ADHESIVE WEIGHT, 1/2 OZ - Call your local BRP dealership

705500824

$2.42

67

Steel Wheel Nut

250100042

$2.48

68

Washer

211200041

$2.63

69

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

70

Wear Sleeve

705400780

$7.28

71

Flat Washer M10 | 4X4

250200014

$1.17

72

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.60

73

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$13.62

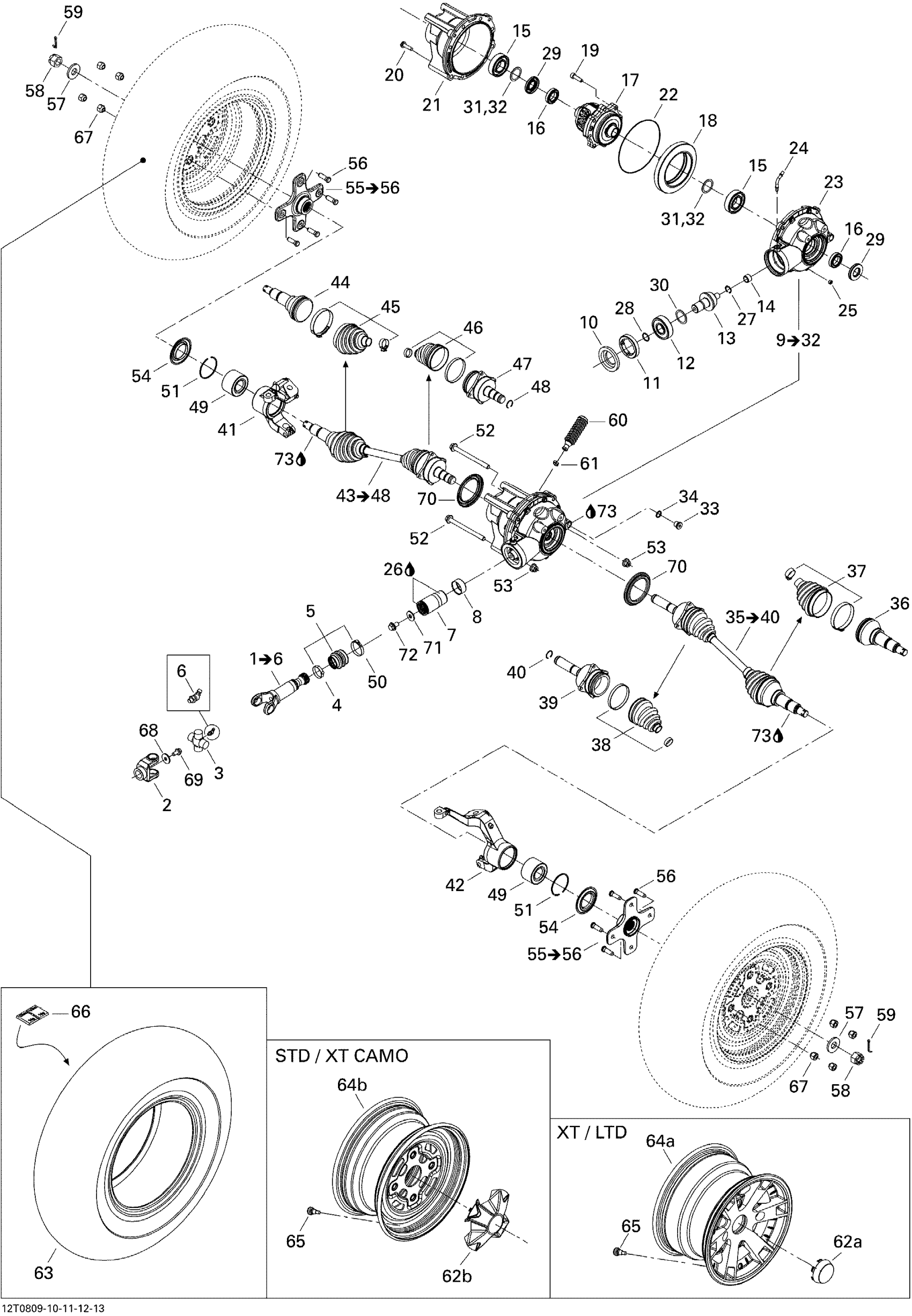

Can-Am Outlander MAX 650 STD, 2008 Drive System, Front STD Diagram
