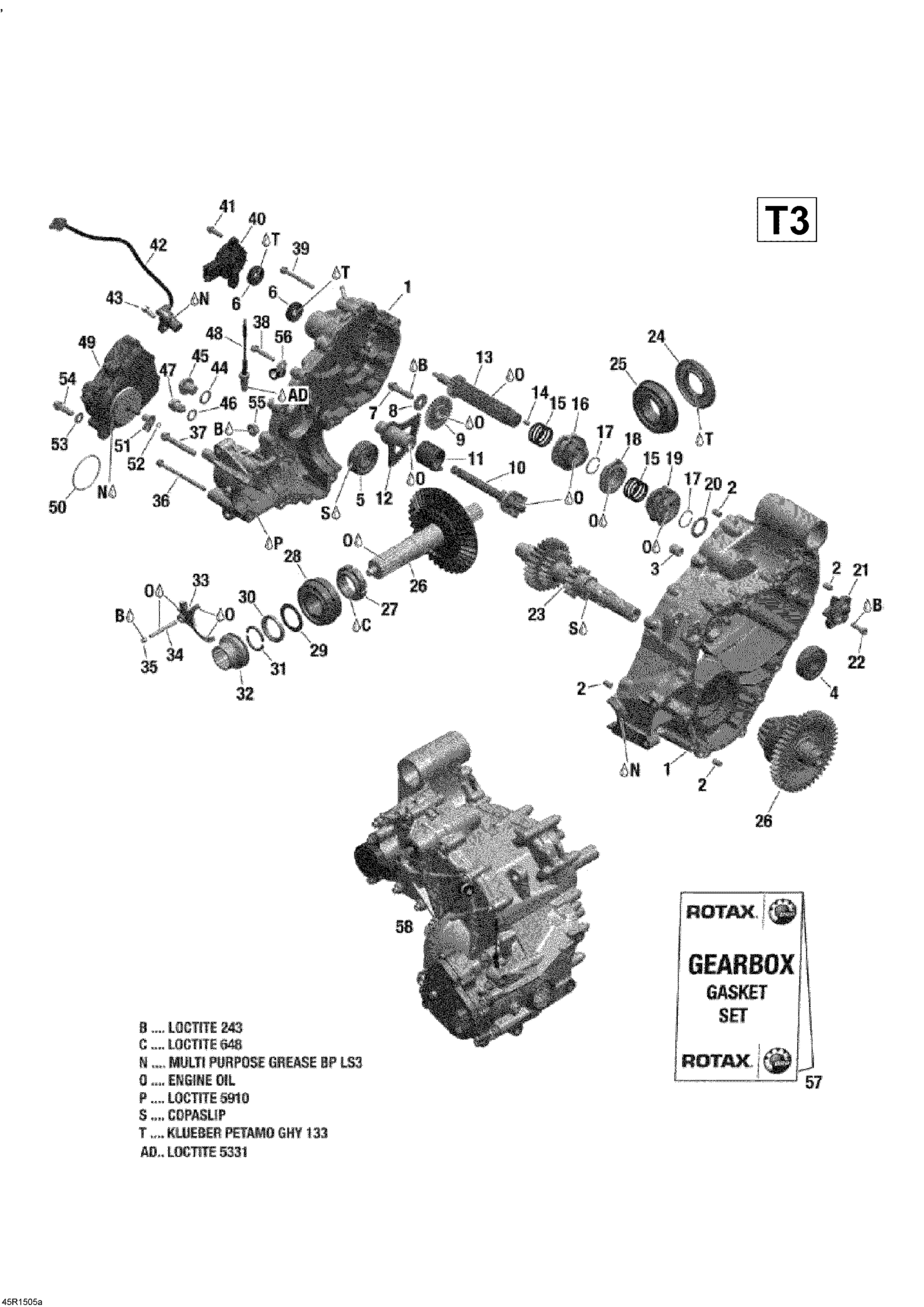

Can-Am Outlander MAX 650 EFI, 2015 Gear Box 1_T3 Package Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Ball Bearing

420932816

$40.74

5

Ball Bearing 6204

420932433

$22.28

6

Oil Seal

420250450

$16.89

7

Torx Flange Screw M8 X 35

420641188

$6.11

8

Plain Washer

420227937

$2.75

9a

Shift Shaft Ass'y | Includes 9a to 12

420620922

$91.51

9b

Not Available As Spare Part - Friction Washer

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Shifting Drum Ass'y | Includes 13-20

420657235

$299.97

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Allen Screw M6 X 20

420241939

$0.68

23

Countershaft

420637707

$364.58

24

Oil Seal

420831955

$22.72

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Not Available As Spare Part - Friction Washer

Unavailable

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Not Available As Spare Part - Friction Washer

Unavailable

32

Shifting Sleeve Kit | Includes 26a to 29

420257676

$79.20

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

SET SCREW M6 X 8 - Call your local BRP dealership

420841771

$3.57

36

Torx Flange Screw M6 X 85

420641228

$6.11

37

Torx Flange Screw M8 X 55

420641213

$6.11

38

Torx Flange Screw M6 X 35

420440274

$0.83

39

Torx Flange Screw M6 X 55

420440702

$2.54

40

Angle Rotation Sensor

420266168

$182.28

41

Torx Flange Screw M6 X 16

420641048

$2.46

42

Camshft Position Sensor Ass'y

420265727

$108.89

43

Torx Flange Screw M6 X 16

420641048

$2.46

44

O-Ring

420650350

$8.81

45

Plug Screw M14 X 1.5

420241662

$14.37

46

Copper Washer

420250640

$0.81

47

Magnetic Drain Plug M12

420241787

$16.89

48

3 Position Switch

420640192

$41.51

49

Actuator Ass'y 3 pins | Includes 4 to 7

715900614

$263.05

50

O-Ring

293300117

$4.28

51

Shifting Fork

415129175

$14.37

52

Circlip | 4X4

293370042

$3.11

53

Flat Washer 8.4 mm

420250315

$1.09

54

Torx Flange Screw M8 X 25

420440372

$4.00

55

Hex. Nut M8

420842619

$2.75

56

Cable Clamp

420251692

$9.87

57

Gasket Set

420684149

$78.43

58

Gearbox Ass'y

420686654

$2,924.99

B

Not Available As Spare Part - Friction Washer

Unavailable

C

Not Available As Spare Part - Friction Washer

Unavailable

N

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Not Available As Spare Part - Friction Washer

Unavailable

S

Not Available As Spare Part - Friction Washer

Unavailable

T

Not Available As Spare Part - Friction Washer

Unavailable
