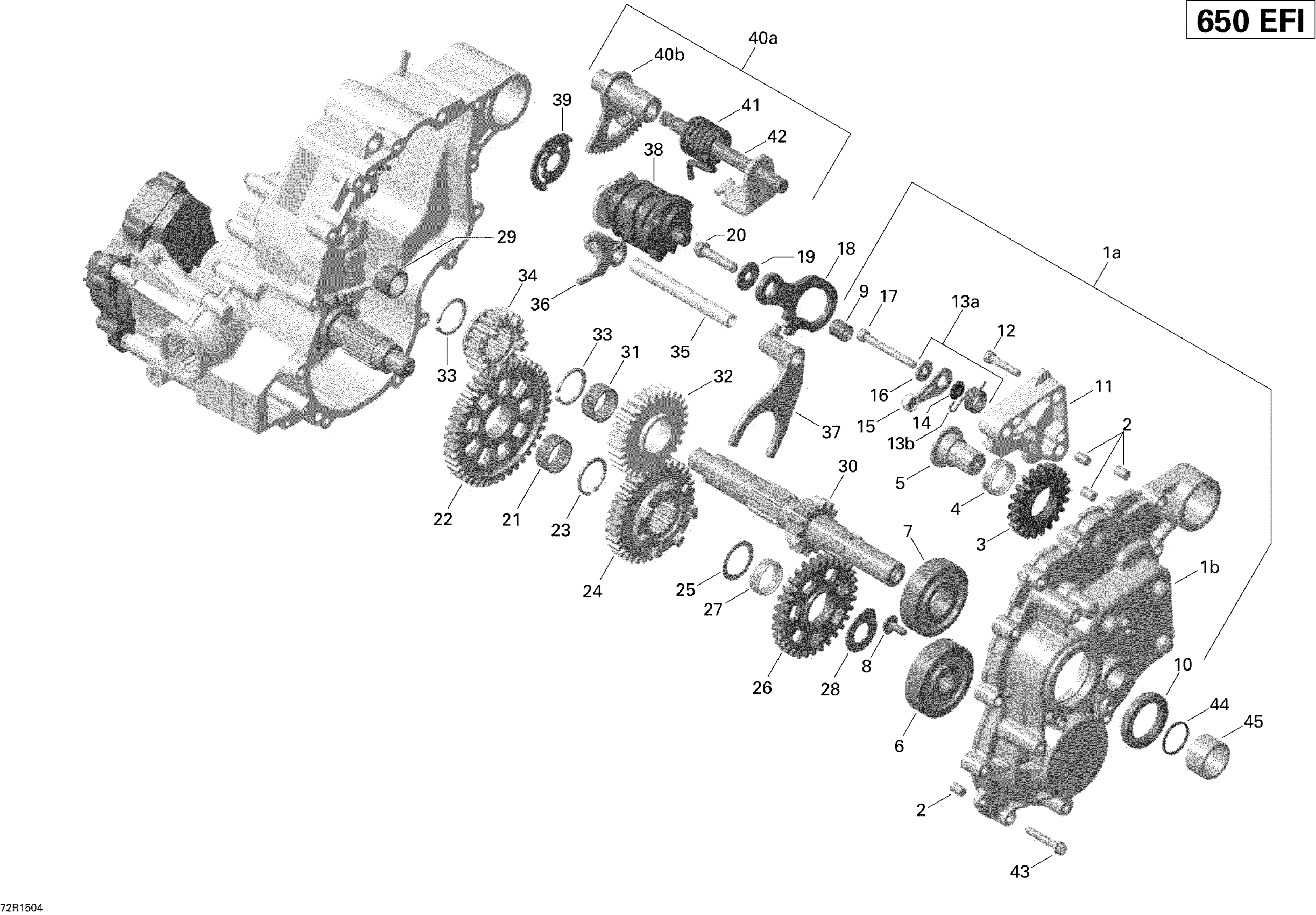

Can-Am Outlander MAX 650 EFI, 2015 Gear Box And Components _72R1504 Diagram

#

Description
Price

1a

LH Gear Housing Ass'y | Includes 1a to 10

420212215

$535.35

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Center Pin 8 X 12

420632010

$3.07

3

Intermedite Gear, 21 Teeth

420434582

$40.74

4

Needle Bearing | See Item 21a

420232654

$19.97

5

Intermedite Gear Shaft

420620681

$50.74

6

Ball Bearing

420632295

$45.35

7

Ball Bearing

420932822

$29.20

8

Torx Screw M6 X 16

420241529

$1.56

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Oil Seal

420950089

$18.43

11

Support

420611451

Unavailable

12

Socket Head Screw M6 X 30

205063044

$1.42

13a

Index Lever Ass'y | Includes 13a to 16

420248530

Unavailable

13b

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Allen Screw M6 X 55

420240332

$4.62

18

Kit Parking Lock Lever Assembly

703501128

$156.89

19

Plain Washer

420227937

$2.75

20

Torx Flange Screw M8 X 35

420641188

$6.11

21

Needle Bearing

420632070

$23.05

22

Pigion Gear, 43 Teeth

420434551

$71.51

23

Retaining Ring

420845772

$6.98

24

Pinion Gear, 35 Teeth

420434547

$95.35

25

Thrust Washer

420427011

$5.52

26

Pigion Gear, 31 Teeth

420434532

$64.58

27

Needle Bearing | See Item 21a

420232654

$19.97

28

Thrust Washer Set, CVT Side

420281302

$83.05

29

Needle Bushing

420832240

$19.97

30

Countershaft, 14 Teeth

420620674

$143.05

31

Needle Bearing

420632070

$23.05

32

Pinion Gear, 28 Teeth

420934102

$71.51

33

Retaining Ring

420845772

$6.98

34

Pigion Gear, 20 Teeth

420434563

$60.74

35

Fork Spindle

420258383

$23.05

36

Shifting Fork

420657311

$87.66

37

Shifting Fork

420657321

$83.05

38

Kit Parking Lock Lever Assembly

703501128

$156.89

39

Isolating Washer

420626092

$6.45

40a

SHIFT SHAFT ASS'Y - Call your local BRP dealership | Includes 40a to 42

420620657

Unavailable

40b

Not Available As Spare Part - Friction Washer

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Torx Flange Screw M6 X 35

420440274

$0.83

44

O-Ring

420631612

$3.52

45

Distance Ring

420647267

$41.51
