Description

Price

1

Flasher Unit

710003239

$78.43

2

Multi-Function Handle

710004040

$166.12

3a

Ignition Switch | Includes 16 to 17

710002324

$77.66

3b

Black, Electronic Key

710000817

$55.35

4

RH Headlamp Ass'y | Includes 11 to 13

710000861

$124.58

5

Headlamp Harness

710000923

$46.12

6

Bulb, 12V 35/35W

710000871

$32.28

7

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

8

LH Headlamp Ass'y | Includes 14 to 16

710000862

$124.58

9

Headlamp Harness

710000923

$46.12

10

Bulb, 12V 35/35W

710000871

$32.28

11

Tail Light Housing Ass'y | Includes 17 to 19

710001204

$55.35

12

Bulb

520000758

$7.49

13

Male Housing, 3 Circuits

515175494

$15.35

14

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

$22.28

15

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

16

FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26

710001495

$37.66

17

Female Terminal

515175231

$4.12

18

Male Terminal | Europe Models

409012900

$3.22

19

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

20

Wire Seal

278001013

$2.72

21

Female Terminal

409010300

$4.12

22

Tubing 6 Mm 3000Mm Long

219704425

$13.14

23

Was 409901700 Tubing (9 mm)

219704399

$79.97

24

Female Terminal Housing, 2 Circuits

515176296

$5.11

25

Socket Head Screw M6 X 25

205062544

$0.88

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

27

Pop Rivet 3/16"

390402400

$0.25

28

BRACKET - Call your local BRP dealership

710001329

Unavailable

29

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26

710001079

$22.28

30

Red Reflector

705011221

$12.32

31

Socket Head Screw M6 X 20

205062044

$1.07

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Oblong Grommet

705003668

$4.54

34

Hex. Flange Elastic Nut M5

233251414

$1.66

35

BRACKET - Call your local BRP dealership

710001330

$13.02

36

FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35

710001080

Unavailable

37

Red Reflector

705011221

$12.32

38

Socket Head Screw M6 X 20

205062044

$1.07

39

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

40

Oblong Grommet

705003668

$4.54

41

Hex. Flange Elastic Nut M5

233251414

$1.66

42

BRACKET - Call your local BRP dealership

710001241

$17.66

43

Horn

710004791

$37.66

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

45

Hex. Flange Screw M6 X 45

207664544

$1.07

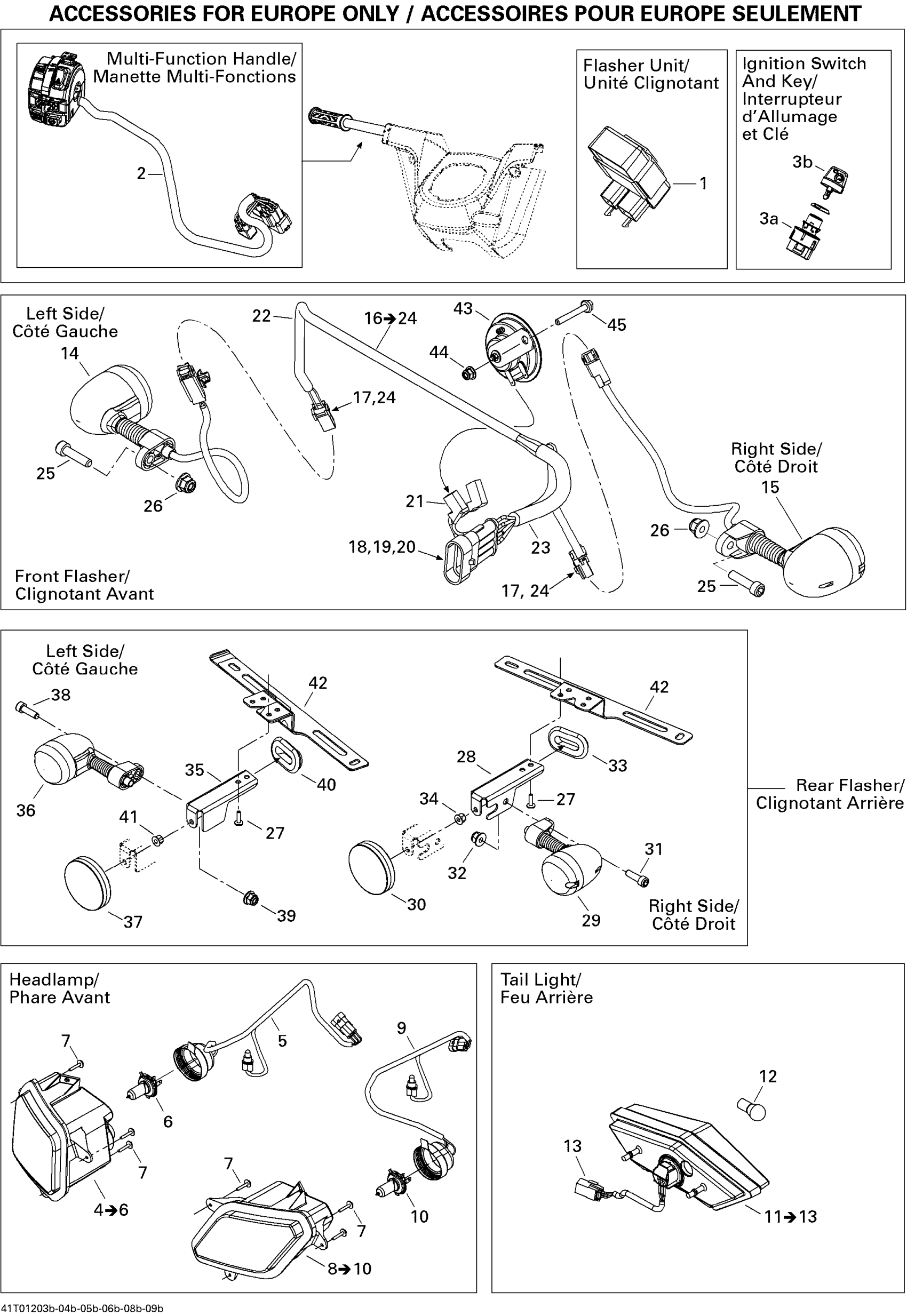

Can-Am Outlander MAX 500EFI STD & XT, 2012 Electrical Accessories Europe Diagram
