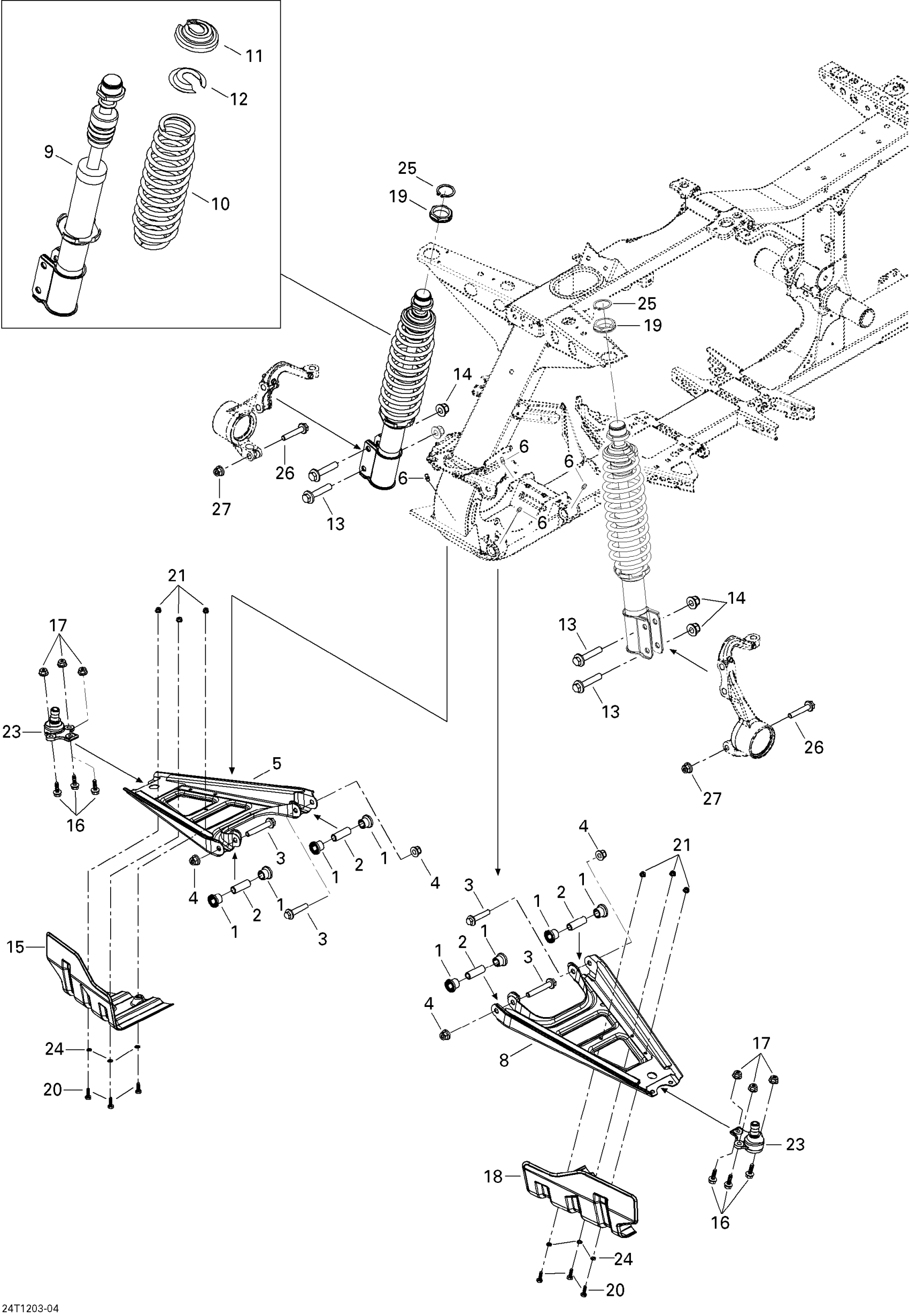

Can-Am Outlander MAX 500EFI STD & XT, 2012 Front Suspension Diagram

#

Description
Price

1

Bushing

706200181

$3.68

2

Sleeve

706201587

$4.60

3

Hex. Flange Screw M10 X 70

207607046

$2.91

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Suspension Arm

706205905

$156.89

6

Grease Fitting

408200700

$2.80

8

Suspension Arm

706205905

$156.89

9

Front Shock

706201108

$153.05

10

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | XT

706200824

$101.51

10

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership | STD

706200825

$99.20

11

STOPPER SPRING - Call your local BRP dealership

706200882

Unavailable

12

Cap

706200793

$4.42

13

Hex. Flange Screw M12 X 60

207626046

$6.08

14

Hex. Flange Elastic Nut M12

233221414

$5.10

15

RH PROTECTOR - Call your local BRP dealership | 4X4

706200214

$9.52

16

Hex. Flange Screw M8 X 25

207682544

$0.90

17

Hex. Flange Elastic Nut M8

233281414

$1.14

18

LH PROTECTOR - Call your local BRP dealership | 4X4

706200213

Unavailable

19

NUT - Call your local BRP dealership

706200443

$10.82

20

Hex. Screw M5 X 16 | 4X4

207151644

$0.74

21

Hex. Flange Elastic Nut M5

233251414

$1.66

23

Joint Attachment

706200444

$46.12

24

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

25

Circlip 32 mm

293370009

$1.49

26

HEX. FLANGED SCREW M10 X 45 - Call your local BRP dealership

207604544

Unavailable

27

Hex. Flange Elastic Nut M10

233201414

$1.26
