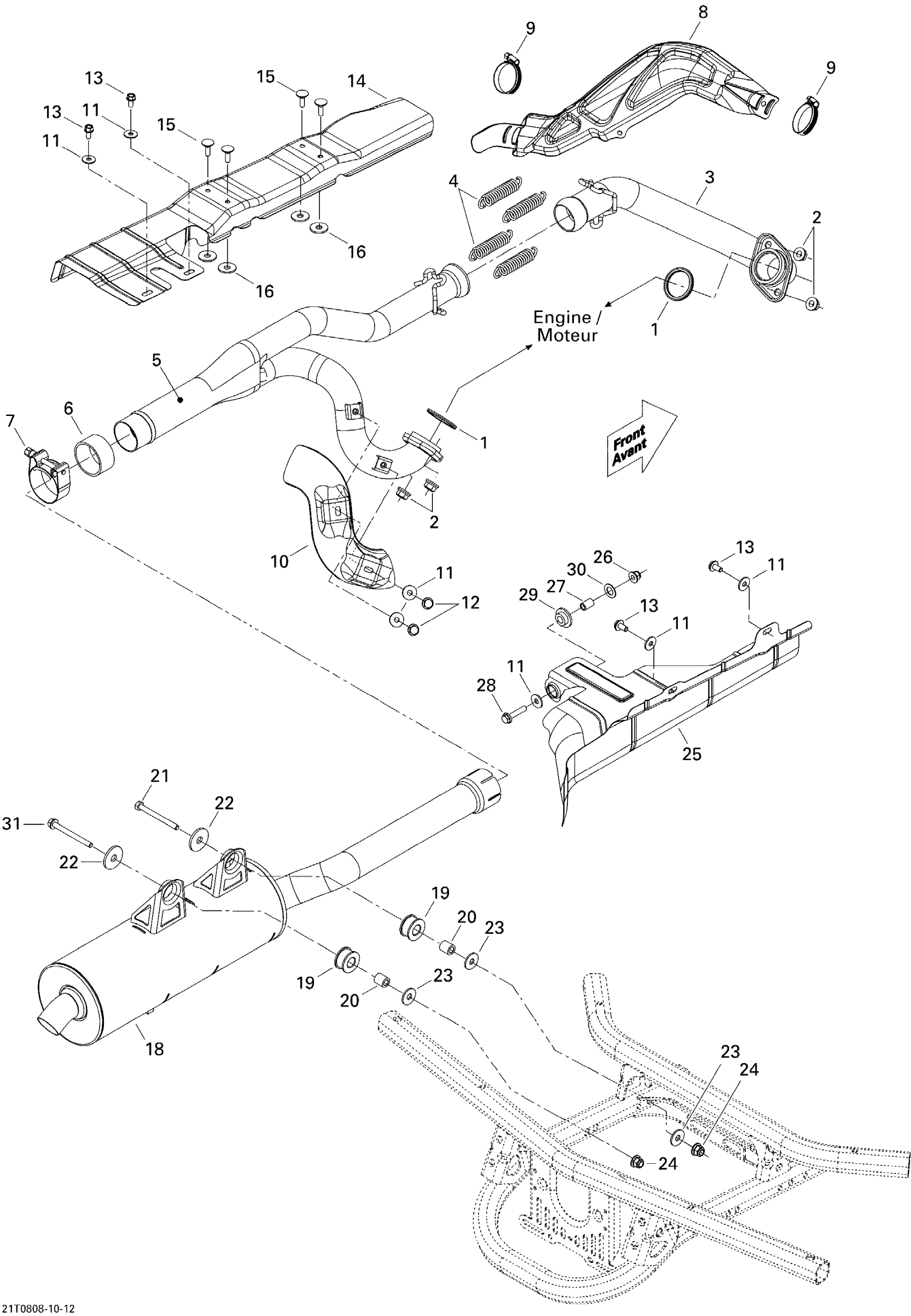

Can-Am Outlander MAX 500 XT, 2008 Exhaust System Diagram

#

Description
Price

1

Gasket

707600317

$11.49

2

Hex. Flange Nut M8

233081416

$1.87

3

FRONT TUNED PIPE - Call your local BRP dealership

707600529

Unavailable

4

Spring

415107100

$6.49

5

REAR TUNED PIPE - Call your local BRP dealership

707600530

Unavailable

6

Pipe Gasket

707600430

$19.49

7

Norma Gear Clamp

293650177

$10.49

8

Heat Shield

707600889

$36.99

9

Norma Gear Clamp

293650098

$4.49

10

PROTECTOR - Call your local BRP dealership

707600615

Unavailable

11

Flat Washer

250200082

$1.49

12

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

13

Hex. Flange Screw M6 X 12

210261250

$1.99

14

HEAT SHIELD - Call your local BRP dealership

707600567

Unavailable

15

Pop Rivet 3/16"

390406500

$1.49

16

Washer

517124300

$1.49

18

MUFFLER_EXHAUST - Call your local BRP dealership

707600575

Unavailable

18

MUFFLER_EXHAUST - Call your local BRP dealership | Europe

707600577

Unavailable

19

Vibration Damper

707603323

$11.65

20

Bushing

293900106

$4.69

21

Hex. Screw M8 X 70

207087044

$2.29

22

Washer

503032900

$3.39

23

Flat Washer 8 mm

234082410

$1.49

24

Hex. Flange Elastic Nut M8

233281414

$1.49

25

Protector

707600621

$60.49

26

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

27

Sleeve

293900078

$13.71

28

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.19

29

Grommet

705003932

$2.89

30

Washer

503175800

$3.39

31

Hex. Flange Screw M8 X 70

207687044

$7.59
