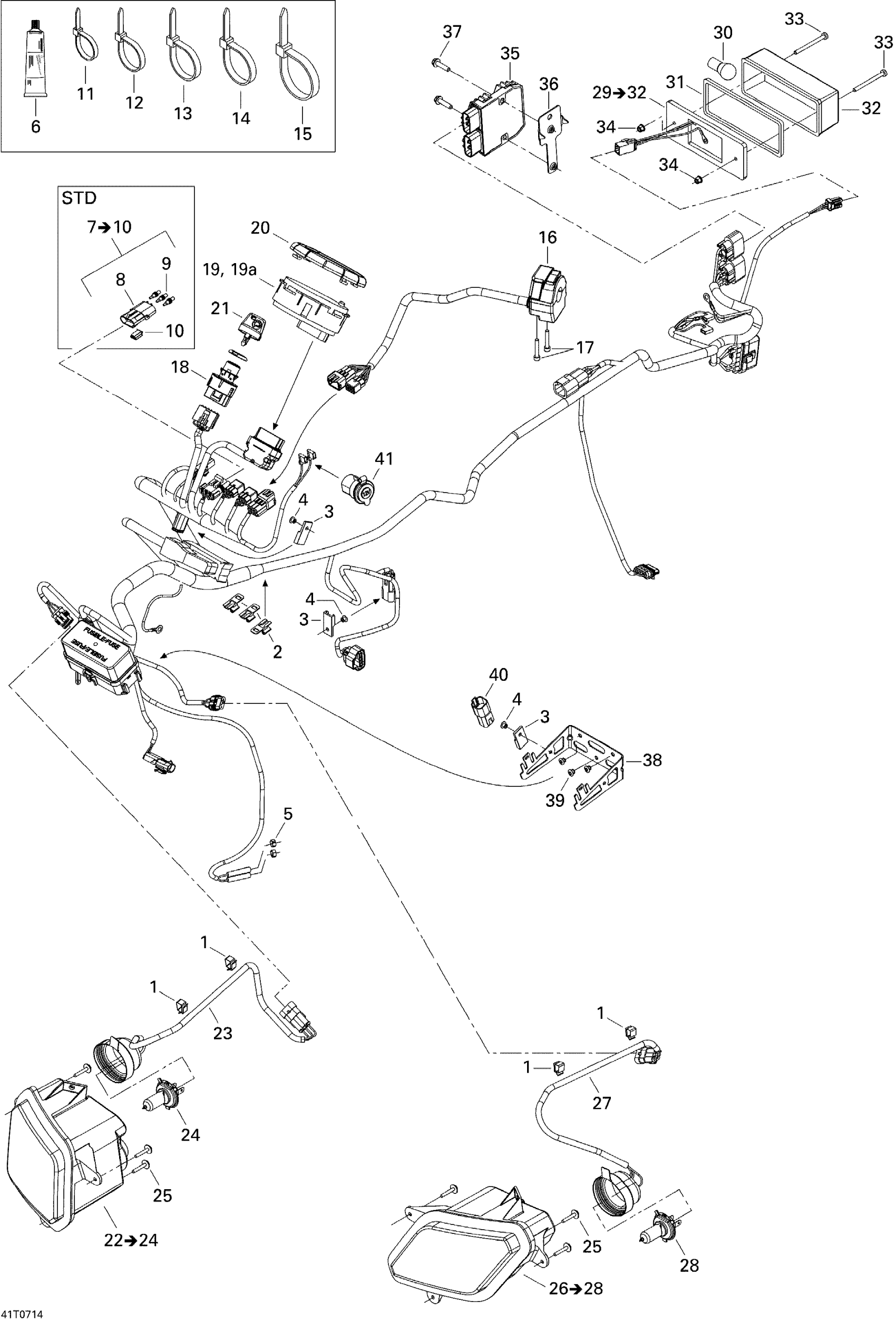

Can-Am Outlander MAX 500 STD 4 X 4, 2007 Electrical Accessories STD Diagram

#

Description
Price

1

Clip

414227300

$1.45

2

Housing Support

515175283

$8.43

3

Clip

270000141

$8.33

4

Pop Rivet 3/16"

390402400

$0.25

5

Oetiker Clamp

293650100

$2.74

6

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

7

Connector Ass'y | STD / Includes 7 to 10

710000917

$12.91

8

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

9

Wire Seal

278000216

$2.55

10

Clip

710000992

$4.00

11

Tie Wrap 94 mm | 4X4

293750001

$0.83

12

Tie-Rap 173 mm

293750009

$0.85

13

Tie-Rap 180 mm

414115200

$0.09

14

Tie Wrap 368 mm

293750008

$0.85

15

Tie-rap 627 mm

293750041

$0.91

16

Multi-Fonction Handle

710000791

$115.35

17

Socket Head Screw M5 X 35

205053588

$1.56

18

Ignition Switch | Includes 16 to 17

710002324

$77.66

19

SPEEDOMETER - Call your local BRP dealership

710001060

Unavailable

19a

REMPLACEMENT LENS, SPEEDOMETER - Call your local BRP dealership

415128938

Unavailable

20

TRIM RING - Call your local BRP dealership

710000353

Unavailable

21

Black, Electronic Key

710000817

$55.35

22

RH Headlamp Ass'y | Includes 20 to 22

710001496

$87.66

23

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

24

Bulb, 12V 35/35W

710000871

$32.28

25

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

26

LH Headlamp Ass'y | Includes 24 to 26

710001497

$87.66

27

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

28

Bulb, 12V 35/35W

710000871

$32.28

29

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$92.28

30

Bulb

520000758

$7.49

31

GASKET - Call your local BRP dealership

710000129

$8.43

32

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

33

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

$0.91

34

Hex. Flange Elastic Nut M5

233251414

$1.66

35

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

36

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

37

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

38

FUSE SUPPORT - Call your local BRP dealership

710002176

Unavailable

39

Pop Rivet 3/16"

390402400

$0.25

40

Diagnostic Connector

278002704

$15.57

41

Outlet Power Kit, 12 Volts

861507200

$30.52
