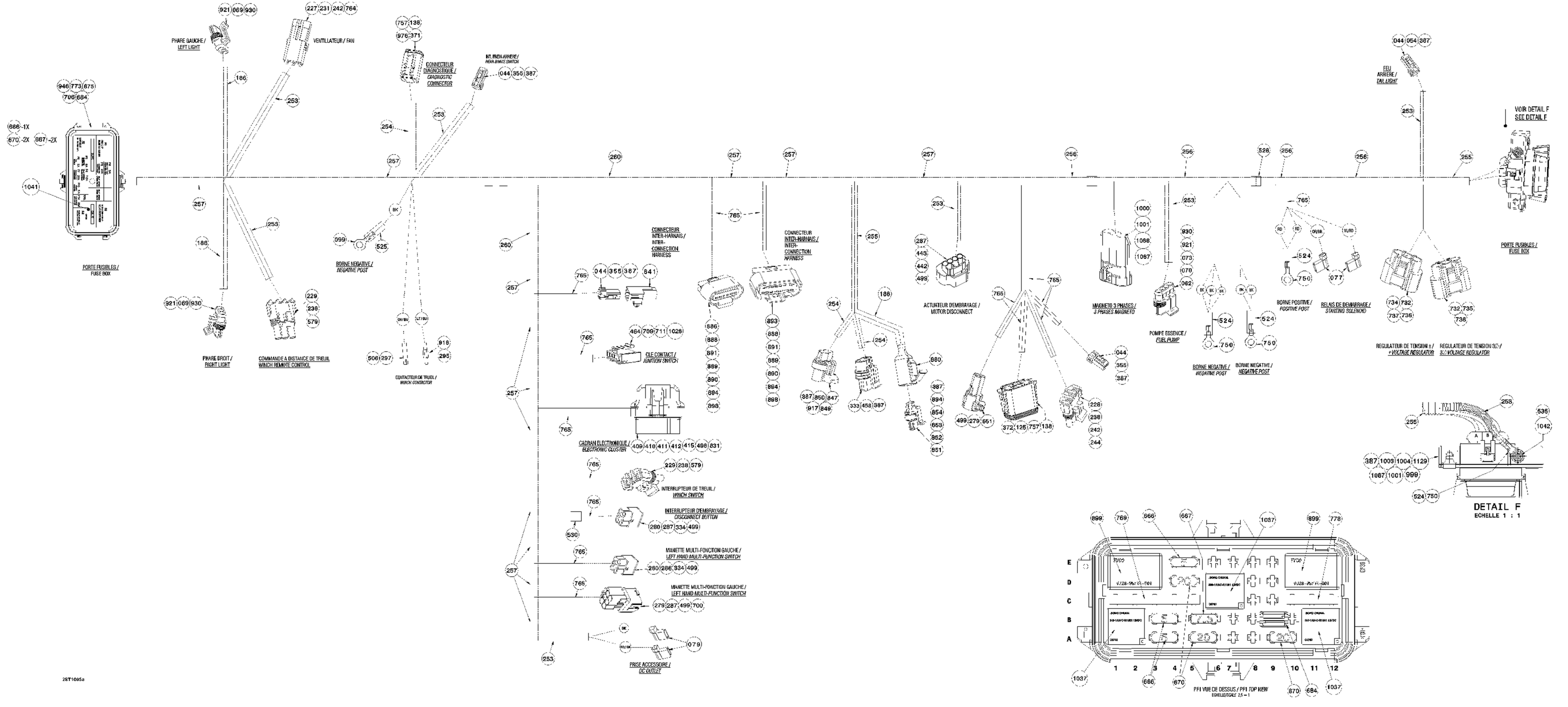

Can-Am Outlander Max 500 EFI Ltd, 2010 Main Harness 500 EFI Diagram
#
1
Main Harness Ass'y | Includes 1 to 1088
710001677
Unavailable
44
Female Terminal
515175231
Unavailable
62
Female Terminal
278001014
Unavailable
69
Female Housing, 3 Circuits
409209600
Unavailable
70
Female Housing, 4 Circuits
409209700
Unavailable
73
Wire Seal
278001013
Unavailable
138
Sealing Cap
293000052
Unavailable
186
Vinyl Tubing, Low Temp 3000Mm Long
219704424
Unavailable
229
Female Terminal
278000223
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
238
Male Housing, 3 Circuits
278000273
Unavailable
242
Wire Seal
278000218
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
260
Was 515175319 Tubing 22 mm
219704423
Unavailable
280
Female Terminal
409012100
Unavailable
286
Seal
409012300
Unavailable
287
Cap
710000080
Unavailable
295
Insulated Sheath
278001008
Unavailable
297
Insulated Sheath
278001007
Unavailable
334
Female Housing, 6 Circuits
710000081
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
442
Male Housing, 4 Circuits
710000329
Unavailable
458
Female Terminal
710000357
Unavailable
484
Seal
415128501
Unavailable
498
Female Housing
710000399
Unavailable
506
Female Terminal
710000421
Unavailable
524
Heat Shrink Tubing 25 mm
512059668
Unavailable
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
641
Male Housing, 2 Circuits
710000667
Unavailable
666
Little Fuse, 5 Amperes
710000742
Unavailable
670
Little Fuse, 20 Amperes
710000746
Unavailable
700
Male Terminal Housing, 6 Circuits
710000835
Unavailable
709
Lock
710000848
Unavailable
711
Male Housing, 6 Circuits
710000849
Unavailable
432
Female Terminal
710000877
Unavailable
734
Female Housing, 3 Circuits
710000879
Unavailable
735
Housing, 3 Circuits
710000880
Unavailable
736
Seal
710000881
Unavailable
750
Terminal
710000913
Unavailable
757
Female Terminal
278001665
Unavailable
769
Bus Bar
278002165
Unavailable
778
Bus Bar
278002165
Unavailable
831
Female Terminal
710001131
Unavailable
847
HOUSING - Call your local BRP dealership
710001315
Unavailable
849
Wire Seal
710001159
Unavailable
850
Female Terminal
710001160
Unavailable
853
Wire Seal
710001163
Unavailable
854
Female Terminal
710001164
Unavailable
888
Seal
710001230
Unavailable
889
Seal
710001233
Unavailable
893
Housing
710001226
Unavailable
894
Cap
710001225
Unavailable
899
Relay, 30 AMP | Obsolete. ATV order 515176774
278002168
Unavailable
917
Lock
710001323
Unavailable
918
Female Terminal
278002261
Unavailable
921
Female Terminal
710001340
Unavailable
930
Wire Seal
515176621
Unavailable
946
Foam
278002172
Unavailable
976
MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership
710001540
Unavailable
999
Not Available As Spare Part - Friction Washer
Unavailable
1000
HOUSING - Call your local BRP dealership
710001634
Unavailable
1028
Terminal | Canada/Usa
710001635
Unavailable
1037
Relay
715900824
Unavailable
1040
Fuse Box
710001711
Unavailable
1042
Elastic Flange Nut M5
233251494
Unavailable
