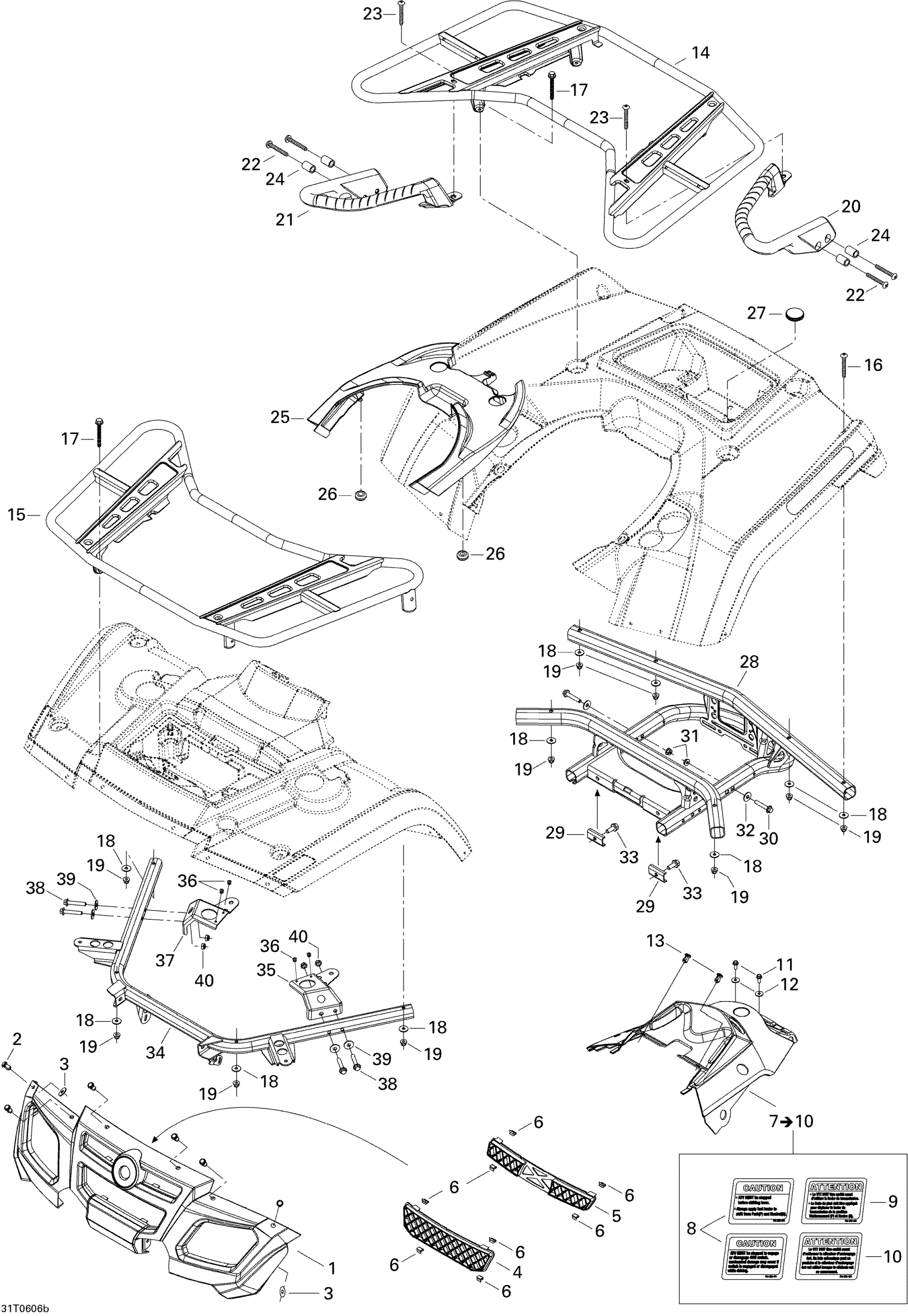

Can-Am Outlander MAX 400 XT 4 X 4, 2006 Body And Accessories Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

$63.05

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

$48.43

1

FRONT FASCIA, GREEN - Call your local BRP dealership | Laurentian Green

705001992

$46.89

2

Tuflok Plastic Rivet

293150230

Unavailable

3

Flat Washer 8 mm

234082410

$1.11

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

$9.20

6

Clip | Europe Models

517306751

Unavailable

7

Console, Viper Red | Includes 4 to 7 / Viper Red

703500266

$59.97

7

Console, Laurentian Green | Includes 4 to 7 / Laurentian Green

703500267

$36.89

7

Console, Yellow | Includes 4 to 7 / Yellow

703500330

$59.97

8

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

9

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

10

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

11

Hex. Flange Screw M6 X 16

210261650

$1.22

12

Flat Washer

250200082

Unavailable

13

Tuflok Plastic Rivet

293150230

Unavailable

14

Rear Luggage Rack

705002617

$267.66

15

Front Luggage Rack

705002616

$267.66

16

Torx Truss Screw M6 X 50

250000749

Unavailable

17

Hex. Flange Screw M6 X 50

207665044

Unavailable

18

Flat Washer

224061201

Unavailable

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

20

LH Handle

705001944

Unavailable

21

RH Handle

705001945

Unavailable

22

Hex Torx Truss M8 X30

250000745

Unavailable

23

Torx Truss Screw M8 X 16

250000746

$2.78

24

Bushing

705002153

$11.06

25

RED STORAGE TRAY - Call your local BRP dealership | Viper Red

705002954

Unavailable

25

YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow

705002952

$29.97

25

STORAGE TRAY, GREEN - Call your local BRP dealership | Laurentian Green

705002953

Unavailable

26

Oval Washer

705005156

Unavailable

27

CAP - Call your local BRP dealership

414859400

$2.78

28

Rear Support

705003656

$267.66

29

U Reinforcement

705003647

$6.92

30

Hex. Flange Screw M8 X 50

207685044

Unavailable

31

Hex. Flange Elastic Nut M8

233281414

Unavailable

32

Flat Washer 8 mm

234082410

$1.11

33

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

34

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

35

LH ANCHOR PLATE - Call your local BRP dealership

705000692

$13.83

36

Pop Rivet 3/16"

390402300

Unavailable

37

RH Anchor Plate

705002997

$16.89

38

Hex. Flange Screw M8 X 45

207684544

Unavailable

39

Flat Washer 8 mm

234082410

$1.11

40

Hex. Elastic Stop Nut M8

232581414

Unavailable
