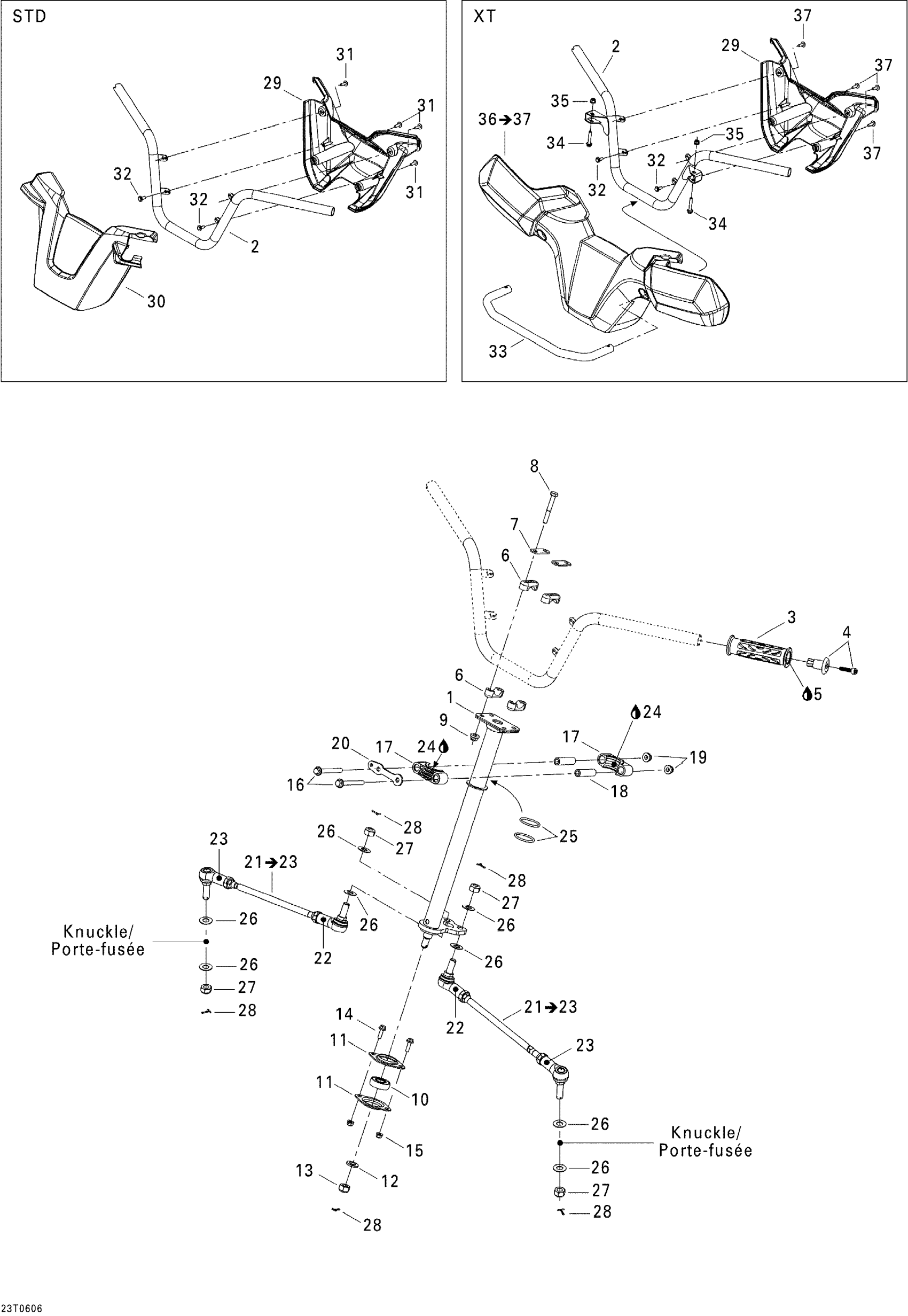

Can-Am Outlander MAX 400 XT 4 X 4, 2006 Steering System, XT Diagram
#
Description
Price
1
Main Tube
709401056
Unavailable
2
HANDLEBAR PROT - Call your local BRP dealership | XT
715000271
Unavailable
3
Handle Grip
709400493
Unavailable
4
END-PIECE - Call your local BRP dealership | DS 650
709400189
Unavailable
6
Steering Support
709400919
Unavailable
7
Stiffner
709400509
Unavailable
9
Hex. Elastic Flange Nut M8
233281416
Unavailable
10
Ball Bearing
709400439
Unavailable
11
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
13
Hex. Flange Elastic Nut M12
250000047
Unavailable
15
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
16
Hex. Flange Screw M8 X 70
207687044
Unavailable
17
Half Bushing
709400471
Unavailable
18
BUSHING - Call your local BRP dealership
709400072
Unavailable
19
Hex. Flange Elastic Nut M8
233281414
Unavailable
20
STOPPER PLATE - Call your local BRP dealership
709400053
Unavailable
21
Tie Rod Ass'y | Includes 21 to 23
709400190
Unavailable
22
Ball Joint, RH Threads
709400487
Unavailable
23
LH Ball Joint
709402303
Unavailable
24
Synthetic Grease, 400 G
293550010
Unavailable
26
Hardened Washer
706200281
Unavailable
27
Nut M12
250100099
Unavailable
28
Cotter Pin
211400013
Unavailable
29
BLACK REAR STEERING COVER - Call your local BRP dealership
709400313
Unavailable
30
Not Available As Spare Parts
XXX
Unavailable
31
Not Available As Spare Parts
XXX
Unavailable
32
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
33
Accessories Support | XT
709400256
Unavailable
35
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
36
HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT
703100217
Unavailable
