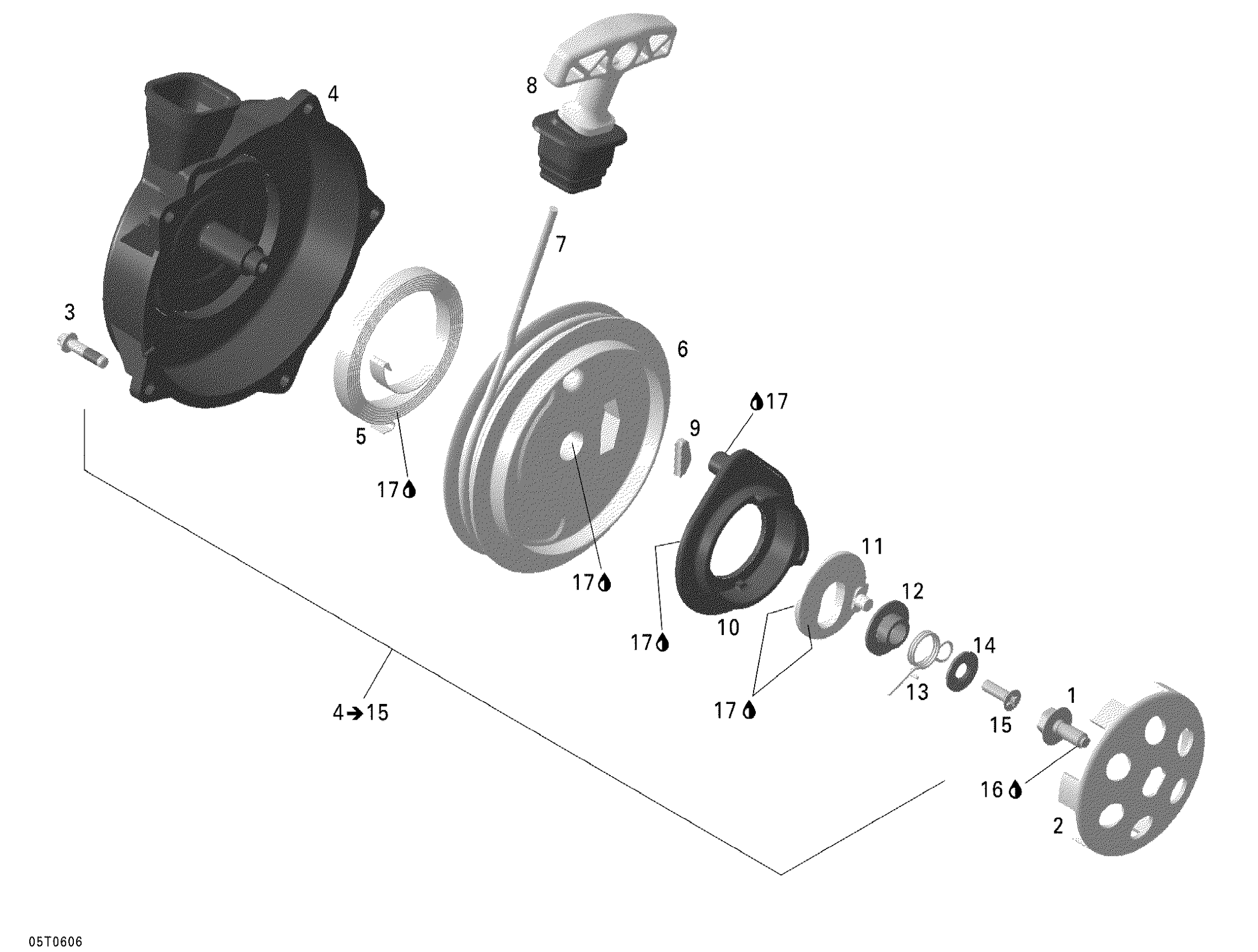

Can-Am Outlander MAX 400 XT 4 X 4, 2006 Rewind Starter Diagram
#
Description
Price
1
Hex. Collar Screw M8 X 20 | 330HO
420241721
Unavailable
2
Starting Pulley
420852501
Unavailable
6
Rope Sheave
420852283
Unavailable
7
Was 412500100 Rope-Starter
219704403
Unavailable
8
Starting Grip With Rubber Buffer
420852555
Unavailable
9
Key Clamp
420852070
Unavailable
10
Pawl
420852299
Unavailable
11
Lock Pawl
420852306
Unavailable
12
STAGE SLEEVE - Call your local BRP dealership
420847927
Unavailable
13
Locking Spring
420938989
Unavailable
14
Flat Washer
420244320
Unavailable
15
PLASTITE SCREW M6 X 20 - Call your local BRP dealership
420241730
Unavailable
17
Molykote PG 54, 10 g
420899763
Unavailable
