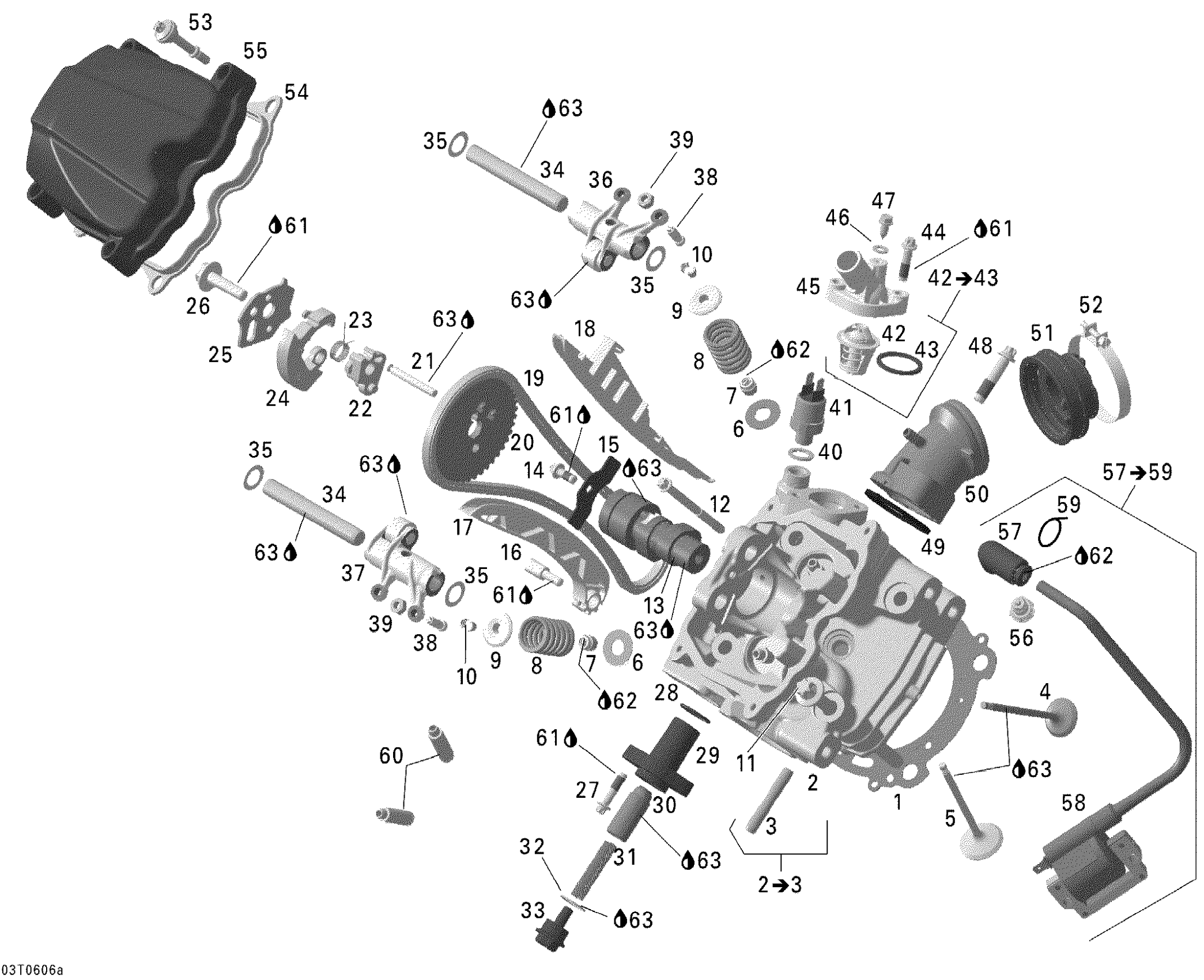

Can-Am Outlander MAX 400 XT 4 X 4, 2006 Cylinder Head Diagram

#

Description
Price

1

Cylinder Head Gasket | 400HO

420630195

$78.43

2

Cylinder Head | Includes 2 to 3

420413397

$679.99

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Stud M8 x 26

420941014

$10.58

4

Intake Valve 31MM

420254359

$35.35

5

Exhaust Valve 27MM

420254368

$68.43

6

Thrust Washer

420627525

$1.50

7

Valve Stem Seal

420230515

$11.89

8

Valve Spring

420239295

$13.58

9

Valve Spring Retainer

420254132

$13.58

10

Cotter Valve

420254120

$4.00

11

Torx Screw M10X140

420641551

$13.58

12

Torx Flange Screw M6 X 85

420641228

$6.11

13

Camshaft

420620011

$396.89

14

Torx Flange Screw M6 X 16

420440162

$3.11

15

Holding Strip

420627743

$17.66

16

Bearing Screw M6

420240943

$4.29

17

Chain Tension Guide

420436015

$23.82

18

Chain Guide

420236584

$7.31

19

Silent Chain

420297063

$63.82

20

Camshaft Sprocket

420254434

$36.12

21

Deko Shaft | 400HO

420620120

$18.43

22

Spacer | 400HO

420231080

$18.43

23

Deko Torsion Spring | 400HO

420238270

$4.60

24

Centrifugal Weight | 400HO

420231070

$17.66

25

Deko Washer | 400HO

420231090

$11.98

26

Hex. Collar Screw M8 X 32 | 400HO

420641820

$16.89

27

Hex. Screw M6 X 25

420240034

$1.56

28

O-Ring

420430373

$2.63

29

Chain Tensioner Housing

420236510

$11.09

30

Chain Tensioner Plunger

420236521

$14.48

31

Spring

420238120

$7.23

32

O-Ring

420250890

$2.50

33

Plug Screw

420641150

$7.23

34

Pin #12, Small, M6 X 90

420229712

$15.35

35

Shim

420944382

$4.00

36

Inlet Rocker Arm

420254907

$138.43

37

Exhaust Rocker Arm

420254911

$141.51

38

Adjustment Screw M6 X 0.75

420241337

$4.89

39

Hex Nut M6

420242913

$0.52

40

Copper Washer

420250640

$0.81

41

Temperature Switch

420897938

Unavailable

42

Thermostat 65° With Gasket Ass'y | Includes 42 to 43

420222494

$50.74

42

Not Available As Spare Part - Friction Washer

Unavailable

43

Thermostat Gasket

420650300

$8.34

44

Torx Flange Screw M6 X 25

420440234

$3.00

45

Thermostat Cover

420222696

$3.09

46

Gasket Ring

420650255

$4.00

47

Screw M5 X 16

420441621

$3.11

48

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

$7.80

49

Gasket

420630640

$3.85

50

Intake Flange Ass'y

420267386

$36.89

51

Intake Neck

420267340

$16.89

52

Clamp

420251480

$13.58

53

Hex Screw M6 X 30

420440568

$7.10

54

Gasket

420630260

$8.34

55

Valve Cover

420610393

$26.12

56

Spark Plug, NGK DCP-R8E

715900637

$5.66

57

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

$133.05

57

Spark Plug Connector

420265248

$31.51

58

Not Available As Spare Part - Friction Washer

Unavailable

59

Not Available As Spare Part - Friction Washer

Unavailable

60

Valve Guide

420254374

$28.99

61

Loctite 243, 10 ml

293800060

$20.77

62

Grease, Super Lube

293550030

$24.67

63

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable
