- Outlander MAX 400 STD 4 X 4, 2006
Drive System, Rear, STD

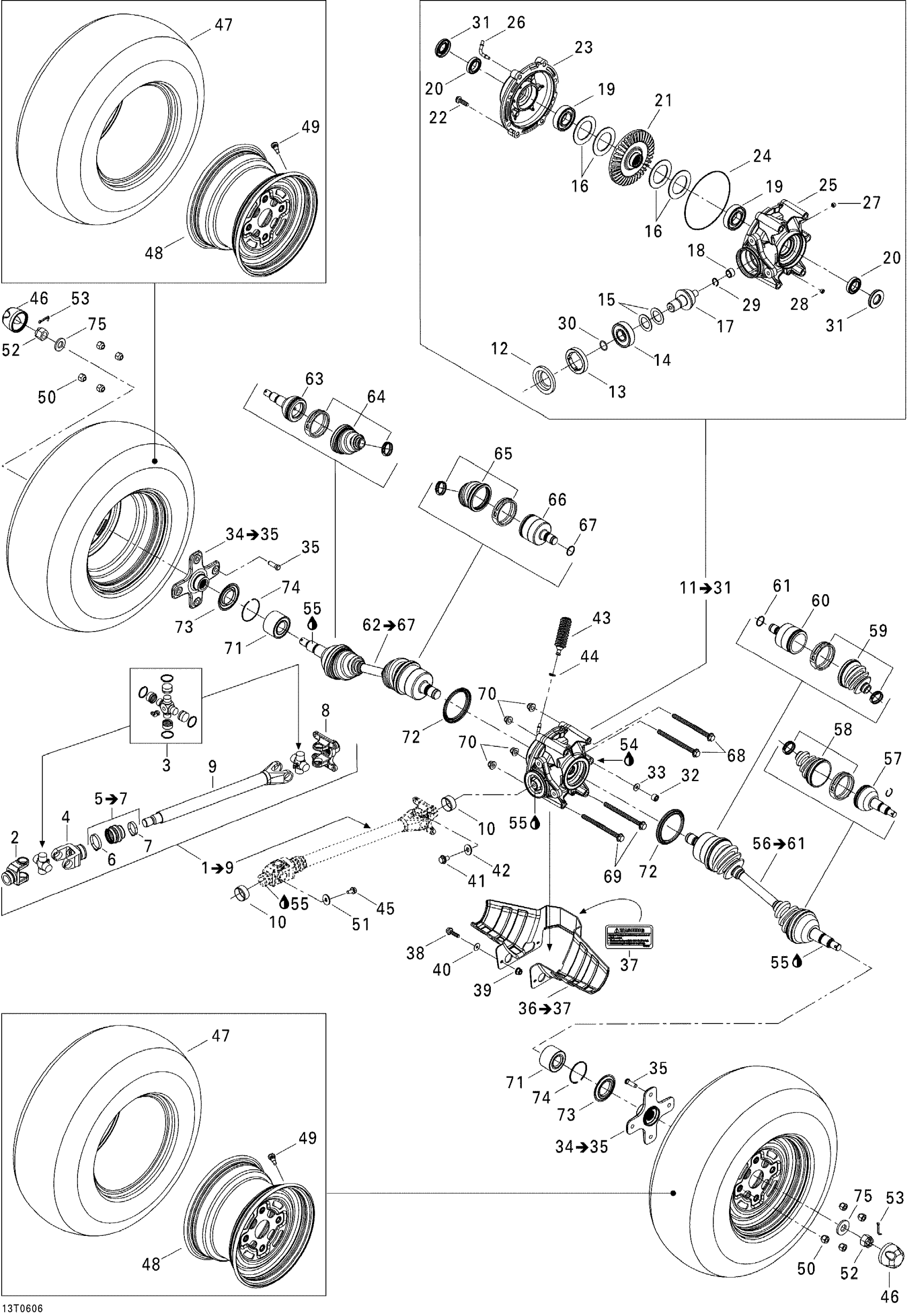

Can-Am Outlander MAX 400 STD 4 X 4, 2006 Drive System, Rear, STD Diagram
#
4
Slip Joint
705500762
Unavailable
5
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
6
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
7
Collar | 4X4
705400148
Unavailable
8
DISC JOINT - Call your local BRP dealership
705500351
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Wear Ring | 4X4
705400036
Unavailable
11
Rear Differential Ass'y | Includes 11 to 31
705500774
Unavailable
12
Oil Seal | 4X4
705401481
Unavailable
13
Nut | 4X4
705401603
Unavailable
14
Ball Bearing | 4X4
705500260
Unavailable
15
Pinion Gear Shim 1.67 mm
705502061
Unavailable
16
Differential Shim 0.02 mm
705502060
Unavailable
17
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
18
Needle Bearing | 4X4
705500261
Unavailable
19
Ball Bearing
705502737
Unavailable
20
BALL BEARING - Call your local BRP dealership
705500750
Unavailable
21
GEAR, 36 TOOTH - Call your local BRP dealership
705500775
Unavailable
22
Screw | 4X4
705401601
Unavailable
25
Rear Differential Housing
705500699
Unavailable
27
PROTECTION PLUG - Call your local BRP dealership
705500516
Unavailable
30
O-Ring | 4X4
705500267
Unavailable
31
Oil Seal
705501996
Unavailable
32
Fill Level Plug | 4X4
705500504
Unavailable
33
Copper Washer | 4X4
705500506
Unavailable
34
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
35
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
37
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership
704900766
Unavailable
38
Hex. Flange Screw M6 X 25
207662544
Unavailable
39
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
40
Flat Washer
250200082
Unavailable
41
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
43
Rubber Bellow | 4X4
705400552
Unavailable
44
Oetiker Clamp
293650042
Unavailable
45
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
46
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
47
Rear Tire | STD
705500441
Unavailable
48
REAR RIM, GREY - Call your local BRP dealership | STD
705500622
Unavailable
48
REAR RIM, GREY - Call your local BRP dealership | STD
705500622
Unavailable
49
Rim Valve With Cap
705400193
Unavailable
50
Steel Wheel Nut
250100042
Unavailable
51
Washer
211200041
Unavailable
52
Hex. Flange Castellated Nut M18
232291413
Unavailable
54
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
55
Synthetic Grease, 400 G
293550010
Unavailable
56
LH CV Joint | Includes 56 to 61
705500738
Unavailable
58
BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62
705500469
Unavailable
61
CIRCLIP - Call your local BRP dealership
705500845
Unavailable
62
RH CV Joint | Includes 62 to 67
705500739
Unavailable
64
BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62
705500469
Unavailable
67
CIRCLIP - Call your local BRP dealership
705500845
Unavailable
68
Hex. Flange Screw, M10 X 130
230603046
Unavailable
69
Hex. Flange Screw M10 X 135
230603546
Unavailable
70
Hex. Flange Elastic Nut M10
233201436
Unavailable
71
Ball Bearing
293350150
Unavailable
74
Circlip
293370019
Unavailable
75
Conical Spring Washer M18
250200171
Unavailable
