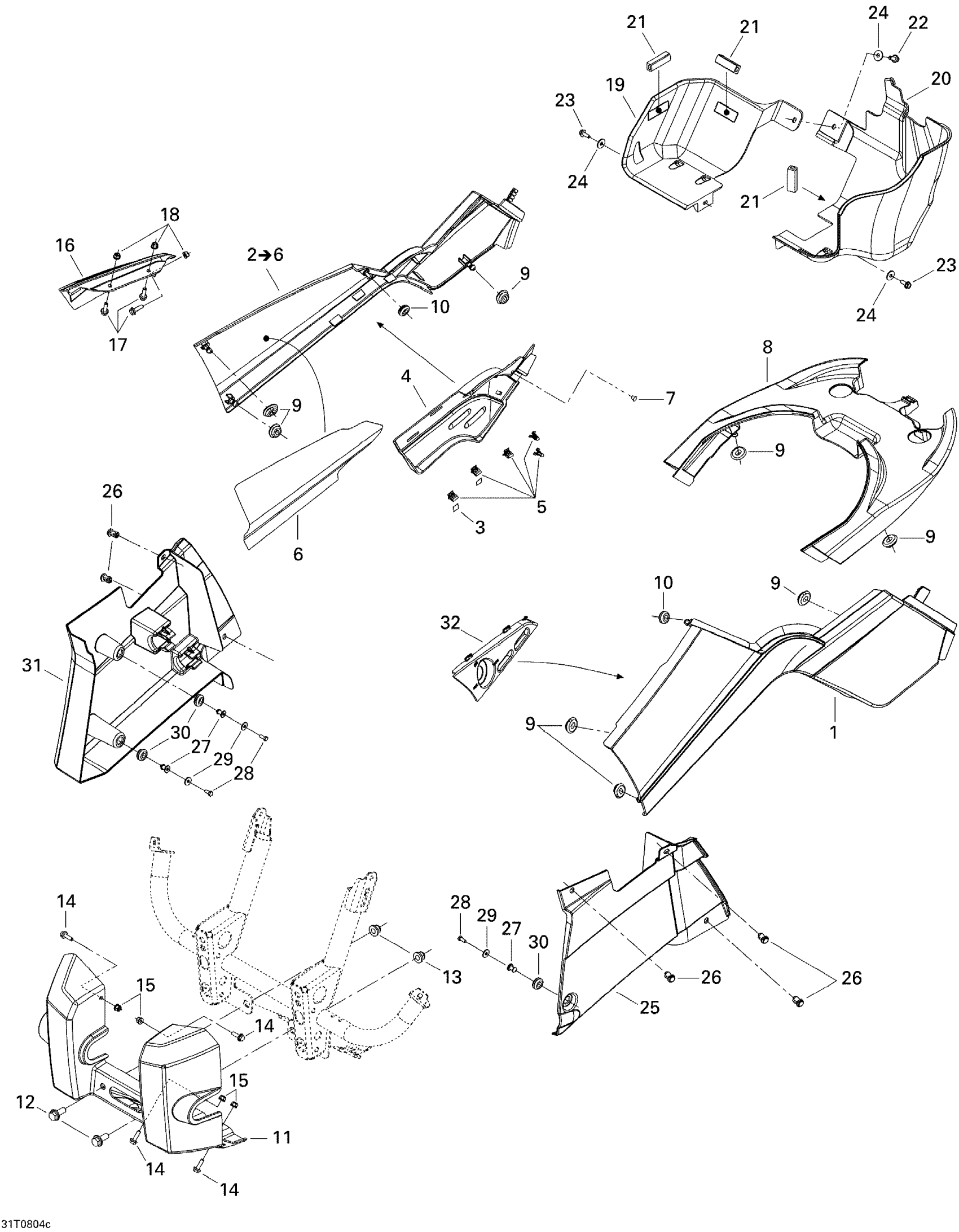

Can-Am Outlander MAX 400 STD, 2008 Body And Accessories 3, STD Diagram

#

Description
Price

1

PANEL_BODY LH B-176 - Call your local BRP dealership

705003484

$42.28

1

LH PANEL, LAURENTIAN GREEN - Call your local BRP dealership

705000915

Unavailable

1

PANEL_BODY LH B-190 - Call your local BRP dealership

705003483

Unavailable

2

RH Panel, Viper Red | Includes Item 3, 5, and 7

703500411

Unavailable

2

RH Panel, Laurentian Green | Includes Item 3, 5, and 7

703500412

Unavailable

2

RH Panel, Yellow | Includes Item 3, 5, and 7

703500413

Unavailable

3

Heat Shield | Europe

517305451

$2.18

4

MUFFLER COVER - Call your local BRP dealership

705001685

Unavailable

5

Edge Clip

517302785

$0.70

6

REFLECTIVE SHEET - Call your local BRP dealership

705000750

$8.68

7

Rubber Bumper

293830005

$5.33

8

RED STORAGE TRAY - Call your local BRP dealership | Viper Red

705002954

Unavailable

8

YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow

705002952

$29.97

8

STORAGE TRAY, GREEN - Call your local BRP dealership | Laurentian Green

705002953

Unavailable

9

Oval Washer

705005156

$4.85

10

Grommet

705003264

$3.43

11

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

12

Hex. Flange Screw M10 X 25

207602544

$1.33

13

Hex. Flange Elastic Nut M10

233201414

$1.26

14

Hex. Flange Screw M6 X 20

207662044

$1.66

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

LEVER INDICATOR - Call your local BRP dealership

705001529

$14.65

17

Hex. Flange Screw M6 X 20

207662044

$1.66

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

19

RH TANK PROTECTOR - Call your local BRP dealership

705000554

Unavailable

20

LH TANK PROTECTOR - Call your local BRP dealership

705002176

$21.35

21

Was 293200017 Neoprene Seal

219704365

$118.27

22

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

23

Hex. Flange Screw M6 X 12

210261250

$1.56

24

Flat Washer

250200082

$0.35

25

LH Inner Fender

705000652

$36.89

26

Tuflok Plastic Rivet

293150230

$1.21

27

Knob

517303439

$3.73

28

Torx Screw K50 X 16

250000720

$1.39

29

Washer | DS 650 X

391301600

$0.48

30

Grommet

709000582

$4.38

31

INNER FENDER - Call your local BRP dealership

705002640

Unavailable

32

VALVE SUPPORT - Call your local BRP dealership

705001691

$10.26
