Description

Price

1

Hex. Flange Screw M10 X 55

207605544

$2.78

2

Elastic Stop Nut M18

232591414

$3.48

3

Hex. Flange Elastic Nut M10

233201414

$1.26

4

Washer

250200045

$7.37

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

Ball Bearing

293350037

$128.43

7

Circlip 45 mm

293370027

$4.98

8

Circlip

293370041

$9.98

9

Oetiker Clamp

293650162

$8.45

12

PROTECTOR - Call your local BRP dealership

503190436

$13.83

13

Nut

706000221

$23.05

14

LH PROTECTOR - Call your local BRP dealership

706000333

$14.06

15

RH PROTECTOR - Call your local BRP dealership

706000334

$14.06

16

Rear Shock

706000382

$171.51

20

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

21

Lever

706000548

$36.89

22

Cover

706000749

$15.35

23

Sway Bar

706001077

$110.74

24

LH SWING ARM - Call your local BRP dealership

706001185

$258.43

25

Rh Swing Arm

706003425

$290.74

26

Cap

706200785

$4.42

27

Adjuster Ring

706002356

$17.66

28

SPRING_COMPRESSION B-160 PAINTED - Call your local BRP dealership

706000650

$78.43

29

Spring Stopper

706200881

$10.30

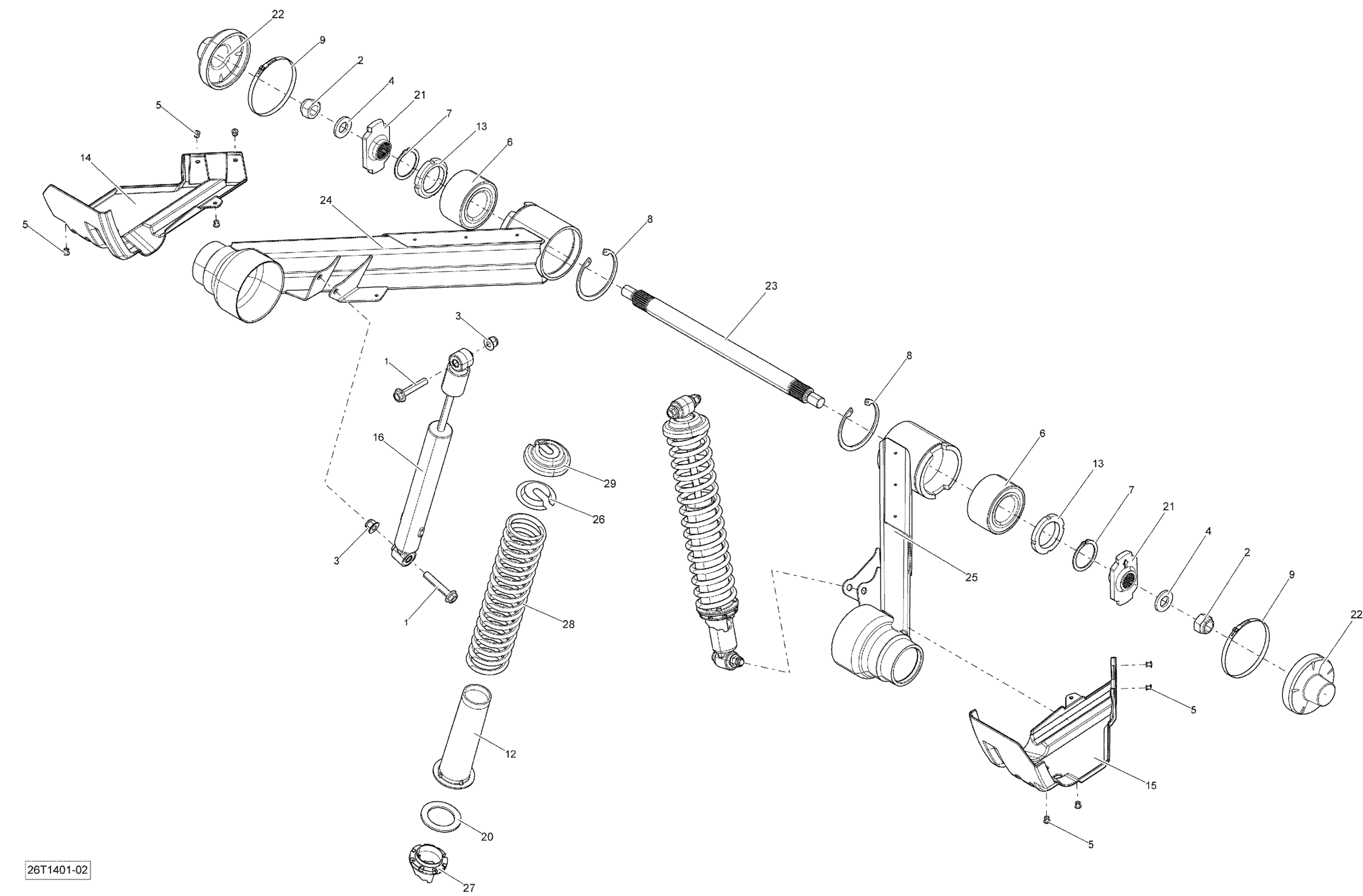

Can-Am Outlander Max 400 EFI, STD, XT, 2014 Rear Suspension Diagram
