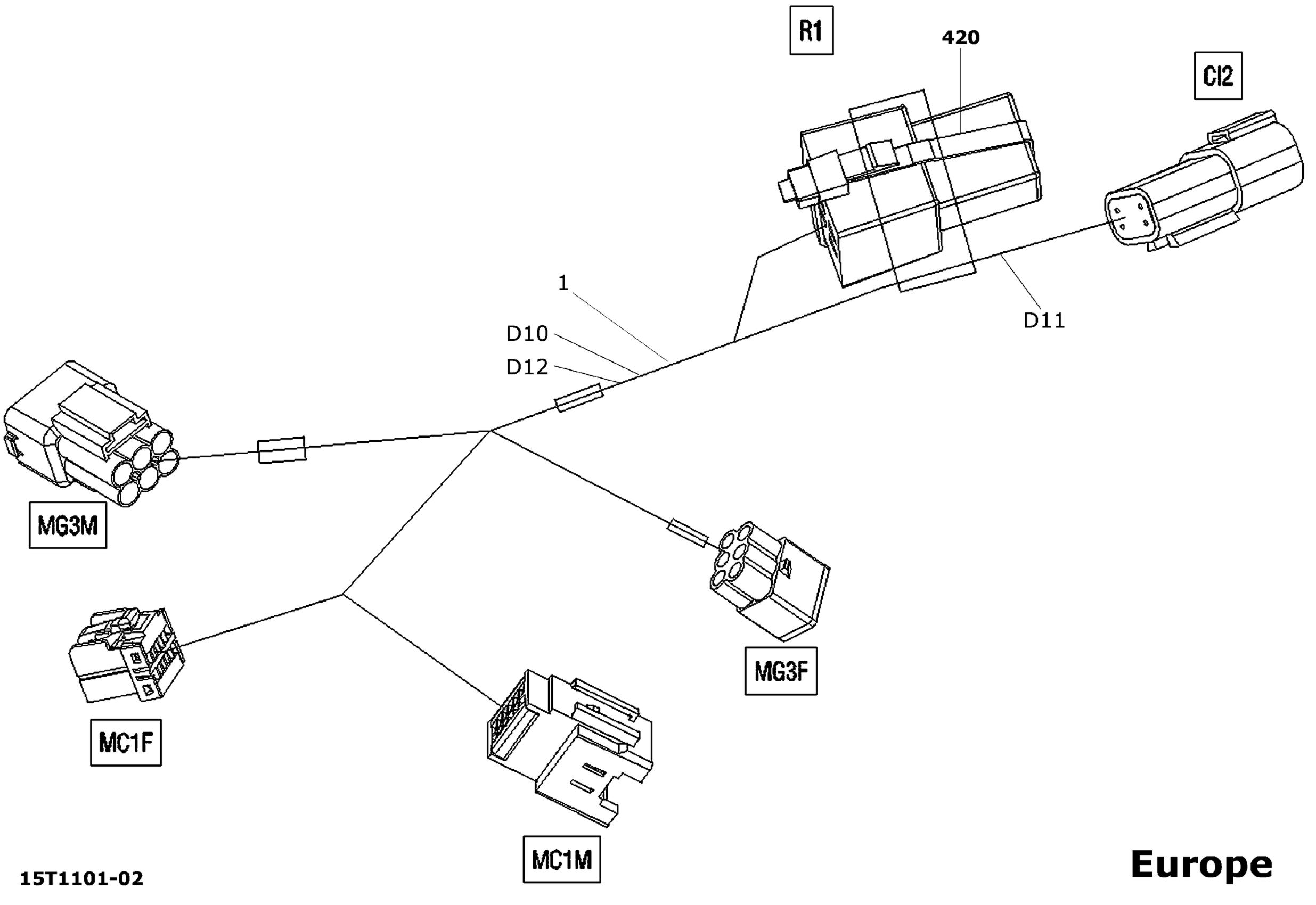

Can-Am Outlander Max 400 EFI, 2011 Electrical Harness, Front Section Added Europe Diagram

Description

Price

ADDED HARNESS, EUROPE - Call your local BRP dealership

710002358

$83.05

CI2

Not Available As Spare Part - Friction Washer

Unavailable

CI2

Female Wedge, 4 Circuits

278000636

$4.12

CI2

Male Terminal

710001348

$11.14

D10

Diode

409012700

$10.83

D11

Diode

409012700

$10.83

D12

Diode

409012700

$10.83

MC1F

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

MC1F

HOUSING - Call your local BRP dealership

710001435

$7.32

MC1F

TERMINAL - Call your local BRP dealership

710001436

$2.09

MC1M

Housing

710002391

Unavailable

MG3F

Female Housing, 6 Circuits

710000081

$8.29

MG3F

Wire Seal

710000402

$4.42

MG3F

Female Terminal

409012100

$3.73

MG3M

Male Terminal Housing, 6 Circuits

710000835

$16.89

MG3M

Wire Seal

710000402

$4.42

MG3M

Male Terminal

409011300

$5.78

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

Housing

710002363

Unavailable

Relay, 30 AMP

515176774

$19.20

Terminal

710002362

Unavailable

420

Tie-Rap 180 mm

414115200

$0.09
