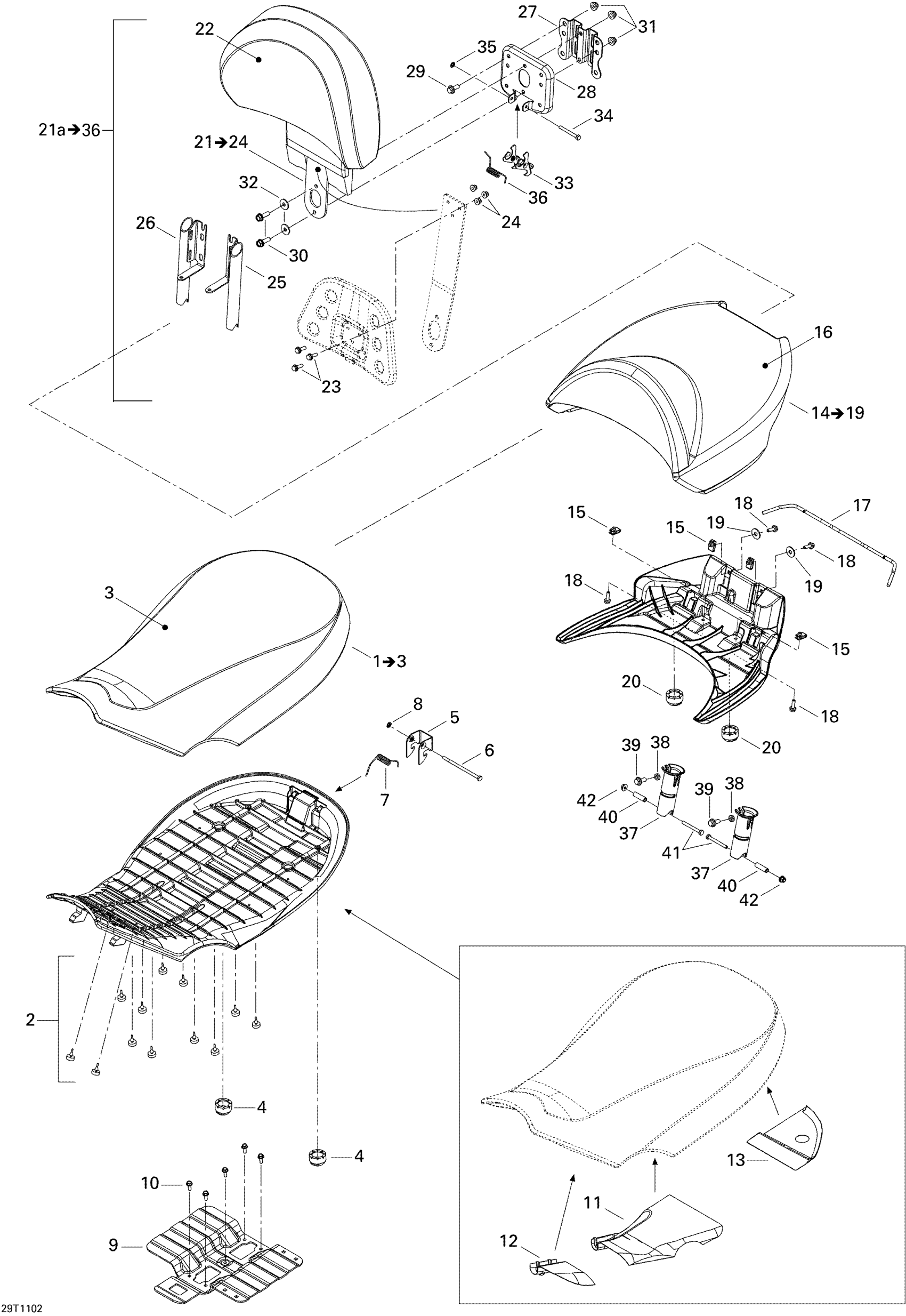

Can-Am Outlander Max 400 EFI, 2011 Seat Diagram

#

Description
Price

1

Siege Assemblee*Seat Assembly | Includes 1 to 6

708001506

$459.99

2

Rubber Stopper

708000759

$4.29

3

Seat Cover

708000556

$126.99

4

Bumper Rubber

708000760

$10.99

5

Latch, Black

708000144

$12.49

6

Hex. Screw M6 X 110

230061044

$1.49

7

Spring

708000369

$9.39

8

Push Nut

732610072

$2.29

9

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.99

11

REFLECTING SHEET - Call your local BRP dealership

708000650

Unavailable

12

REFLECTING SHEET - Call your local BRP dealership

708000649

Unavailable

13

REFLECTING SHEET - Call your local BRP dealership

708000514

Unavailable

14

Rear Seat Ass'y | Includes 16 to 20

708000805

$234.99

15

Panel Nut M6 X 1.0

250100198

$2.19

16

Seat Cover

708000457

$164.49

17

LATCH HANDLE - Call your local BRP dealership

708000822

Unavailable

18

Hex. Flange Screw M6 X 20

207662044

$2.09

19

Lock Washer M6, Black

234161471

$1.49

20

Bumper Rubber

708000760

$10.99

21

Backrest Ass'y

708000809

$519.99

21a

Not Available As Spare Part - Friction Washer

Unavailable

22

Backrest Cover

708000465

$126.99

23

Hex. Flange Screw M6 X 20

207662044

$2.09

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

25

LH BACKREST STEM - Call your local BRP dealership

708000439

Unavailable

26

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

27

REAR PLATE - Call your local BRP dealership

708000855

Unavailable

28

FRONT PLATE - Call your local BRP dealership

708000446

Unavailable

29

Hex. Flange Screw M8 X 20

207682044

$1.49

30

Hex. Flange Screw M8 X 25

207682544

$1.49

31

Hex. Flange Elastic Nut M8

233281414

$1.49

32

Flat Washer 8 mm

234082410

$1.49

33

LATCH - Call your local BRP dealership

708000448

Unavailable

34

Hex. Screw M6 X 55

207065544

$2.19

35

Push Nut

732610072

$2.29

36

Spring

708000369

$9.39

37

ROD GUIDE - Call your local BRP dealership

708000461

Unavailable

38

Hex. Jam Nut M8

232180600

$1.49

39

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

Unavailable

40

INNER BUSHING - Call your local BRP dealership

708000530

Unavailable

41

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065034

Unavailable

42

Flange Elastic Nut M6

233261434

$4.49
