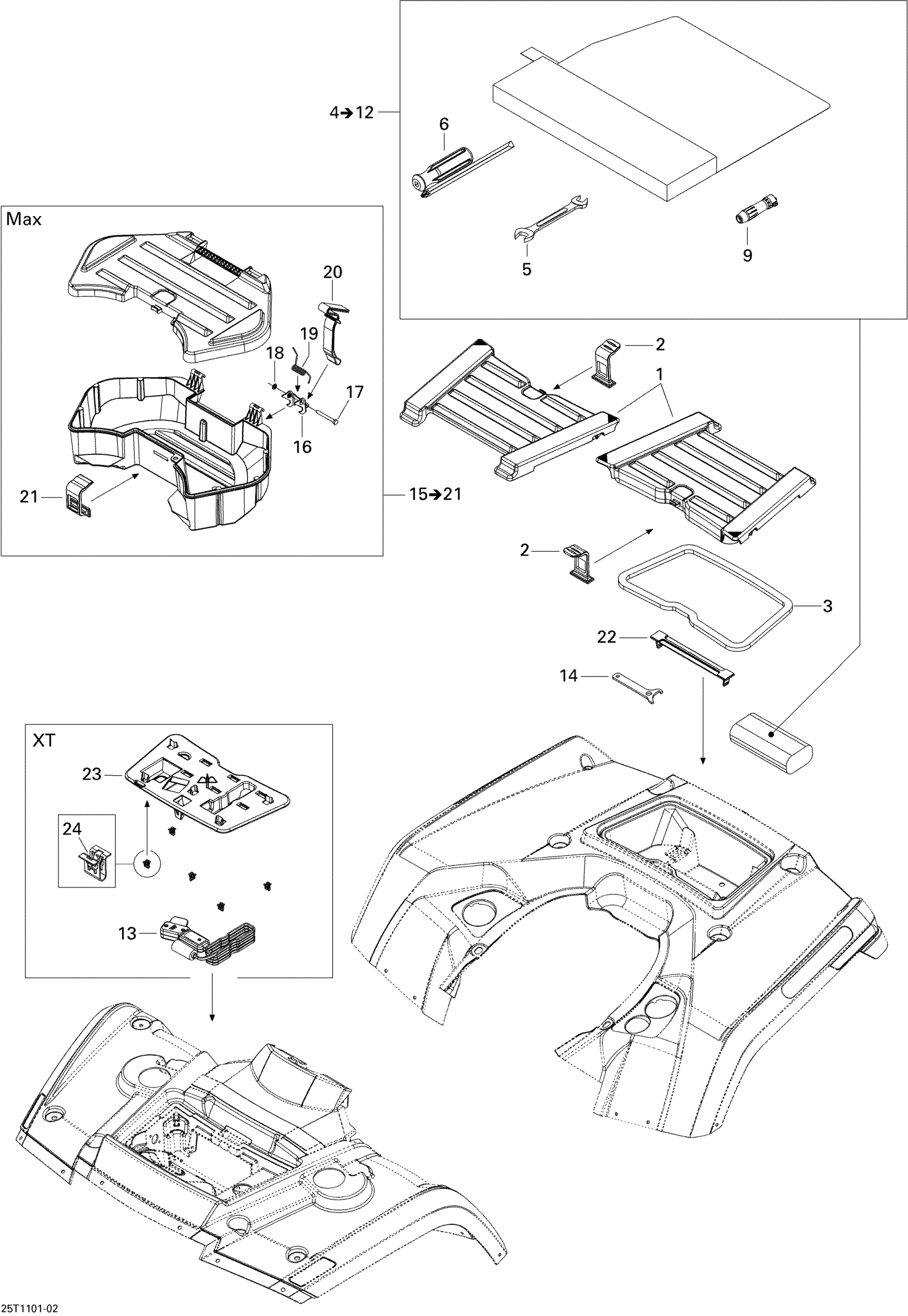

Can-Am Outlander Max 400 EFI, 2011 Front and Rear Trays Diagram

#

Description
Price

1

Storage Cover

705003492

$59.97

2

Cover Latch

708200120

$13.52

3

Neoprene Seal

293250192

$32.28

4

TOOL KIT WITHOUT BRP LOGO - Call your local BRP dealership | Includes 3 to 15

708200124

Unavailable

5

Socket Wrench 10/13 mm

529014900

$0.95

6

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

9

PRESSURE GAUGE - Call your local BRP dealership

529000052

$15.35

13

REMOTE CONTROL - Call your local BRP dealership | XT

710001002

Unavailable

14

Adjustment Wrench

529000035

$2.19

15

BOX ASS'Y - Call your local BRP dealership | Includes 41 to 47

708200119

$86.89

16

LATCH - Call your local BRP dealership

708200066

$13.83

17

Hex. Screw M6 X 55

207065544

$1.70

18

Push Nut

732610072

$1.72

19

Spring

708000369

$8.60

20

BELT - Call your local BRP dealership

510004495

Unavailable

21

Cover Latch

708200120

$13.52

22

COVER LATCH KIT - Call your local BRP dealership

708200121

$9.74

23

SUPPORT - Call your local BRP dealership | XT

708200075

Unavailable

24

Edge Clip

517302785

$0.70
