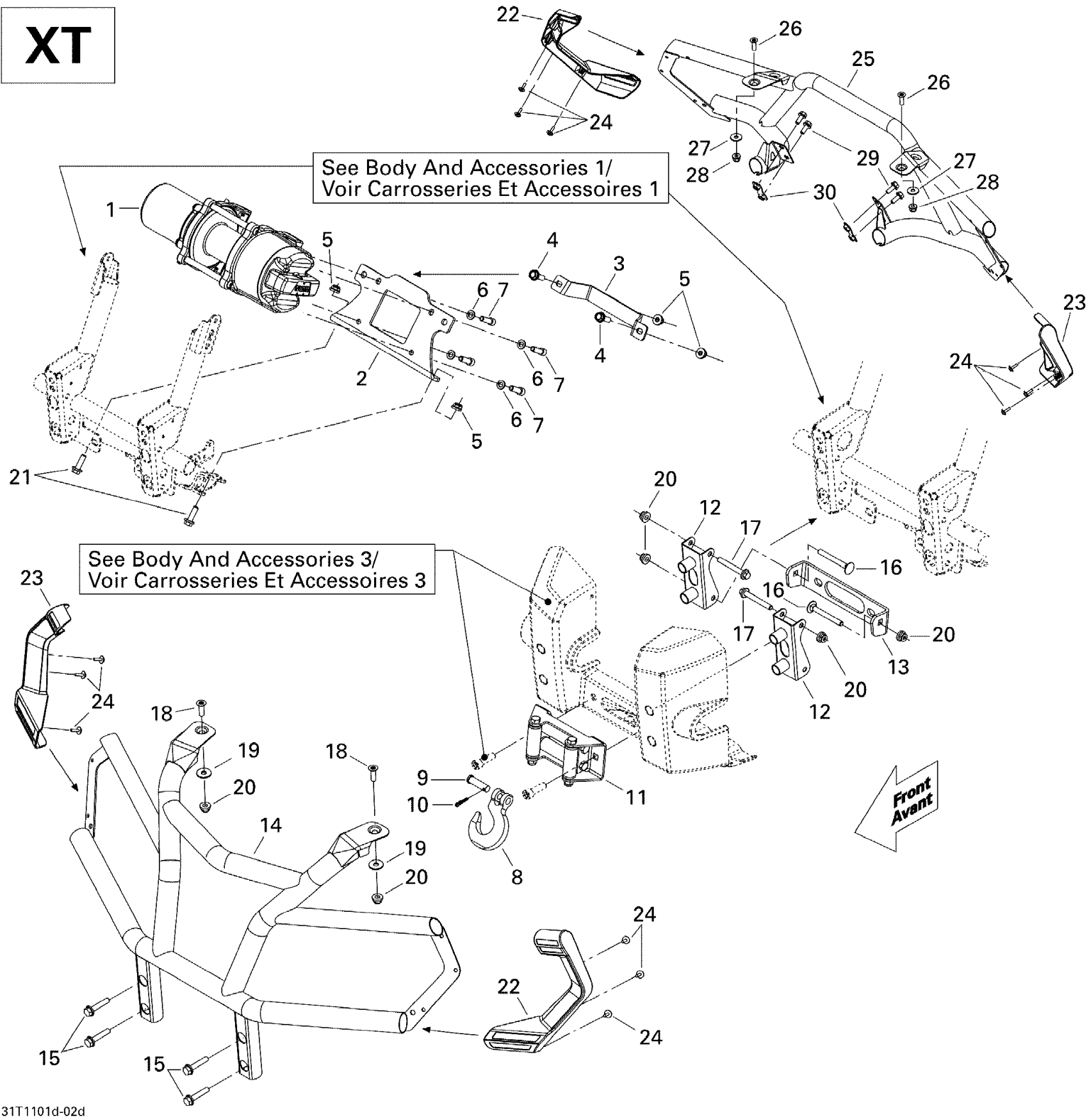

Can-Am Outlander Max 400 EFI, 2011 Body And Accessories 4 XT Diagram

#

Description
Price

1

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

2

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

$41.51

3

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

$12.20

4

Hex. Flange Screw M8 X 25

207682544

$0.90

5

Hex. Flange Elastic Nut M8

233281414

$1.14

6

Lock Washer 8 mm

234181401

$0.89

7

Socket Head Screw M8 X 20

205082044

$1.09

8

Winch Hook Kit

705014949

$27.66

9

Clevis Pin

250400021

$11.83

10

Cotter Pin

250400022

$8.66

11

Fairlead_Roller Kit

715007699

$78.43

12

BUMPER BRACKET - Call your local BRP dealership

705003828

$13.83

12

BUMPER BRACKET - Call your local BRP dealership

705003828

$13.83

13

WINCH BRACKET - Call your local BRP dealership

705003649

Unavailable

14

Front Bumber | XT

705002812

$295.35

15

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

16

Carriage Bolt M8 X 70

207787044

$1.11

17

Hex. Flange Screw M8 x 60

207686044

$2.56

18

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

19

Flat Washer 8 mm

234082410

$1.11

20

Hex. Flange Elastic Nut M8

233281414

$1.14

21

Hex. Flange Screw M8 X 25

207682544

$0.90

22

LH Front Cap | XT

705002802

$11.06

23

RH Front Cap | XT

705002803

$11.06

24

Screw M4 X 16

250000725

$2.87

25

Rear Bumber | XT

705002806

$175.35

26

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

27

Flat Washer 8 mm

234082410

$1.11

28

Hex. Flange Elastic Nut M8

233281414

$1.14

29

Hex Screw Washer Head M8 X 20

207582054

$2.61

30

LINK PLATE - Call your local BRP dealership

705003796

Unavailable
