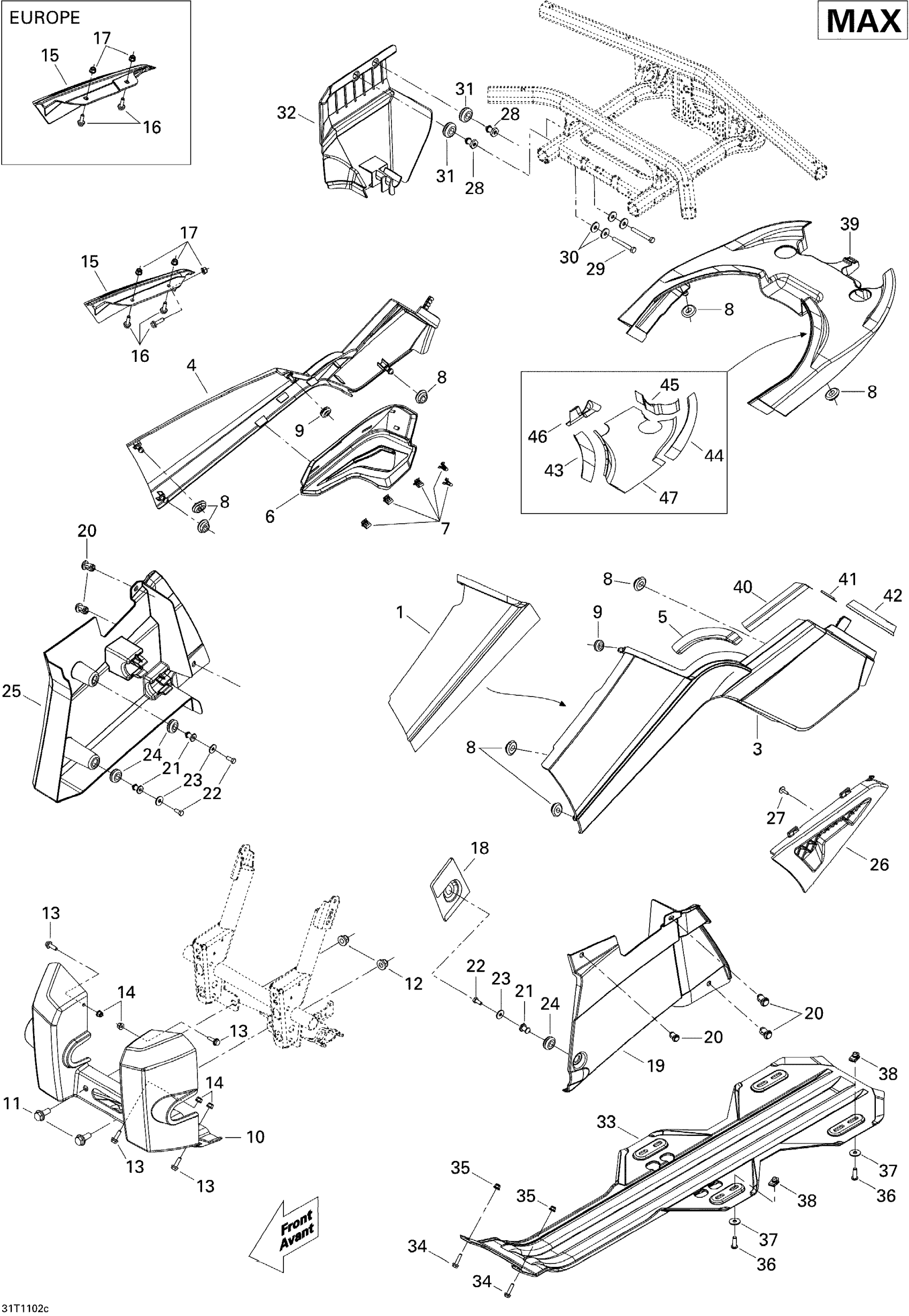

Can-Am Outlander Max 400 EFI, 2011 Body And Accessories 3 Diagram

#

Description
Price

1

REFLECTIVE SHEET - Call your local BRP dealership

705002491

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.21

3

PANEL_BODY LH B-160 - Call your local BRP dealership | Black

705003485

$45.35

3

PANEL_BODY LH B-190 - Call your local BRP dealership

705003483

Unavailable

3

PANEL_BODY LH B-176 - Call your local BRP dealership

705003484

$42.28

4

PANEL_BODY RH B-160 - Call your local BRP dealership | Black

705003506

$45.35

4

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003678

$43.05

4

RED RH SIDE PANEL - Call your local BRP dealership | Viper Red

705003679

$49.20

5

Reflective Sheet

705002793

Unavailable

5

REFLECTIVE SHEET - Call your local BRP dealership

705003004

$6.49

6

MUFFLER COVER - Call your local BRP dealership

705002664

$15.35

7

Edge Clip

517302785

$0.70

8

Oval Washer

705005156

$4.85

8

Oval Washer

705005156

$4.85

9

Grommet

705003264

$3.43

10

GUARD PLATE - Call your local BRP dealership | STD

705003495

Unavailable

10

GUARD PLATE - Call your local BRP dealership

705003496

$34.58

11

Socket Screw M10 X 35

205003544

$1.39

12

Hex. Flange Elastic Nut M10

233201414

$1.26

13

Hex. Flange Screw M6 X 20

207662044

$1.66

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

LEVER INDICATOR - Call your local BRP dealership

705001529

$14.65

15

LEVER INDICATOR - Call your local BRP dealership | Europe

705003028

$23.82

16

Hex. Flange Screw M6 X 20

207662044

$1.66

16

Hex. Flange Screw M6 X 20

207662044

$1.66

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Reflective Sheet

705003830

$11.98

19

LH Inner Fender

705000652

$36.89

20

Tuflok Plastic Rivet

293150230

$1.21

21

Knob

517303439

$3.73

22

Torx Screw K50 X 16

250000720

$1.39

23

Washer | DS 650 X

391301600

$0.48

24

Grommet

709000582

$4.38

25

INNER FENDER - Call your local BRP dealership

705002640

Unavailable

26

CONSOLE CAP - Call your local BRP dealership

705002493

$9.74

27

Screw M4 X 16

250000725

$2.87

28

Knob

517303439

$3.73

29

Hex. Screw K50 X 45

241154540

$1.74

30

Washer | DS 650 X

391301600

$0.48

31

Grommet

709000582

$4.38

32

Thread Cover

705004036

$19.20

33

PLATE_SKID CTRL. KIT - Call your local BRP dealership

715000688

Unavailable

34

Hex. Flange Screw M6 X 25

207662544

$0.53

35

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

36

Torx Screw M8 X 25, Scotch Grip

250000283

$1.91

37

Flat Washer 8 mm

234082410

$1.11

38

Panel Nut M8

250100111

$3.38

39

YELLOW STORAGE TRAY - Call your local BRP dealership | Yellow

705002952

$29.97

39

RED STORAGE TRAY - Call your local BRP dealership | Viper Red

705002954

Unavailable

39

Storage Tray, Black

705003131

Unavailable

40

REFLECTIVE SHEET - Call your local BRP dealership

705003005

$6.49

41

Reflective Sheet

705003033

Unavailable

42

REFLECTIVE SHEET - Call your local BRP dealership

705003034

$6.49

43

REFLECTIVE SHEET - Call your local BRP dealership

705003082

$5.68

44

REFLECTIVE SHEET - Call your local BRP dealership

705003083

$5.68

45

REFLECTIVE SHEET - Call your local BRP dealership

705003084

$5.68

46

REFLECTIVE SHEET - Call your local BRP dealership

705003085

$5.68

47

REFLECTIVE SHEET - Call your local BRP dealership

705003086

$7.32
