Description

Price

1a

BLACK FRONT FASCIA - Call your local BRP dealership | Black

705003077

$66.12

1a

YELLOW FRONT FASCIA - Call your local BRP dealership | Yellow

705002778

$79.20

1a

RED FRONT FASCIA - Call your local BRP dealership | Red

705003080

Unavailable

1b

LH Head Lamp Support

705002825

Unavailable

1c

LH LOWER FRONT FACIA - Call your local BRP dealership

705002780

Unavailable

1c

LH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002889

$14.65

1d

RH LOWER FRONT FACIA - Call your local BRP dealership

705002781

Unavailable

1d

RH LOWER FRONT FACIA - Call your local BRP dealership | Europe

705002890

$14.65

1e

RH Head Lamp Support

705002826

$25.35

2

Tuflok Plastic Rivet

293150230

$1.21

3

Washer

506151252

$3.11

4

Plastite Screw Type K-40, M4 X 25

250000101

$2.87

5

UPPER GRILL - Call your local BRP dealership

705002779

$28.43

6

Edge Clip

517302785

$0.70

7

Rear Facia

705003840

$42.28

8

Stopper Rubber

705014429

$6.09

9

Screw M4 X 16

250000725

$2.87

10

SUPPORT - Call your local BRP dealership | Europe

705002499

$12.20

11

Torx Screw M6 X 16

250000755

$0.72

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Hex. Flange Screw M6 X 16

210261650

$1.22

14

Flat Washer

250200082

$0.35

15

Tuflok Plastic Rivet

293150230

$1.21

16

Rear Luggage Rack

705002617

$267.66

17

Front Luggage Rack

705002616

$267.66

18

Flat Washer

250200040

$1.82

19

Torx Truss Screw M6 X 50

250000749

$3.11

20

Hex. Screw M6 X 55

207065544

$1.70

21

Flat Washer

224061201

$1.11

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

RUBBER CAP - Call your local BRP dealership

705003667

$9.74

24

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

$1.45

25

LH FIXATION PLATE - Call your local BRP dealership

705002762

$6.49

26

RH FIXATION PLATE - Call your local BRP dealership

705002760

$6.49

27

LH HANDLE - Call your local BRP dealership | Includes 24 to 26

705002700

$104.58

28

Hex. Screw M8 X 35

207083544

$0.92

29

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

30

RH HANDLE - Call your local BRP dealership | Includes 27 to 29

705002699

$104.58

31

Hex. Screw M8 X 35

207083544

$0.92

32

HEX. NUT - Call your local BRP dealership

232081494

Unavailable

33

TORX SCREW M8 X 35 - Call your local BRP dealership | Max

250000441

$1.69

34

Hex. Flange Elastic Nut M8

233281414

$1.14

35

Bushing

705002153

$11.06

36

CAP - Call your local BRP dealership

414859400

$2.78

37

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

38

LH ANCHOR PLATE - Call your local BRP dealership

705002995

$13.83

39

Pop Rivet 3/16"

390402300

$0.64

40

RH Anchor Plate

705002997

$16.89

41

Hex. Flange Screw M8 X 45

207684544

$3.68

42

Flat Washer 8 mm

234082410

$1.11

43

Hex. Elastic Stop Nut M8

232581414

$0.47

44

Rear Support

705003656

$267.66

45

U Reinforcement

705003647

$6.92

46

Hex. Flange Screw M8 X 50

207685044

$1.39

47

Hex. Flange Elastic Nut M8

233281414

$1.14

48

Flat Washer 8 mm

234082410

$1.11

49

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

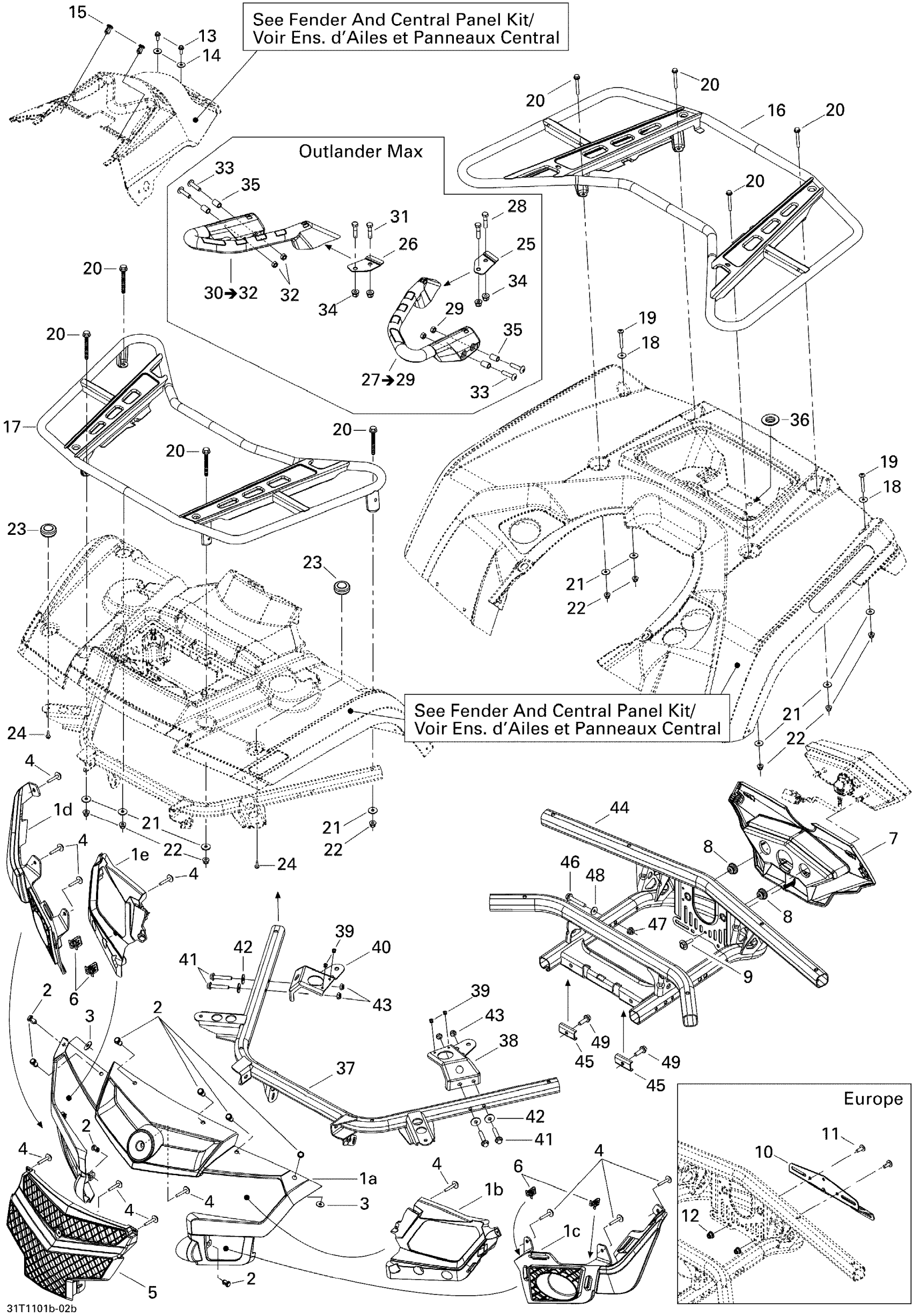

Can-Am Outlander Max 400 EFI, 2011 Body And Accessories 2 Diagram
