Description

Price

1

Push Nut

732610072

$1.72

2

Hex. Flange Screw M8 X 20

207682044

$0.92

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Hex. Flange Screw M10 X 30

207603044

$1.70

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

FRONT BUMPER - Call your local BRP dealership

705003654

$186.12

7

Hex. Screw M6 X 60

207066044

$0.56

8

LH FACIA SUPPORT - Call your local BRP dealership

705002925

Unavailable

9

LH LOWER FACIA SUPPORT - Call your local BRP dealership

705003037

$9.74

10

RH FACIA SUPPORT - Call your local BRP dealership

705002926

$16.89

11

RH LOWER FACIA SUPPORT - Call your local BRP dealership

705003039

$9.74

12

Hex. Flange Screw M6 X 16

207661644

$0.61

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Torx Screw M6 X 16

250000755

$0.72

15

RH Footboard

705002487

$170.74

16

LH Footboard

705003633

$170.74

17

Engine Cover

705003837

$36.89

18

Hex. Flange Screw M6 X 12

210261250

$1.56

19

Engine Cover Support

705003646

$7.69

20

Footrest

705003648

$41.51

21

Hex. Flange Screw M6 X 25

250000787

$1.83

22

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

23

PLASTIC CAP - Call your local BRP dealership | STD

293000103

$4.03

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25

Torx Screw M6 X 16

250000755

$0.72

26

FRONT CAP - Call your local BRP dealership

705001999

$6.49

27

LH Rear Body Panel Cap

705017923

$12.68

28

RUBBER PAD - Call your local BRP dealership

705002219

$6.49

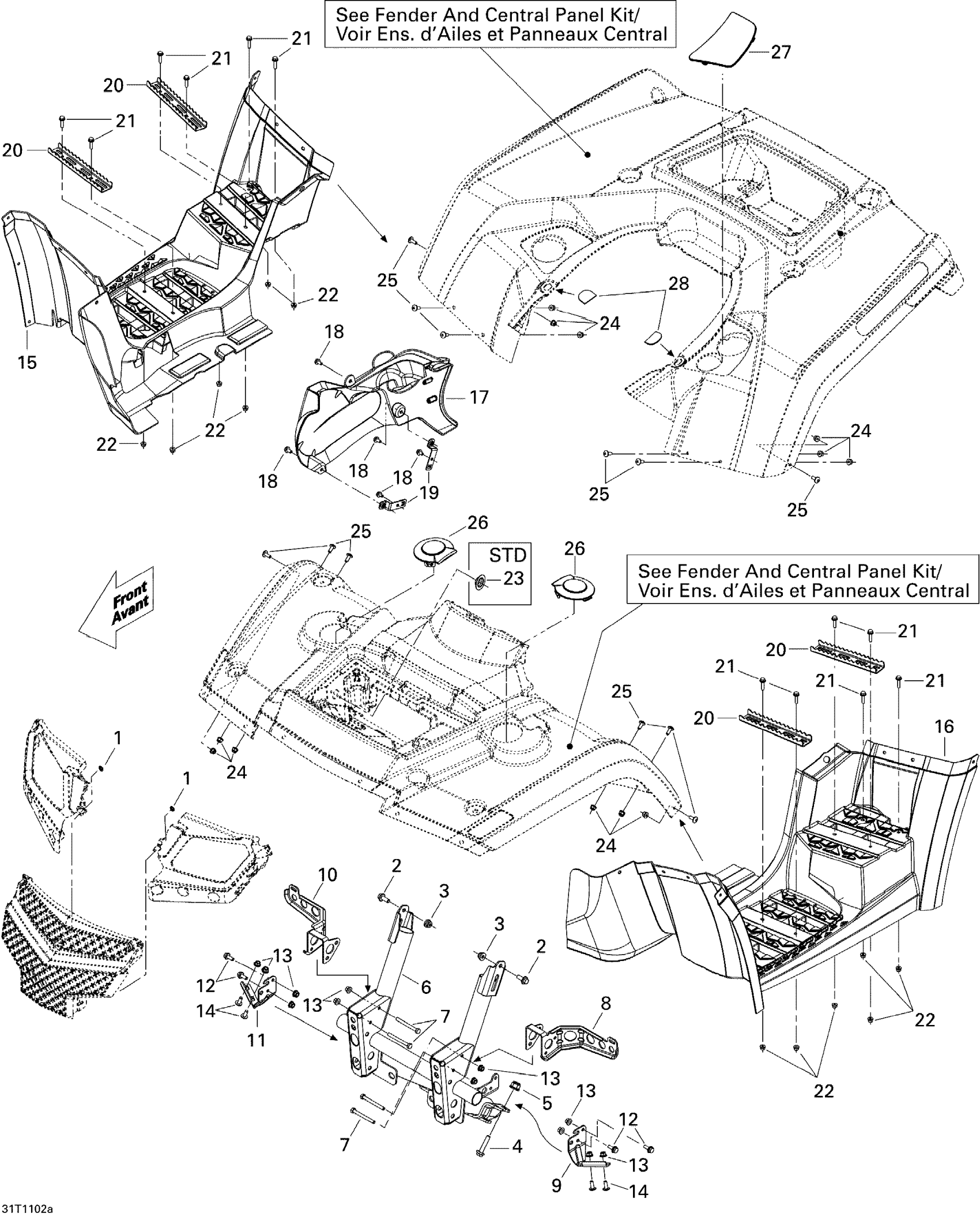

Can-Am Outlander Max 400 EFI, 2011 Body And Accessories 1 Diagram

LH FACIA SUPPORT - Call your local BRP dealership
