Description

Price

1

Fuel Tank Ass'y

709000220

$235.35

2

Nut, Fuel Pump Module

513033040

$27.66

3

Bushing | DS 650 X

293900104

$5.26

4

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

5

Hex. Flange Screw M6 X 25

207662534

$1.74

6

Washer

224060251

$0.57

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

Seal

709000208

$12.54

9a

Fuel Pump Kit Ass'y

703500766

$368.77

9b

Not Available As Spare Part - Friction Washer

Unavailable

9c

Fuel Pre-Filter Kit

709000389

$78.43

9d

Fuel Vent Kit

715001288

$32.28

10

Oetiker Clamp

293650046

$2.33

11

Was 709000163 Fuel Line

219704440

$108.43

11

Was 709000163 Fuel Line

219704440

$108.43

12

Fuel Tank Cap

513033025

$19.47

12

Fuel Tank Cap | Europe

709000267

$56.89

14

Was 293200017 Neoprene Seal

219704365

$118.27

14

TANK PROTECTOR - Call your local BRP dealership

709000207

Unavailable

15

PLASTIC TUKLOCK RIVET - Call your local BRP dealership

293150168

$1.62

16

REFLECTING SHEET - Call your local BRP dealership

709000360

$4.03

17

Female Quick Fitting Ass'y

709000125

$11.12

18

Filter

709000330

$8.29

19

Polyurethane Hose 10000Mm Long

219704410

$46.12

20

Elbow Male Connector

414580600

$3.50

21

Check Valve

513033469

$25.32

22

Grommet

293720029

$1.13

23

Check Valve

275500398

$8.57

24

Y-Fitting

293710059

$8.19

25

REFLECTING SHEET - Call your local BRP dealership

709000204

$6.49

26

REFLECTING SHEET - Call your local BRP dealership

709000205

$5.68

27

REFLECTING SHEET - Call your local BRP dealership

709000206

$9.74

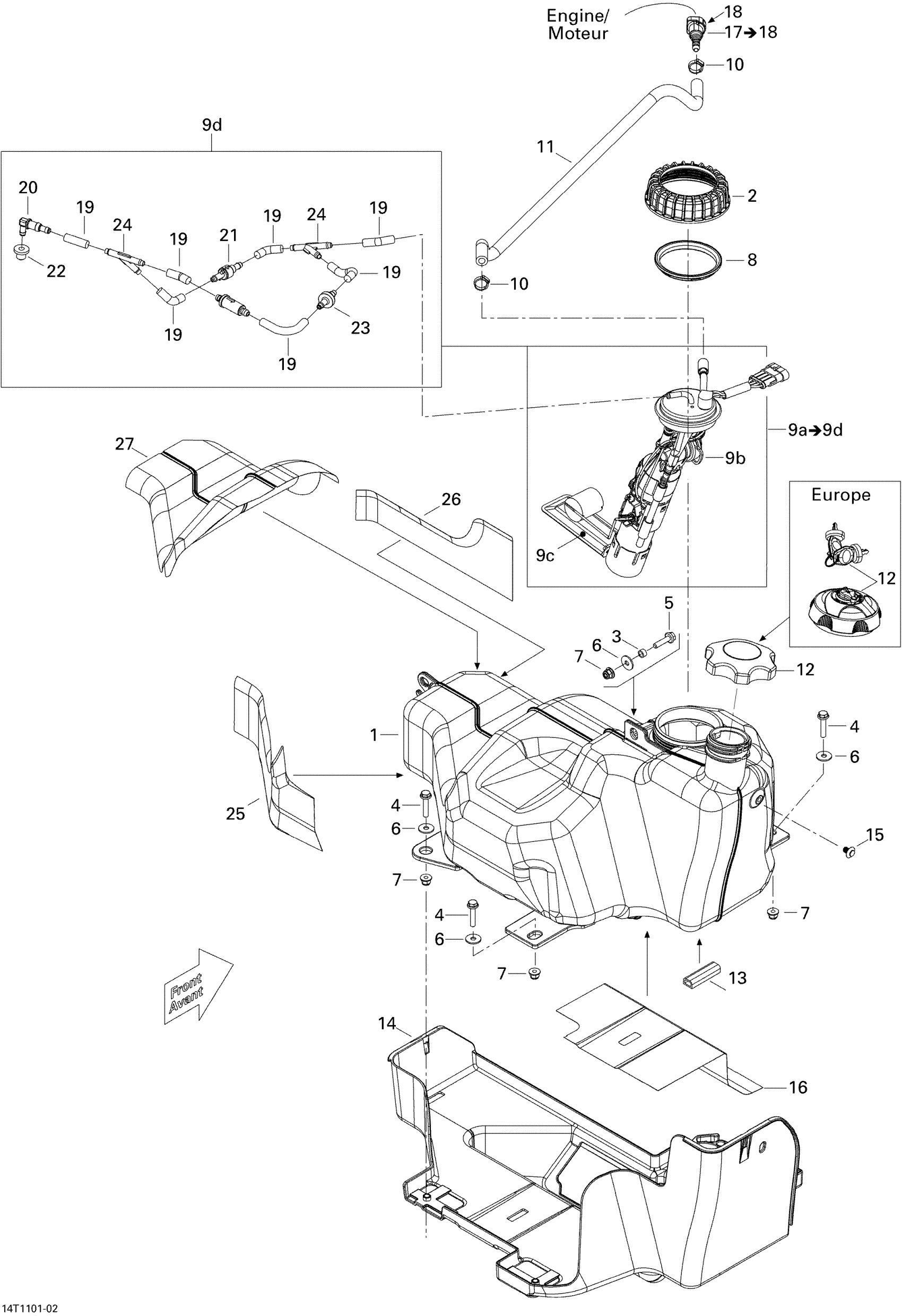

Can-Am Outlander Max 400 EFI, 2011 Fuel System Diagram

Not Available As Spare Part - Friction Washer

TANK PROTECTOR - Call your local BRP dealership
