Description

Price

1

Throttle Body Ass'y | Includes 8 to 16

420685326

$679.97

2

Position Sensor

420866120

$77.97

3

Flat Washer 4 mm, Stainless

234042600

$0.92

4

Phillips Screw M4 X 16

208641660

$0.74

5

Idle Air Control Valve

420665941

$147.52

6

O-Ring

420631780

$3.61

7

Snap Ring

420845710

$3.38

8

Binding Head Screw M5 X 16

420440911

$11.48

9

Cover Kit

420281540

$23.05

10

Clamp

420251480

$13.58

11

Intake Adaptor

420267480

$15.35

12

ELBOW INTAKE ADAPTOR - Call your local BRP dealership

420267525

$32.28

13

Gasket

420630642

$5.22

14

ALLEN SCREW M8 X 40 - Call your local BRP dealership

420440482

$7.80

15

Injection Valve

420874402

$181.51

16

O-Ring

420631220

$11.48

17

O-Ring

420631296

$0.74

18

Fuel Rail

420874901

$23.05

19

Torx Flange Screw M6 X 16

420641048

$2.46

20

Pressure And Temperature Sensor

707000995

$70.82

21

Torx Flange Screw M6 X 16

420641048

$2.46

B

Loctite 243, 10 ml

293800060

$20.77

O

Not Available As Spare Part - Friction Washer

Unavailable

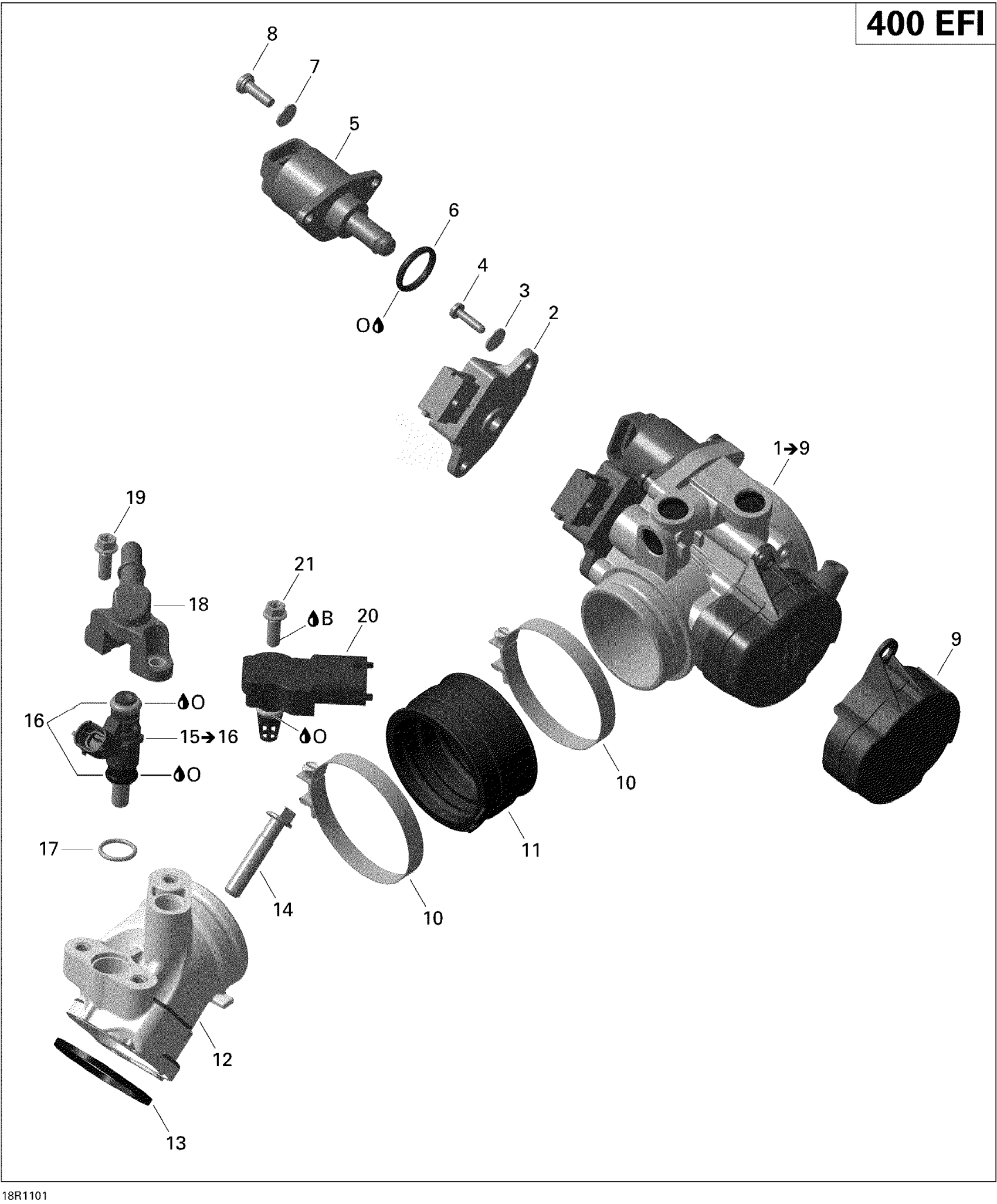

Can-Am Outlander Max 400 EFI, 2011 Air Intake Manifold And Throttle Body Diagram

Not Available As Spare Part - Friction Washer
