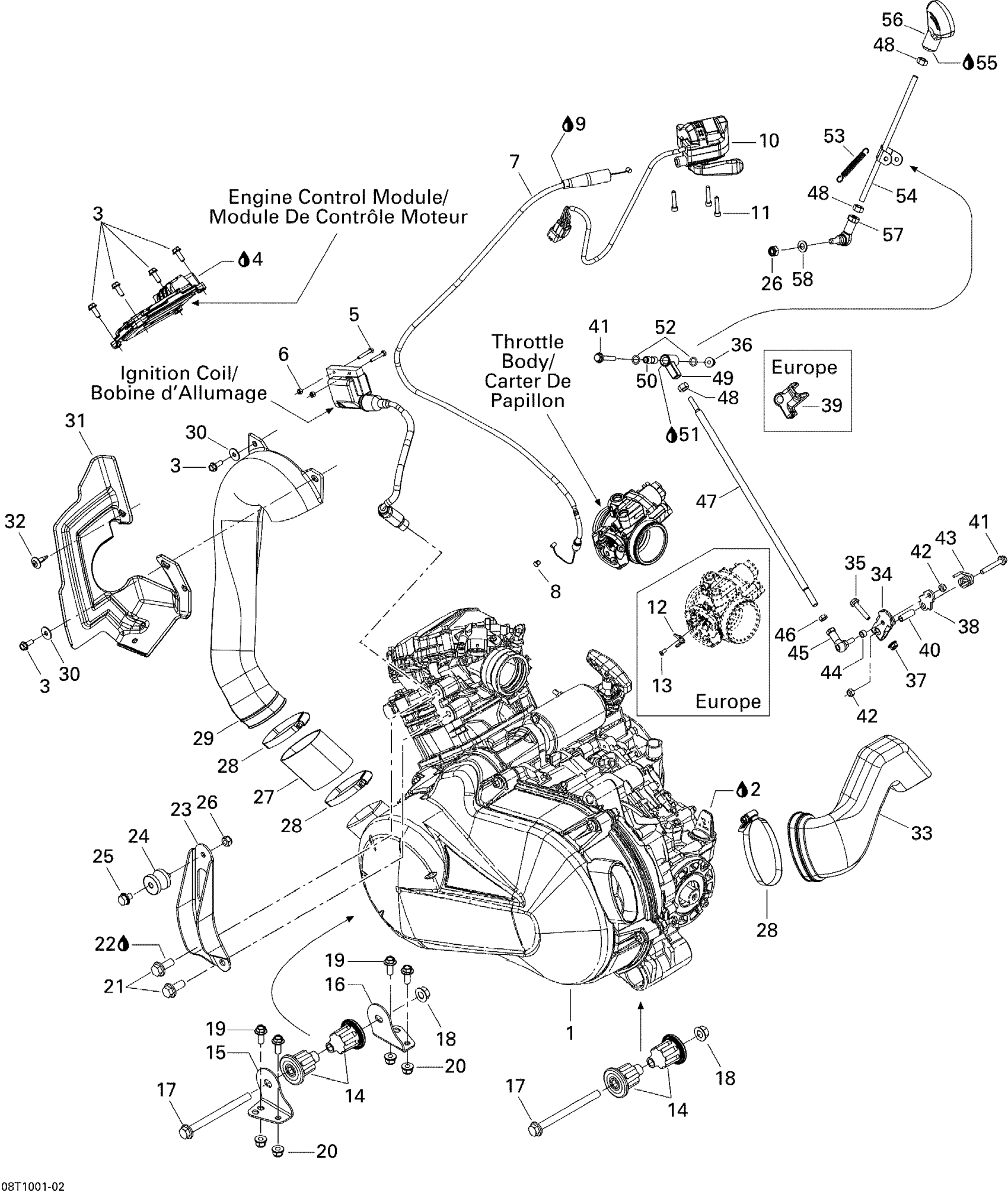

Can-Am Outlander Max 400 EFI, 2010 Engine And Engine Support Diagram

#

Description
Price

1

ENGINE LONG BLOCK, 400 EFI - Call your local BRP dealership | Includes 1 to 2

420040035

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Hex. Flange Screw M6 X 16

210261650

$1.40

4

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

5

Hex. Screw M4 X 25

207142544

$1.87

6

Elastic Stop Nut M4

232541414

$0.55

7

THROTTLE CABLE - Call your local BRP dealership

707000539

Unavailable

8

Cable Guide

707000434

$10.21

9

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

10

Throttle Handle | 4X4

707000595

$189.52

11

Socket Head Screw M5 X 25

205052588

$1.79

12

Speed Limiter | Europe

707000658

Unavailable

13

TORX SCREW M4 X 8 - Call your local BRP dealership | Europe

250000332

Unavailable

14

Anti Vibration Buffer

707001170

$19.37

15

ENGINE BRACKET - Call your local BRP dealership

707000802

Unavailable

16

ENGINE BRACKET - Call your local BRP dealership

707000803

Unavailable

17

Hex. Flange Screw M10 X 125

230602546

$6.99

18

Hex. Flange Elastic Nut M10

233201436

$2.00

19

Hex. Flange Screw M8 X 20

207682044

$1.06

20

Hex. Flange Elastic Nut M8

233281414

$1.31

21

Hex. Flange Screw M10 X 25

207602544

$1.52

22

Loctite 243, 10 ml

293800060

$21.49

23

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

Unavailable

24

Rubber Isolator

707000949

$10.33

25

Flange Screw M8 x 10, Scotch Grip

207581046

$4.58

26

Hex. Elastic Stop Nut M8

232581414

$0.54

27

Flexibale Adaptor

707002585

$14.31

28

Norma Clamp

293650091

$10.54

29

AIR INTAKE - Call your local BRP dealership

707000540

Unavailable

30

Flat Washer

250200082

$0.40

31

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

Unavailable

32

Tuflock Phillips Plastic Screw

414745900

$1.49

33

AIR OUTLET - Call your local BRP dealership

707000718

Unavailable

34

Lever

707000503

$38.49

35

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

38

Pivot Plate

707000507

$7.21

39

PIVOT - Call your local BRP dealership | Europe

707000977

Unavailable

40

Bushing

293900079

$8.24

41

Hex. Flange Screw M6 X 40

207664044

$2.12

42

Elastic Stop Nut M6

232561414

$1.78

43

Spring

707000310

$9.09

44

Bushing | DS 650 X

293900104

$5.10

45

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

46

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

47

Threaded Rod

707000567

$29.82

48

Hex. Nut M8

232081414

$0.69

49

PIVOT - Call your local BRP dealership

707000568

Unavailable

50

Bushing

293900075

$10.82

51

Synthetic Grease, 400 G

293550010

Unavailable

52

O-RING - Call your local BRP dealership

414583300

Unavailable

53

Spring

707000569

$8.24

54

Lever Arm

707000786

$35.04

55

Loctite 243, 10 ml

293800060

$21.49

56

Lever Handle

707000284

$17.88

57

RH Ball Joint

707001959

$34.30

58

Flat Washer 8 mm

234081410

$0.79
