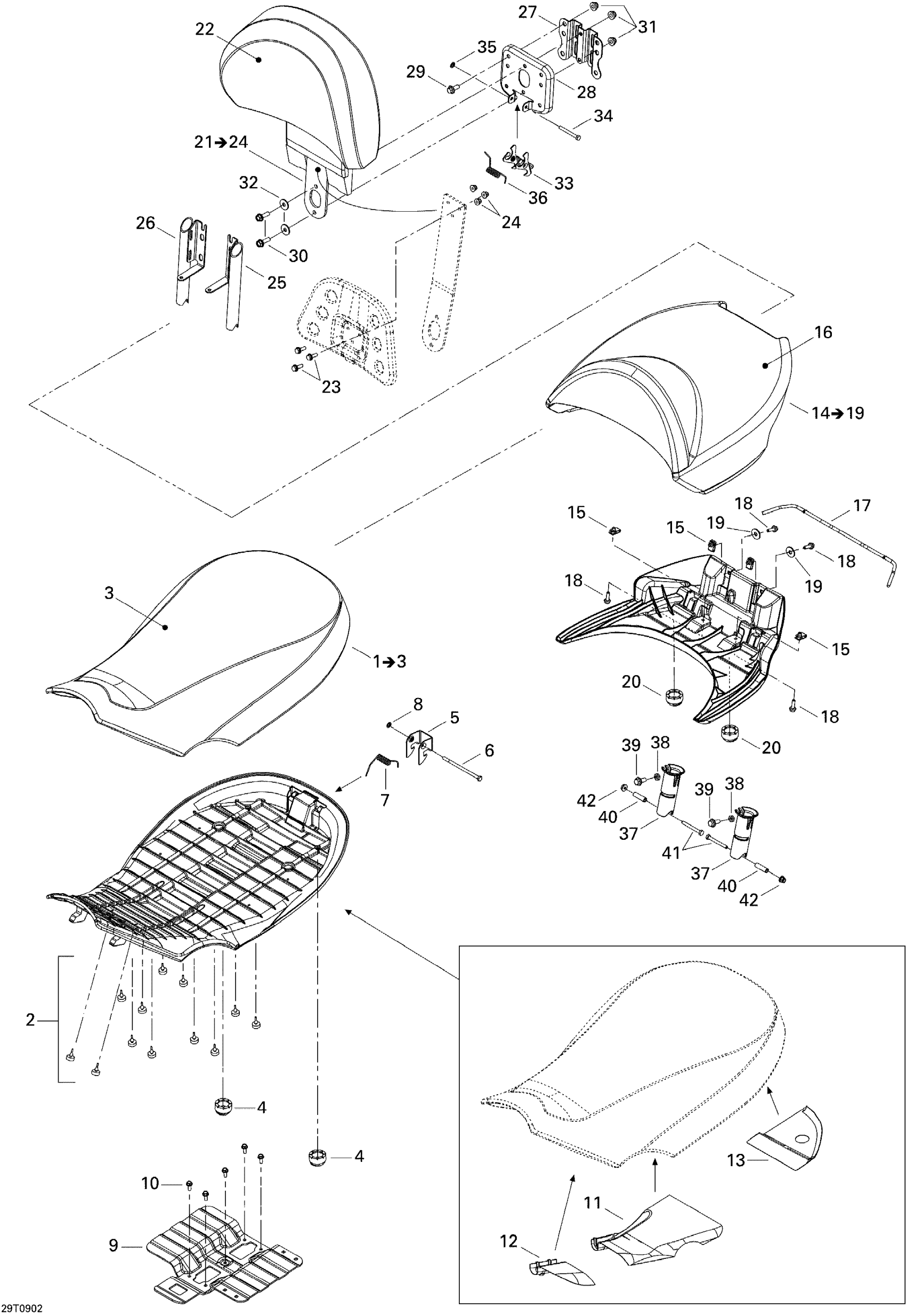

Can-Am Outlander Max 400 EFI, 2009 Seat Diagram

#

Description
Price

1

Seat Ass'y | Includes 1 to 3, 11, 12, 13

708000753

Unavailable

2

Rubber Stopper

708000759

$3.61

3

Seat Cover

708000556

$124.58

4

Bumper Rubber

708000760

$9.11

5

Latch, Black

708000144

$11.09

6

Hex. Screw M6 X 110

230061044

$1.25

7

Spring

708000369

$8.60

8

Push Nut

732610072

$1.72

9

REINFORCEMENT SEAT - Call your local BRP dealership

708000817

Unavailable

10

Hex. Flange Screw M6 X 12

210261250

$1.56

11

REFLECTING SHEET - Call your local BRP dealership

708000650

$8.12

12

REFLECTING SHEET - Call your local BRP dealership

708000649

$4.03

13

REFLECTING SHEET - Call your local BRP dealership

708000514

$6.49

14

Rear Seat Ass'y | Includes 16 to 20

708000805

$221.51

15

Panel Nut M6 X 1.0

250100198

$1.73

16

Seat Cover

708000457

$161.51

17

LATCH HANDLE - Call your local BRP dealership

708000822

$15.35

18

Hex. Flange Screw M6 X 20

207662044

$1.66

19

Lock Washer M6, Black

234161471

$0.52

20

Bumper Rubber

708000760

$9.11

21

Backrest Ass'y

708000809

$489.20

22

Backrest Cover

708000465

$124.58

23

Hex. Flange Screw M6 X 20

207662044

$1.66

24

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

25

LH BACKREST STEM - Call your local BRP dealership

708000439

$29.20

26

RH BACKREST STEM - Call your local BRP dealership

708000443

Unavailable

27

REAR PLATE - Call your local BRP dealership

708000855

$23.05

28

FRONT PLATE - Call your local BRP dealership

708000446

$28.43

29

Hex. Flange Screw M8 X 20

207682044

$0.92

30

Hex. Flange Screw M8 X 25

207682544

$0.90

31

Hex. Flange Elastic Nut M8

233281414

$1.14

32

Flat Washer 8 mm

234082410

$1.11

33

LATCH - Call your local BRP dealership

708000448

$8.94

34

Hex. Screw M6 X 55

207065544

$1.70

35

Push Nut

732610072

$1.72

36

Spring

708000369

$8.60

37

ROD GUIDE - Call your local BRP dealership

708000461

$9.74

38

Hex. Jam Nut M8

232180600

$0.56

39

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

$1.62

40

INNER BUSHING - Call your local BRP dealership

708000530

$9.74

41

HEX. CAP SCREW M6 X 50 - Call your local BRP dealership

207065034

$1.69

42

Flange Elastic Nut M6

233261434

$3.61
