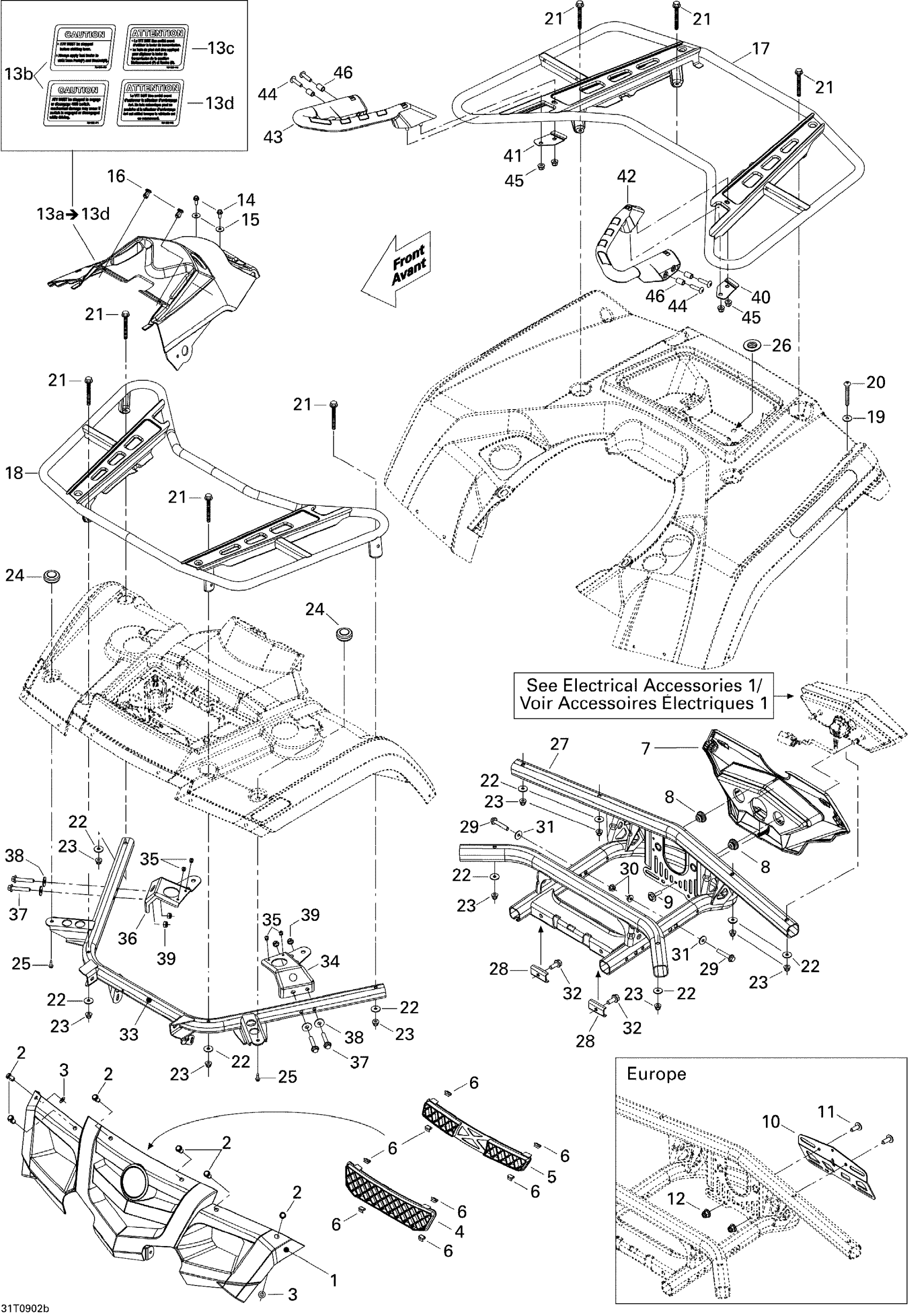

Can-Am Outlander Max 400 EFI, 2009 Body And Accessories 2 Diagram

#

Description
Price

1

FRONT FASCIA, RED - Call your local BRP dealership | Viper Red

705001313

$63.05

1

FRONT FASCIA, YELLOW - Call your local BRP dealership | Yellow

705001991

$48.43

1

FRONT FASCIA, BLACK - Call your local BRP dealership | Black

705003198

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.21

3

Washer

506151252

$3.11

4

LOWER GRILL - Call your local BRP dealership

705001679

Unavailable

5

UPPER GRILL - Call your local BRP dealership

705001901

$9.20

6

Clip | Europe Models

517306751

$1.97

7

Rear Facia

705003840

$42.28

8

Stopper Rubber

705014429

$6.09

9

Screw M4 X 16

250000725

$2.87

10

SUPPORT - Call your local BRP dealership | Europe

705002499

$12.20

11

Torx Screw M6 X 16

250000755

$0.72

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13a

BLACK DASH-BOARD KIT - Call your local BRP dealership | Includes 13a to 13d

715000789

$73.05

13b

Caution Decal, Lever And 4wd Switch | English Version

704900434

Unavailable

13c

Caution Decal, Shifting Lever | French Version

704900475

Unavailable

13d

CAUTION DECAL, 4WD SWITCH - Call your local BRP dealership | French Version

704900476

Unavailable

14

Hex. Flange Screw M6 X 16

210261650

$1.22

15

Flat Washer

250200082

$0.35

16

Tuflok Plastic Rivet

293150230

$1.21

17

Rear Luggage Rack

705002617

$267.66

18

Front Luggage Rack

705002616

$267.66

19

Flat Washer

250200040

$1.82

20

Torx Truss Screw M6 X 50

250000749

$3.11

21

Hex. Flange Screw M6 X 50

207665044

$3.38

22

Flat Washer

224061201

$1.11

23

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

24

RUBBER CAP - Call your local BRP dealership

705002042

$9.74

25

HEX. SCREW 12 X 3/4 - Call your local BRP dealership

365901100

$1.45

26

CAP - Call your local BRP dealership

414859400

$2.78

27

Rear Support

705003656

$267.66

28

U Reinforcement

705003647

$6.92

29

Hex. Flange Screw M8 X 50

207685044

$1.39

30

Hex. Flange Elastic Nut M8

233281414

$1.14

31

Flat Washer 8 mm

234082410

$1.11

32

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

33

FRONT SUPPORT - Call your local BRP dealership

705003655

Unavailable

34

LH ANCHOR PLATE - Call your local BRP dealership

705002995

$13.83

35

Pop Rivet 3/16"

390402300

$0.64

36

RH Anchor Plate

705002997

$16.89

37

Hex. Flange Screw M8 X 45

207684544

$3.68

38

Flat Washer 8 mm

234082410

$1.11

39

Hex. Elastic Stop Nut M8

232581414

$0.47

40

LH FIXATION PLATE - Call your local BRP dealership

705002762

$6.49

41

RH FIXATION PLATE - Call your local BRP dealership

705002760

$6.49

42

LH HANDLE - Call your local BRP dealership | Includes 24 to 26

705002700

$104.58

43

RH HANDLE - Call your local BRP dealership | Includes 27 to 29

705002699

$104.58

44

TORX TRUSS SCREW M8 X 35 - Call your local BRP dealership

250000316

$1.69

45

Hex. Flange Elastic Nut M8

233281414

$1.14

46

Bushing

705002153

$11.06
