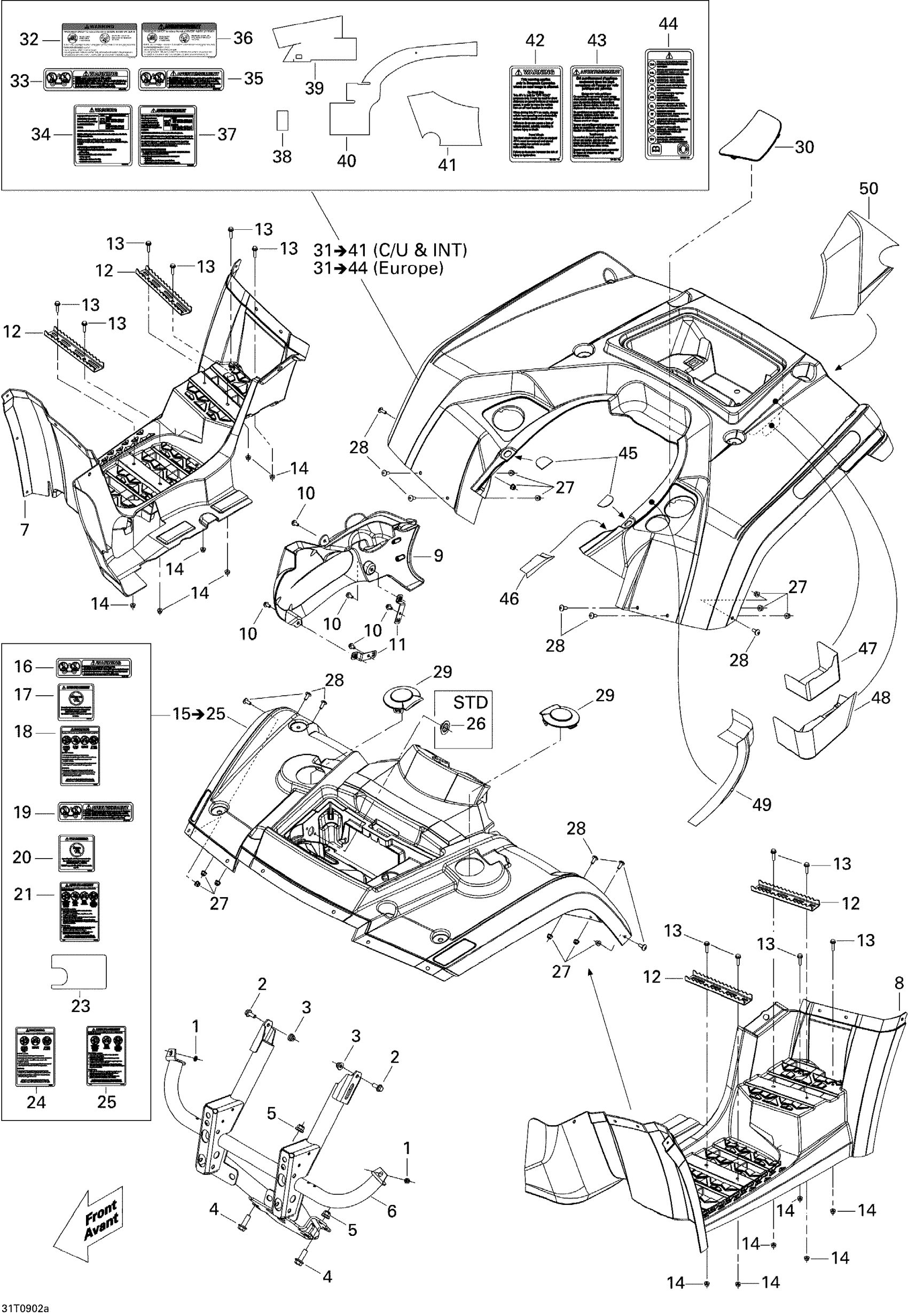

Can-Am Outlander Max 400 EFI, 2009 Body And Accessories 1 Diagram

#

Description
Price

1

Push Nut

732610072

$1.72

2

Hex. Flange Screw M8 X 20

207682044

$0.92

3

Hex. Flange Elastic Nut M8

233281414

$1.14

4

Hex. Flange Screw M10 X 30

207603044

$1.70

5

Hex. Flange Elastic Nut M10

233201414

$1.26

6

Front Bumper

705003196

$299.97

7

RH Footboard

705002487

$170.74

8

LH Footboard

705003633

$170.74

9

Engine Cover

705003837

$36.89

10

Hex. Flange Screw M6 X 12

210261250

$1.56

11

Engine Cover Support

705003646

$7.69

12

Footrest

705003648

$41.51

13

Hex. Flange Screw M6 X 25

207662554

$1.48

14

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

15

Red Front Fender Kit | Includes 16 to 22, Viper Red

715002329

$189.97

15

Yellow Front Fender Kit | Includes 16 to 22, Yellow

715002330

$189.97

15

Front Fender Kit, Black | Includes 15 to 25, Black

715000778

Unavailable

16

Warning Decal, Load | English Version

704901089

Unavailable

17

Warning Decal, Under 16 Years Old | English Version

704901753

Unavailable

18

Warning Decal, Death And Injuries | English Version

704901749

Unavailable

19

Warning Decal, Load | French Version

704901090

Unavailable

20

Warning Decal, Under 16 Years Old | French Version

704901858

Unavailable

21

Warning Decal, Death And Injuries | French Version, North America & Int.

704901750

Unavailable

23

Reflective Sheet

705003830

$11.98

24

Warning Decal, Death And Injuries | Europe

704901751

Unavailable

25

WARNING DECAL, DEATH AND INJURIES - Call your local BRP dealership | French Version, Europe

704901752

Unavailable

26

PLASTIC CAP - Call your local BRP dealership | STD

293000103

$4.03

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

28

Torx Screw M6 X 16

250000755

$0.72

29

FRONT CAP - Call your local BRP dealership

705001999

$6.49

30

LH Rear Body Panel Cap

705017923

$12.68

31

REAR FENDER KIT, RED - Call your local BRP dealership | Includes 31 to 39, Viper Red

715000798

Unavailable

31

REAR FENDER KIT, RED - Call your local BRP dealership | Includes 28 to 38, Viper Red, Europe

715000800

$404.58

31

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 31 to 41, Yellow

715000793

Unavailable

31

REAR FENDER KIT, YELLOW - Call your local BRP dealership | Includes 28 to 38, Yellow, Europe

715000795

Unavailable

31

Rear Fender Kit, Black | Includes 31 to 41, Black

715000802

Unavailable

32

WARNING DECAL, PASSENGER - Call your local BRP dealership

704901762

Unavailable

33

Warning Decal, Load | English Version

704901089

Unavailable

34

WARNING DECAL, TIRE PRESSURE - Call your local BRP dealership

704902402

Unavailable

35

Warning Decal, Load | French Version

704901090

Unavailable

36

WARNING DECAL, PASSENGER, FRENCH - Call your local BRP dealership | French Version

704901763

Unavailable

37

Warning Decal, Tire Pressure | French Version

704902403

Unavailable

38

Heat Shield | Europe

517305451

$2.18

39

REFLECTIVE SHEET - Call your local BRP dealership

705002189

$9.20

40

Reflective Sheet

705002085

Unavailable

41

REFLECTIVE SHEET - Call your local BRP dealership

705003087

Unavailable

42

WARNING DECAL, PUBLIC ROADS USE - Call your local BRP dealership | English Version

704901444

Unavailable

43

Warning Decal, Public Roads Use | French Version

704901158

Unavailable

44

WARNING DECAL, MULTILINGUAL - Call your local BRP dealership | Europe

704901177

Unavailable

45

RUBBER PAD - Call your local BRP dealership

705002219

$6.49

46

Heat Shield | Europe

517305451

$2.18

47

Reflective Sheet

705002191

$9.22

48

REFLECTIVE SHEET - Call your local BRP dealership

705002189

$9.20

49

Reflective Sheet

705002085

Unavailable

50

REFLECTIVE SHEET - Call your local BRP dealership

705003087

Unavailable
