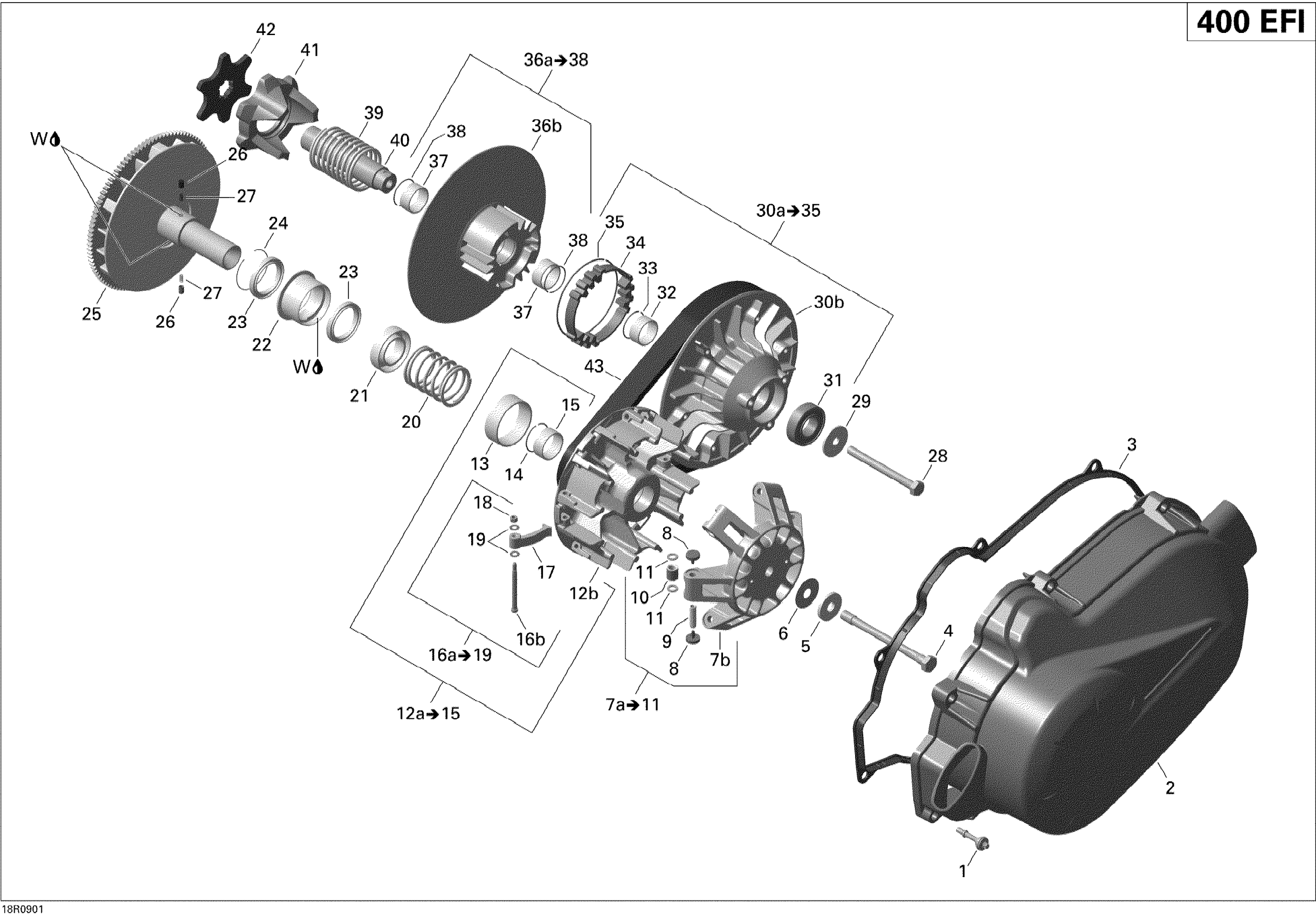

Can-Am Outlander Max 400 EFI, 2009 Transmission Diagram

#

Description
Price

1

Allen Screw M6 x 30,5

420440561

$3.67

2

CVT Cover

420610428

$226.12

3

CVT Cover Gasket

420630290

$32.28

4

Hex. Screw M12 X 140

420641812

$27.66

5

Spring Washer

420627760

$11.98

6

Thrust Washer

420627920

$7.37

7a

Governor Cup Ass'y | Includes 6 to 9

420280522

$253.82

7b

Not Available As Spare Part - Friction Washer

Unavailable

8

Slider Shoe Set

420281296

$42.28

9

Roller Axle

417223257

$9.22

10

Roller

417223767

$7.37

11

Roller

417223767

$7.37

12a

Outer Haft

420280467

$198.43

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16a

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$138.59

16b

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Compression Spring

420238166

$36.89

21

Seat Spring

420627578

$28.57

22

Clutch

420257439

$64.58

23

Ball Bearing

420632377

$40.27

24

Retaining Ring

420245951

$4.72

25

Inner Half Ass'y

420280247

Unavailable

26

Spring Sleeve

420229577

$14.92

27

Compression Spring

420239135

$6.45

28

Hex. Screw M10 X 110

420441485

$11.98

29

Thrust Washer

420627594

$12.91

30a

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$356.39

30b

Not Available As Spare Part - Friction Washer

Unavailable

31

Ball Bearing

420932421

$26.89

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Torque Gear

420660124

$23.05

35

Retaining Ring

420245911

$5.98

36a

Inner Half Ass'y | Includes 33 to 35

420248233

$321.74

36b

Not Available As Spare Part - Friction Washer

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Compression Spring, Driven Pulley

420238173

$55.35

40

Driven Pulley Shaft

420220914

$124.58

41

Cam

420280250

$41.51

42

Cam Plate

420627586

$46.12

43

Drive Belt

422280283

$103.94

W

Isoflex Grease, TOPAS NB52, 50 g

293550021

$48.72
