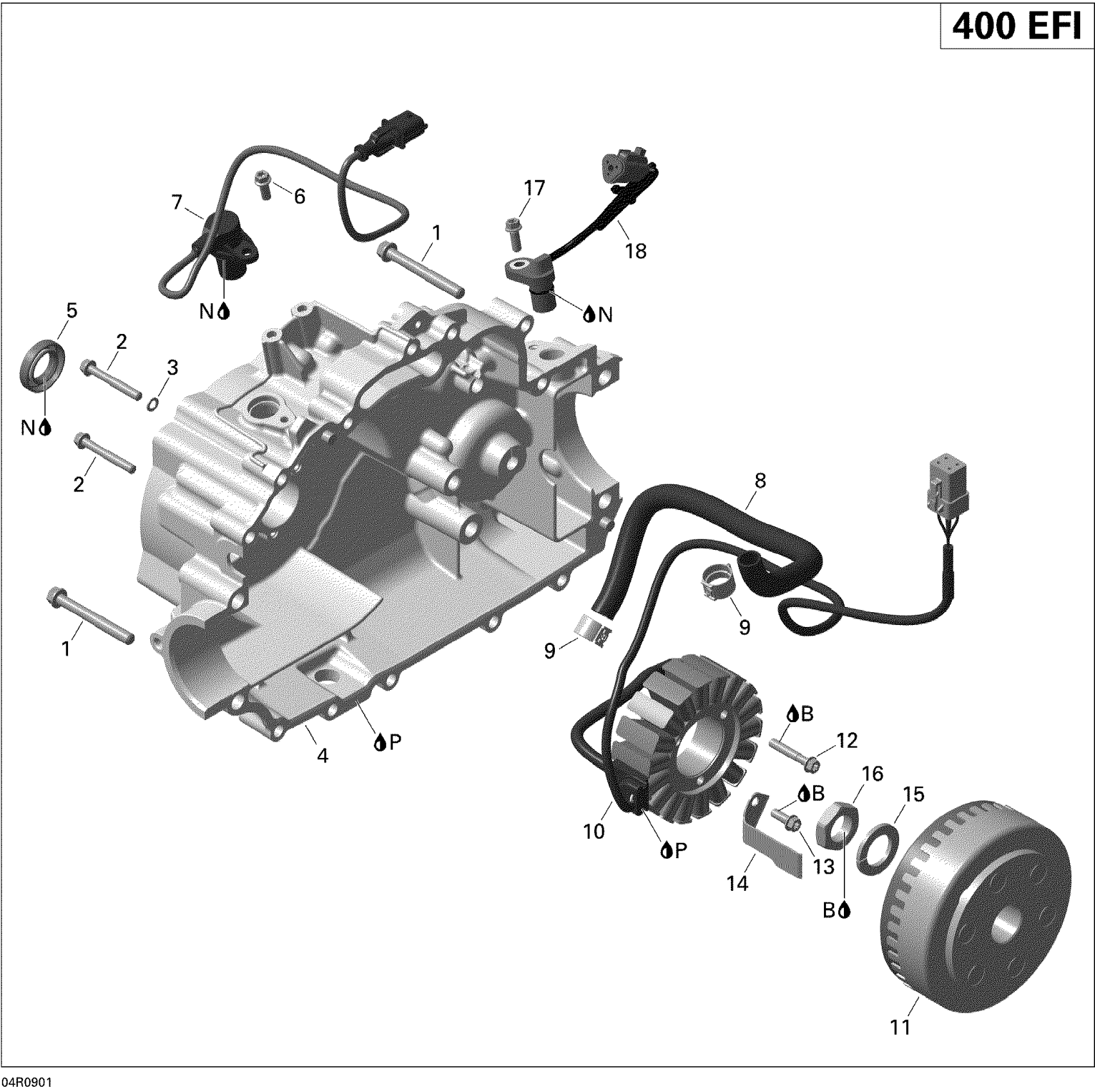

Can-Am Outlander Max 400 EFI, 2009 Magneto Diagram

#

Description
Price

1

Torx Flange Screw M8 X 65

420440402

$7.23

2

Torx Flange Screw M6 X 45

420440324

$0.81

3

Seal Washer

420230415

$1.77

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Oil Seal

420930392

$11.77

6

Torx Flange Screw M6 X 16

420440162

$3.11

7

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$92.92

8

Not Available As Spare Part - Friction Washer

Unavailable

9

CLIP - Call your local BRP dealership

420960892

Unavailable

10

Stator Plate, 420W

420685920

$284.99

11

MAGNETO FLYWHEEL - Call your local BRP dealership

420296903

$531.51

12

Torx Flange Screw M6 X 35

420440274

$0.83

13

Torx Flange Screw M6 X 16

420440162

$3.11

14

Inner Cable Cover

420251270

$10.98

15

Lock Washer, 22 mm

420945759

$1.55

16

Hex. Nut, M22 X 1.5

420842239

$14.27

17

Torx Flange Screw M6 X 16

420440162

$3.11

18

Camshft Position Sensor Ass'y

420265727

$104.49

B

Loctite 243, 10 ml

293800060

$20.77

N

Grease, Super Lube

293550030

$24.67

P

Loctite 5910, 300 ml

293800081

$57.99
