Description

Price

1

Crankshaft Ass'y

420296671

$679.97

2

Woodruff Key 4 X 5

420246570

$3.29

3

Connecting Rod Ass’y | Includes 3 to 4

420217425

$232.64

4

Connecting Rod Screw M8 X 1

420641645

$13.58

5

Plain Bearing 40 X 43 X 15

420233980

$26.89

6

BALANCE SHAFT ASS'Y - Call your local BRP dealership

420620035

Unavailable

7

Piston Ass'y, 90.958 mm | 400HO / Includes 7 to 8

420685714

$163.34

7

Piston Ass'y, Oversize, 91.208 mm | Includes 7 to 8

420296776

$163.34

8

Piston Ring Set | 400HO

420296774

$81.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Piston Pin

420216270

$26.99

10

Piston Circlip

420845106

$3.52

11

Gasket

420630210

$12.42

12a

Cylinder Ass'y | 400HO / Includes 12 to 13

420613586

Unavailable

12b

Not Available As Spare Part - Friction Washer

Unavailable

13

Drive Pin 5 X 10

420929650

$1.34

14

Gasket Set

420685129

$383.05

O

Not Available As Spare Part - Friction Washer

Unavailable

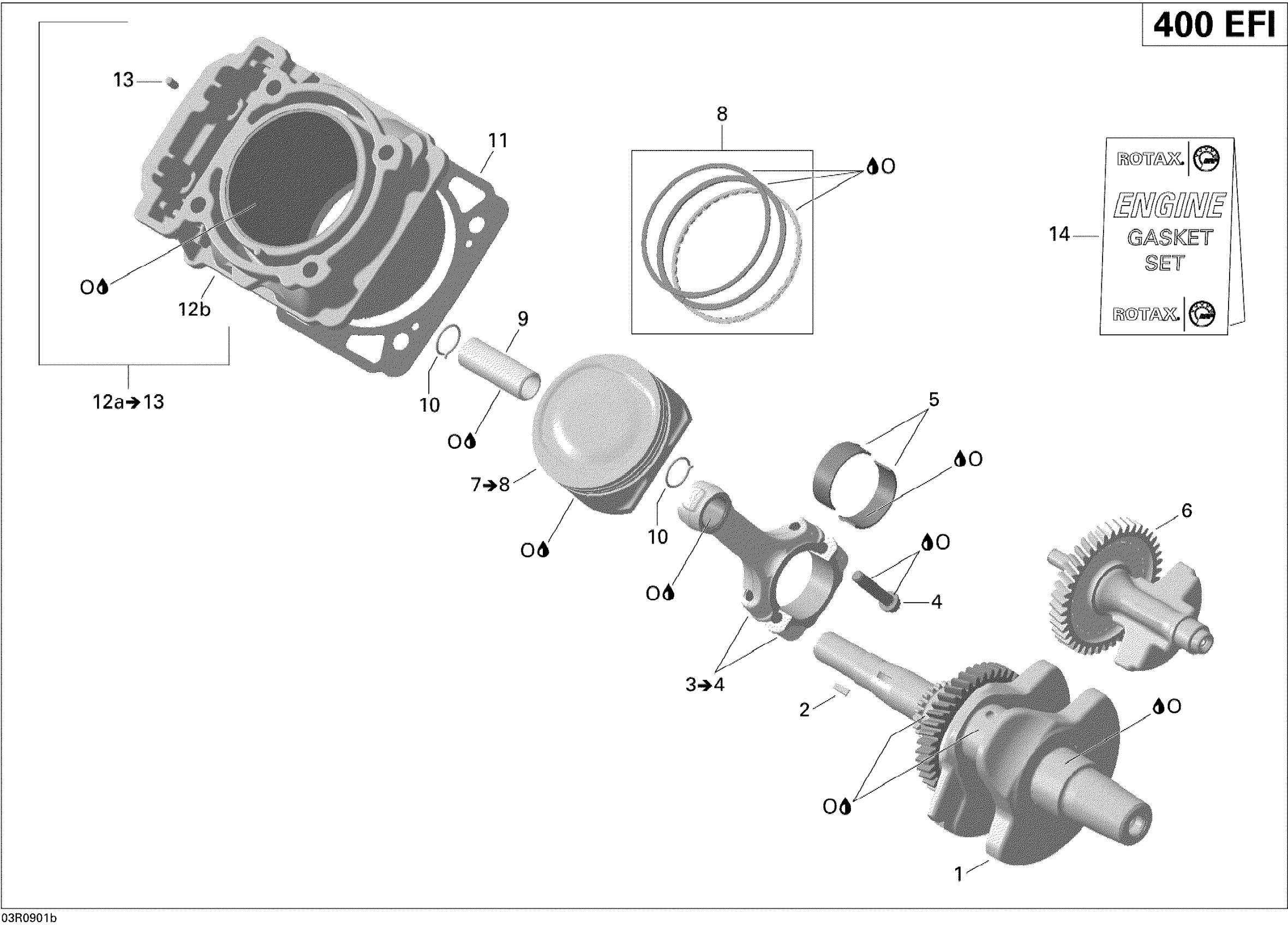

Can-Am Outlander Max 400 EFI, 2009 Crankshaft And Pistons Diagram
