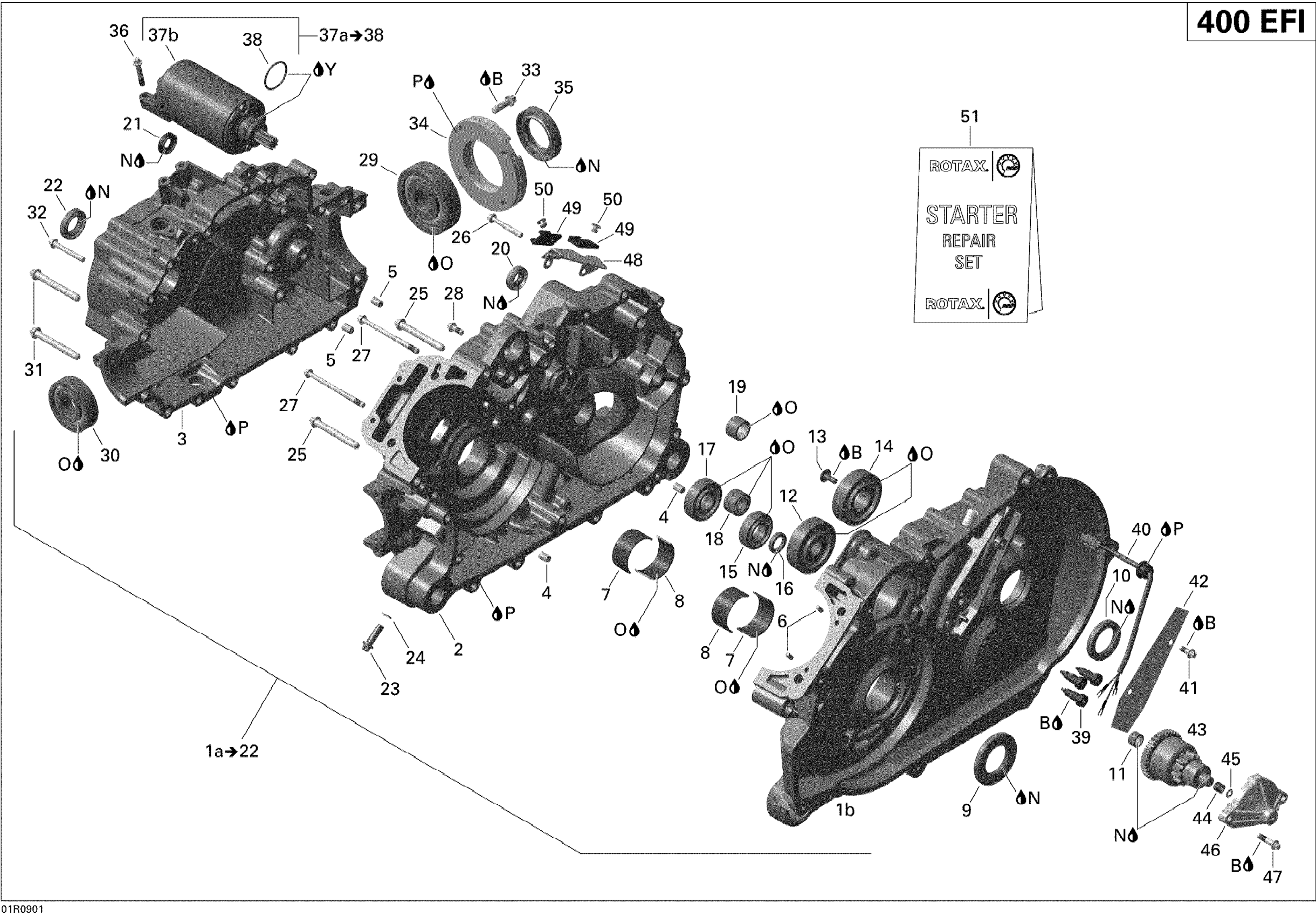

Can-Am Outlander Max 400 EFI, 2009 Crankcase Diagram

#

Description
Price

1a

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22

420296761

Unavailable

1b

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

$3.07

5

Center Pin 8 X 12

420632010

$3.07

6

Drive Pin 5 X 10

420929650

$1.34

7

Plain Bearing

420233960

$22.79

8

Plain Bearing

420233965

$22.79

9

Oil Seal

420630152

$16.12

10

Oil Seal

420950089

$18.43

11

Needle Bushing

420232482

$15.57

12

Ball Bearing

420632295

$45.12

13

Torx Screw M6 X 16

420241529

$1.56

14

Ball Bearing

420932822

$28.97

15

Ball Bearing 6302

420232291

$28.43

16

Oil Seal

420250130

$17.66

17

Ball Bearing 6204

420932433

$22.28

18

Needle Bushing

420232085

$36.09

19

Needle Bushing

420832240

$19.94

20

Oil Seal

420250450

$16.89

21

Oil Seal

420650315

$9.62

22

Oil Seal

420930392

$11.77

23

Torx Flange Screw M8 X 25

420440372

$4.00

24

Sealing Ring

420950141

$1.64

25

Torx Flange Screw M8 X 65

420440402

$7.23

26

Torx Flange Screw M6 X 45

420440324

$0.81

27

Torx Flange Screw M6 X 85

420641228

$6.11

28

Torx Flange Screw M6 X 16

420440162

$3.11

29

Ball Bearing 6405

420632280

$93.82

30

Ball Bearing

420932822

$28.97

31

Torx Flange Screw M8 X 65

420440402

$7.23

32

Torx Flange Screw M6 X 45

420440324

$0.81

33

Torx Flange Screw M8 X 25

420440372

$4.00

34

Bearing Cover

420610243

$55.35

35

Oil Seal

420650682

$18.43

36

Torx Flange Screw M6 X 35

420440274

$0.83

37a

Electric Starter | Includes 37 to 38

420684283

$252.69

37b

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Position Switch

420241856

$35.14

40

Wiring Harness

420265831

$50.74

41

Torx Flange Screw M6 X 16

420440162

$3.11

42

Cover Sheet

420251290

$10.98

43

Starter Drive Assembly

420684052

$267.66

44

Spring

420938204

$5.29

45

Washer 5.3

420927574

$1.85

46

Reduction Cover Gear

420610891

$23.05

47

Hex. Screw M6 X 25

420240034

$1.56

48

Retaining Plate

420251491

$6.92

49

Connector Bracket

420260590

$11.98

50

Blind Rivet

420243010

$5.52

51

BRUSH KIT - Call your local BRP dealership

420266307

Unavailable

B

Loctite 243, 10 ml

293800060

$20.77

N

Grease, Super Lube

293550030

$24.67

O

Not Available As Spare Part - Friction Washer

Unavailable

P

Loctite 5910, 300 ml

293800081

$57.99

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.82
