Description

Price

1

MAIN HARNESS ASS'Y - Call your local BRP dealership | Europe Only, Includes 1 To 685

710000735

$479.97

32

Female Terminal

278000998

$3.48

44

Female Terminal

515175231

$4.12

54

Female Housing, 3 Circuits

515175495

$15.35

62

Female Terminal

278001014

$2.72

69

Female Housing, 3 Circuits

409209600

$35.35

70

Female Housing, 4 Circuits

409209700

$12.97

71

Not Available As Spare Part - Friction Washer

Unavailable

72

Not Available As Spare Part - Friction Washer

Unavailable

73

Wire Seal

278001013

$2.72

75

Female Terminal

409010700

$5.08

77

Female Terminal

409010300

$4.12

79

Female Terminal

710000038

$4.60

80

Male Terminal

278000230

$3.48

101

Open Barrel Terminal

278001392

$4.12

106

Male Housing, 2 Circuits

278001005

$15.57

110

Male Terminal

278000631

$4.12

115

Male Housing

278002378

$10.91

127

Male Lock, 3 Circuits

409207600

$3.02

138

Sealing Cap

293000052

$2.55

139

MALE TERMINAL - Call your local BRP dealership

409014800

$3.14

142

MALE HOUSING, 3 CIRCUITS - Call your local BRP dealership

710000044

$23.51

154

MALE LOCK, 3 CIRCUITS - Call your local BRP dealership

710000043

$5.46

186

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

191

Fuse, 30 Amperes

410917200

$3.22

192

Fuse, 20 Amperes

409003900

$3.22

196

Tie Wrap 142 mm

293750002

$0.88

227

Male Terminal

409004300

$5.46

229

Female Terminal

278000223

$2.55

231

Female Housing, 2 Circuits

278000217

$7.59

238

Male Housing, 3 Circuits

278000273

$7.59

242

Wire Seal

278000218

$3.48

253

Tubing 6 Mm 3000Mm Long

219704425

$13.14

254

Was 409901700 Tubing (9 mm)

219704399

$79.97

255

Was 409901800 Tubing (13 mm)

219704400

$9.40

256

Tubing 16 Mm 1000Mm Long

219704408

$6.23

257

Was 409901600 Tubing 19mm

219704398

$89.97

258

Tubing 10 MM 1000MM Long

219704407

$2.20

280

Female Terminal

409012100

$3.73

284

Seal

409012300

$4.38

285

HOUSING-TAB - Call your local BRP dealership

710000078

$19.77

287

Cap

710000080

$6.48

295

Female Terminal | DS 650 X

278001009

$2.55

296

Insulated Sheath

278000770

$7.60

297

Insulated Sheath

278001007

$3.22

300

Fuse, 15 Amperes

278000343

$2.72

301

Not Available As Spare Part - Friction Washer

Unavailable

318

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

$29.20

319

Male Terminal

515175568

$7.48

333

Fuse Holder

278001325

$8.57

334

Female Housing, 6 Circuits

710000081

$8.29

337

Female Terminal

710000113

$6.03

339

Male Housing, 1 Circuit

278001012

$12.65

346

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

$2.86

355

Female Housing, 2 Circuits

515175658

$15.35

387

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

394

Female Terminal Housing, 3 Circuits

710000275

Unavailable

395

Female Terminal

710000274

$8.98

396

Female Terminal Housing, 4 Circuits

710000272

$10.14

397

Lock, 4 Circuits

710000273

$8.98

409

Plug

515175812

$1.70

410

FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership

409204600

Unavailable

411

Retainer Block

515175802

$10.66

412

Wire Seal

515175803

$2.41

414

LOCK - Call your local BRP dealership

515175805

$5.74

415

Female Terminal

515175806

$0.81

442

Male Housing, 4 Circuits

710000329

$14.75

443

Female Terminal

710000335

$1.80

444

MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000336

$14.65

445

JOINT SEAL - Call your local BRP dealership

710000337

$7.32

447

SECONDARY LOCK - Call your local BRP dealership

710000339

$14.65

450

CAP - Call your local BRP dealership

710000343

$6.49

452

HOUSING COVER - Call your local BRP dealership

710000342

$10.74

456

Cushion

278000805

$3.22

457

FEMALE TERMINAL - Call your local BRP dealership

710000356

$8.94

458

Female Terminal

710000357

$6.03

498

Female Housing

710000399

$14.02

499

Wire Seal

710000402

$4.42

500

WIRE SEAL - Call your local BRP dealership

710000403

Unavailable

506

Female Terminal

710000421

$5.46

509

Female Terminal Housing, 6 Circuits

710000474

Unavailable

525

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

527

Shrink Tubing

710000484

Unavailable

528

Not Available As Spare Part - Friction Washer

Unavailable

530

Not Available As Spare Part - Friction Washer

Unavailable

579

Wire Seal

710000504

$4.60

612

Female Housing

710000562

Unavailable

641

Male Housing, 2 Circuits

710000667

$7.48

685

FEMALE TERMINAL - Call your local BRP dealership

710000782

$4.68

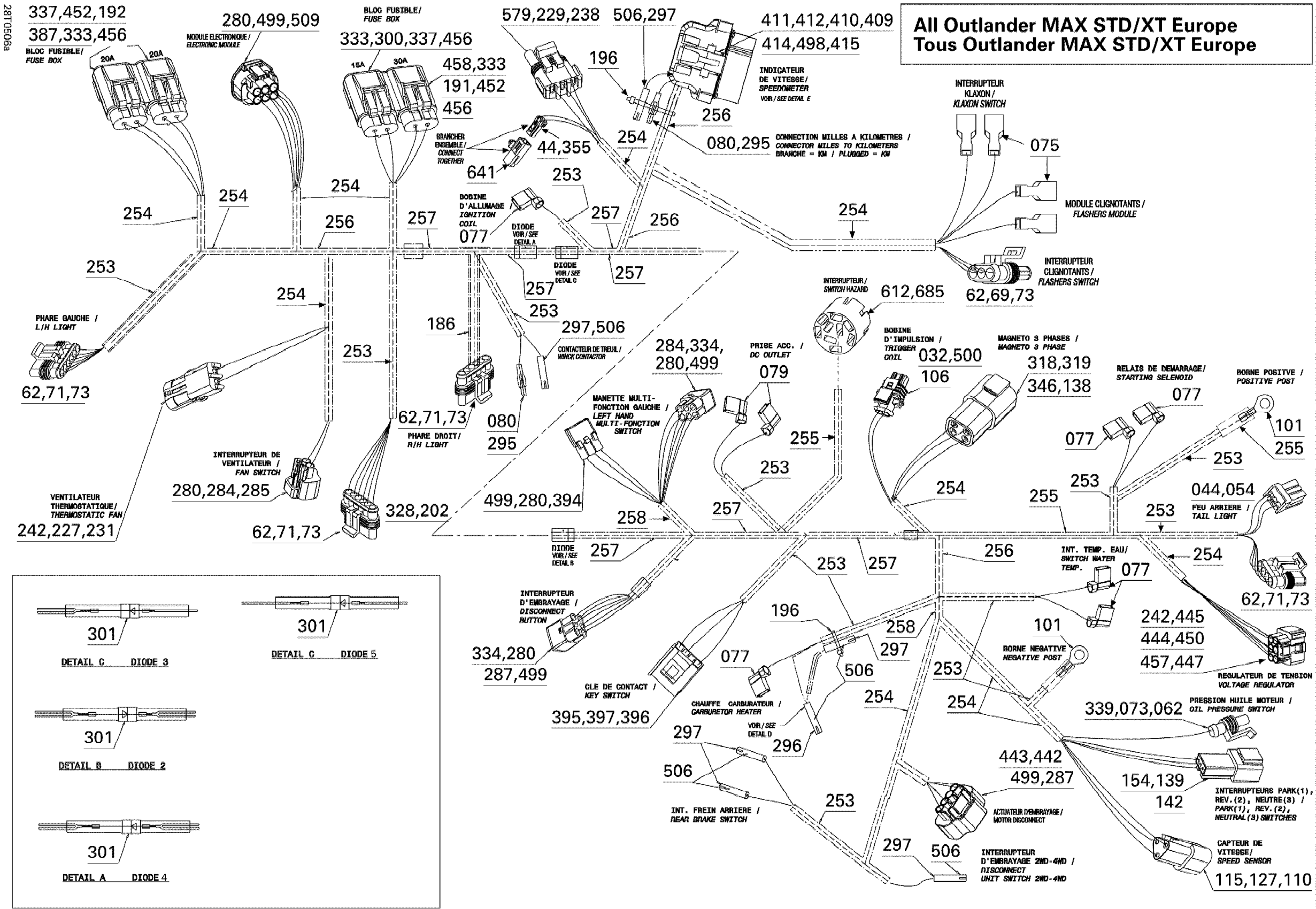

Can-Am Outlander MAX 400, 2005 Main Harness Europe Diagram
