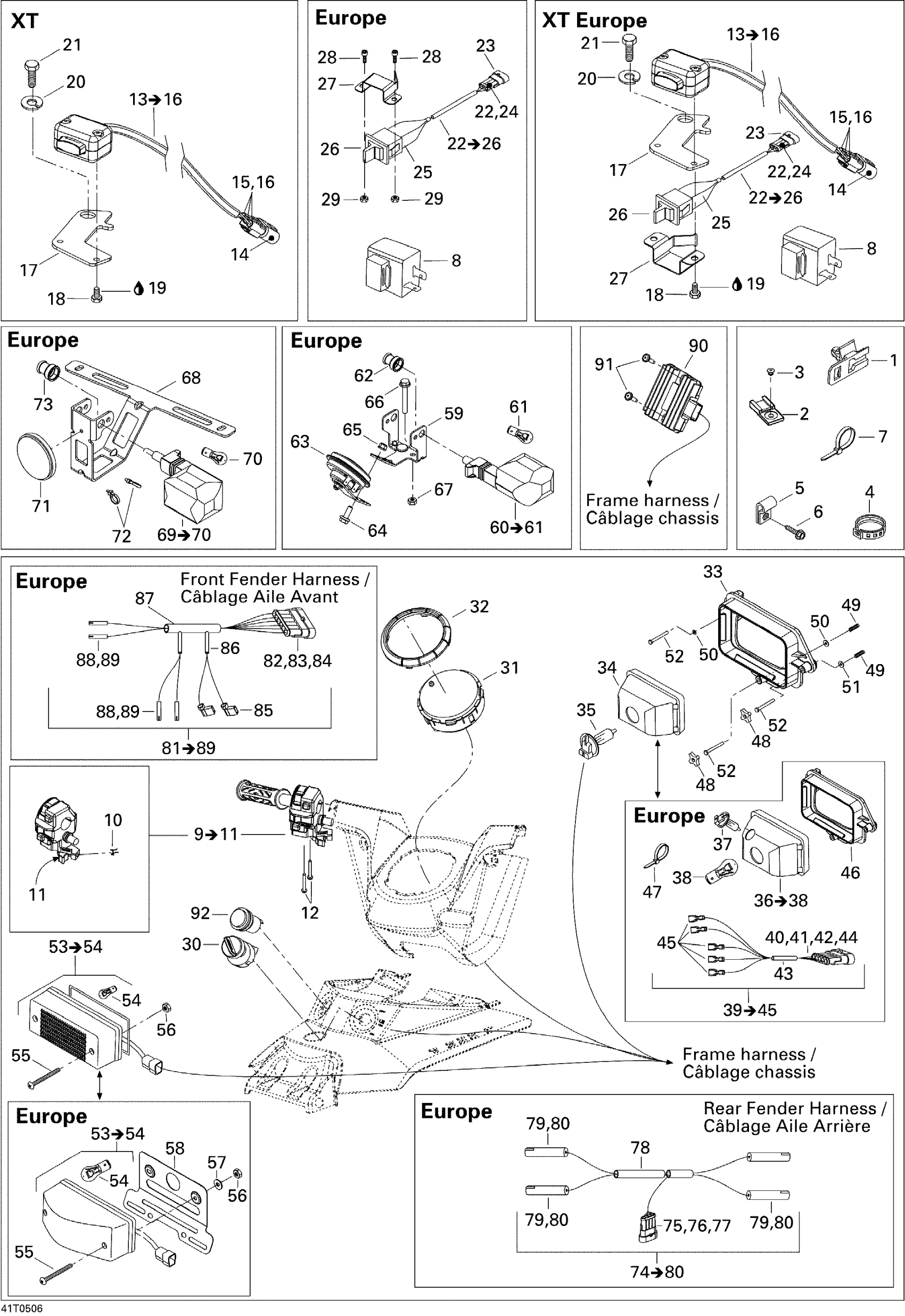

Can-Am Outlander MAX 400, 2005 Electrical Accessories Diagram

#

Description
Price

1

Housing Support

515175283

$8.43

2

Clip

270000141

$8.33

3

Pop Rivet 3/16"

390402400

$0.25

4

Oetiker Clamp

293650100

$2.74

5

CLAMP - Call your local BRP dealership

705600311

Unavailable

6

Hex. Flange Screw M6 X 16

210261650

$1.22

7

Tie Wrap 94 mm | 4X4

293750001

$0.83

7

Tie Wrap 142 mm

293750002

$0.88

7

Tie-Rap 173 mm

293750009

$0.85

7

Tie-Rap 180 mm

414115200

$0.09

7

Tie Wrap 368 mm

293750008

$0.85

8

FLASHER UNIT - Call your local BRP dealership | Europe Models

710000581

Unavailable

9

Multi-Fonction Handle | Includes 9 To 11

710000311

Unavailable

10

CLIP - Call your local BRP dealership

710000631

Unavailable

11

CHOKE LEVER - Call your local BRP dealership

710000632

Unavailable

12

Socket Head Screw M5 X 35

205053588

$1.56

13

WINCH INTERRUPTER - Call your local BRP dealership | XT Models, Includes 13 To 16

710001001

Unavailable

14

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

15

Male Terminal | XT Models

278000222

$2.55

16

Wire Seal

278001065

$6.03

17

WINCH INTERRUPTER SUPPORT - Call your local BRP dealership | XT Models

710000755

Unavailable

18

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.40

18

Hex. Screw | Europe XT Models

250000224

Unavailable

19

Loctite 243, 10 ml

293800060

$20.77

20

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

21

HEX. SCREW M10 X 16 - Call your local BRP dealership

250000029

Unavailable

22

Flasher Switch | Europe Models, Includes 22 To 26

710000610

Unavailable

22

Male Terminal | Europe Models

409012900

$3.22

23

Housing

710000568

$10.83

24

Wire Seal

278001013

$2.72

25

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

25

SHRINK TUBING - Call your local BRP dealership

710000482

Unavailable

26

FLASHER SWITCH - Call your local BRP dealership | Europe Models

710000555

Unavailable

27

Switch Support | STD Europe Models

710000753

Unavailable

28

Socket Head Screw M4 X 10 | 400HO (Europe)

205041044

$1.09

29

Elastic Stop Nut M4

232541414

$0.48

30

Switch_Ignition

710007867

$87.66

30

Key, Groove on Left Side

715900019

$21.42

31

SPEEDOMETER - Call your local BRP dealership

710000805

Unavailable

31

Speedometer | Europe Models

710000761

Unavailable

32

TRIM RING - Call your local BRP dealership

710000353

Unavailable

33

RH Headlight Support

710000236

Unavailable

33

LH HEADLIGHT SUPPORT - Call your local BRP dealership

710000277

Unavailable

34

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

35

BULB - Call your local BRP dealership

710000176

Unavailable

36

Front Light | Europe Models, Includes 36 To 38

710000593

Unavailable

37

BULB - Call your local BRP dealership | Europe Models

710000663

Unavailable

38

Bulb, headlight | Europe Models

710000665

Unavailable

39

Light Harness | Europe Models, Includes 39 To 45

710000763

Unavailable

40

Male Terminal | Europe Models

409012900

$3.22

41

Housing | Europe Models

710000779

$23.05

42

Wire Seal

278001013

$2.72

43

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

44

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable

45

Female Terminal | Europe Models

710000764

Unavailable

46

RH Headlight Support

710000236

Unavailable

46

LH HEADLIGHT SUPPORT - Call your local BRP dealership

710000277

Unavailable

47

Tie Wrap 94 mm | 4X4

293750001

$0.83

48

Handle

572106600

$9.31

49

SPRING - Call your local BRP dealership

710000285

Unavailable

50

Flat Washer 4 mm, Stainless

234042600

$0.92

51

Flat Washer 4 mm

234040600

$0.46

52

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

53

Tail Light Housing Ass'y | Includes 17 to 20

710000711

$92.28

53

Tail Light Ass'y | Europe Models, Includes 53 To 54

710000760

$55.35

54

Not Available As Spare Part - Friction Washer

Unavailable

55

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

56

Hex. Flange Elastic Nut M5

233251414

$1.66

56

Hex. Nut M6

232061600

$0.91

57

Flat Washer

224061121

$0.44

58

Plate Support | Europe Models

705001668

Unavailable

59

Bracket | Europe Models

705001734

Unavailable

60

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

60

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

61

Flasher Bulb | Europe Models

710000662

Unavailable

62

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

63

Horn | Europe Models

710000783

Unavailable

64

Hex. Flange Screw M6 X 16

207661644

$0.61

65

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

66

Hex. Flange Screw M6 X 45

207664544

$1.07

67

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

68

Flasher Bracket RH | Europe Models

710000768

Unavailable

68

Flasher Bracket LH | Europe Models

710000808

Unavailable

69

Flasher | Europe Models, Includes 60 To 61

710000547

Unavailable

69

Flasher | Europe Models, Includes 60 To 61

710000546

Unavailable

70

Flasher Bulb | Europe Models

710000662

Unavailable

71

REFLECTOR - Call your local BRP dealership | Europe Models

710000775

Unavailable

72

Tie Wrap 94 mm | 4X4

293750001

$0.83

73

CAP GUARD - Call your local BRP dealership | Europe Models

710001826

Unavailable

74

Rear Fender Harness | Europe Models, Includes 74 To 80

710000813

Unavailable

75

Male Terminal | Europe Models

409012900

$3.22

76

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

77

Wire Seal

278001013

$2.72

78

Tubing 6 Mm 3000Mm Long

219704425

$13.14

79

Insulated Sheath

278001007

$3.22

80

Female Terminal

710000421

$5.46

81

Front Fender Harness | Europe Models, Includes 81 To 89

710000814

Unavailable

82

Male Terminal | Europe Models

409012900

$3.22

83

Housing, 6 Circuits | Europe Models

710000815

Unavailable

84

Wire Seal

278001013

$2.72

85

Female Terminal

409010300

$4.12

86

Tubing 6 Mm 3000Mm Long

219704425

$13.14

87

Was 409901700 Tubing (9 mm)

219704399

$79.97

88

Insulated Sheath

278001007

$3.22

89

Female Terminal

710000421

$5.46

90

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

91

Hexagonal Head Screw

210262050

$1.74

92

Outlet Power Kit, 12 Volts

861507200

$30.52
