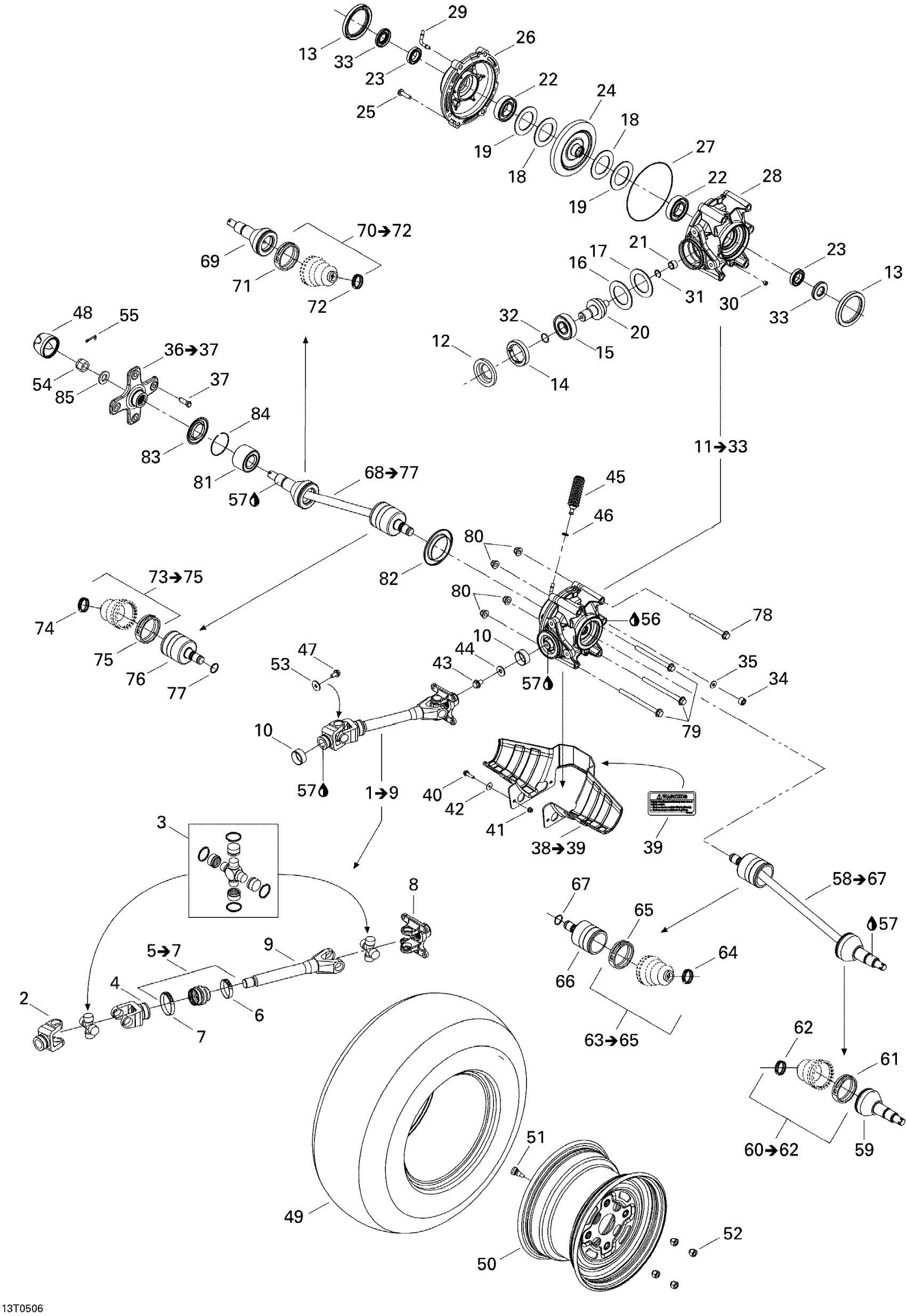

Can-Am Outlander MAX 400, 2005 Drive System, Rear Diagram
#
4
Not Available As Spare Part - Friction Washer
Unavailable
5
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
6
Collar | 4X4
705400148
Unavailable
7
Oetiker Gear Clamp 44.0MM | 4X4
293650138
Unavailable
8
DISC JOINT - Call your local BRP dealership
705500351
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
Wear Ring | 4X4
705400036
Unavailable
11
Rear Differential Ass'y | Includes 11 to 33
705500503
Unavailable
12
Oil Seal | 4X4
705401481
Unavailable
13
OIL SEAL - Call your local BRP dealership
715500368
Unavailable
14
Nut | 4X4
705401603
Unavailable
15
Ball Bearing | 4X4
705500260
Unavailable
16
Pinion Gear Shim .022"
705500075
Unavailable
17
Pinion Gear Shim 1.67 mm
705502061
Unavailable
18
Shim | 4X4
705401604
Unavailable
19
Shim | 4X4
705401604
Unavailable
20
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
21
Needle Bearing | 4X4
705500261
Unavailable
22
Ball Bearing | 4X4
705401606
Unavailable
25
Screw | 4X4
705401601
Unavailable
26
REAR COVER - Call your local BRP dealership
705500326
Unavailable
32
O-Ring | 4X4
705500267
Unavailable
33
Gasket | 4X4
705401618
Unavailable
34
Fill Level Plug | 4X4
705500504
Unavailable
35
Copper Washer | 4X4
705500506
Unavailable
36
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
37
Wheel Stud M10 X 1.25 | 2X4
250300055
Unavailable
39
WARNING DECAL-ENGLISH-TRAILER - Call your local BRP dealership
704900766
Unavailable
40
Hex. Flange Screw M6 X 25
207662544
Unavailable
41
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
42
Flat Washer
250200082
Unavailable
43
Flange Screw M10 X 16, Scotch Grip | 4X4
250000060
Unavailable
45
Rubber Bellow | 4X4
705400552
Unavailable
47
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
48
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
49
Rear Tire | STD
705500441
Unavailable
49
Rear Tire | XT
705500598
Unavailable
50
REAR RIM, GREY - Call your local BRP dealership | STD
705500622
Unavailable
50
REAR RIM, GREY - Call your local BRP dealership | STD
705500622
Unavailable
51
Rim Valve With Cap
705400193
Unavailable
51
Rim Valve With Cap
705400193
Unavailable
52
Steel Wheel Nut
250100042
Unavailable
53
Washer
211200041
Unavailable
54
Hex. Flange Castellated Nut M18
232291413
Unavailable
56
JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4
779221
Unavailable
57
Synthetic Grease, 400 G
293550010
Unavailable
58
LH CV JOINT ASS'Y - Call your local BRP dealership | Includes 58 to 67
705500629
Unavailable
60
BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62
705500469
Unavailable
61
Not Available As Spare Part - Friction Washer
Unavailable
62
Not Available As Spare Part - Friction Washer
Unavailable
64
CLAMP - Call your local BRP dealership
705400409
Unavailable
65
CLAMP - Call your local BRP dealership
705400408
Unavailable
66
PLUNGING JOINT - Call your local BRP dealership
705500427
Unavailable
67
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
68
RH CV Joint Ass'y | Includes 68 to 77
705500630
Unavailable
70
BOOT WHEEL KIT - Call your local BRP dealership | Includes 60 to 62
705500469
Unavailable
71
Not Available As Spare Part - Friction Washer
Unavailable
72
Not Available As Spare Part - Friction Washer
Unavailable
74
CLAMP - Call your local BRP dealership
705400409
Unavailable
75
CLAMP - Call your local BRP dealership
705400408
Unavailable
76
PLUNGING JOINT - Call your local BRP dealership
705500427
Unavailable
77
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
78
Hex. Flange Screw M10 X 125
230602546
Unavailable
79
Hex. Flange Screw M10 X 135
230603546
Unavailable
80
Hex. Flange Elastic Nut M10
233201436
Unavailable
81
Ball Bearing
293350150
Unavailable
84
Circlip
293370019
Unavailable
85
Conical Spring Washer M18
250200171
Unavailable
