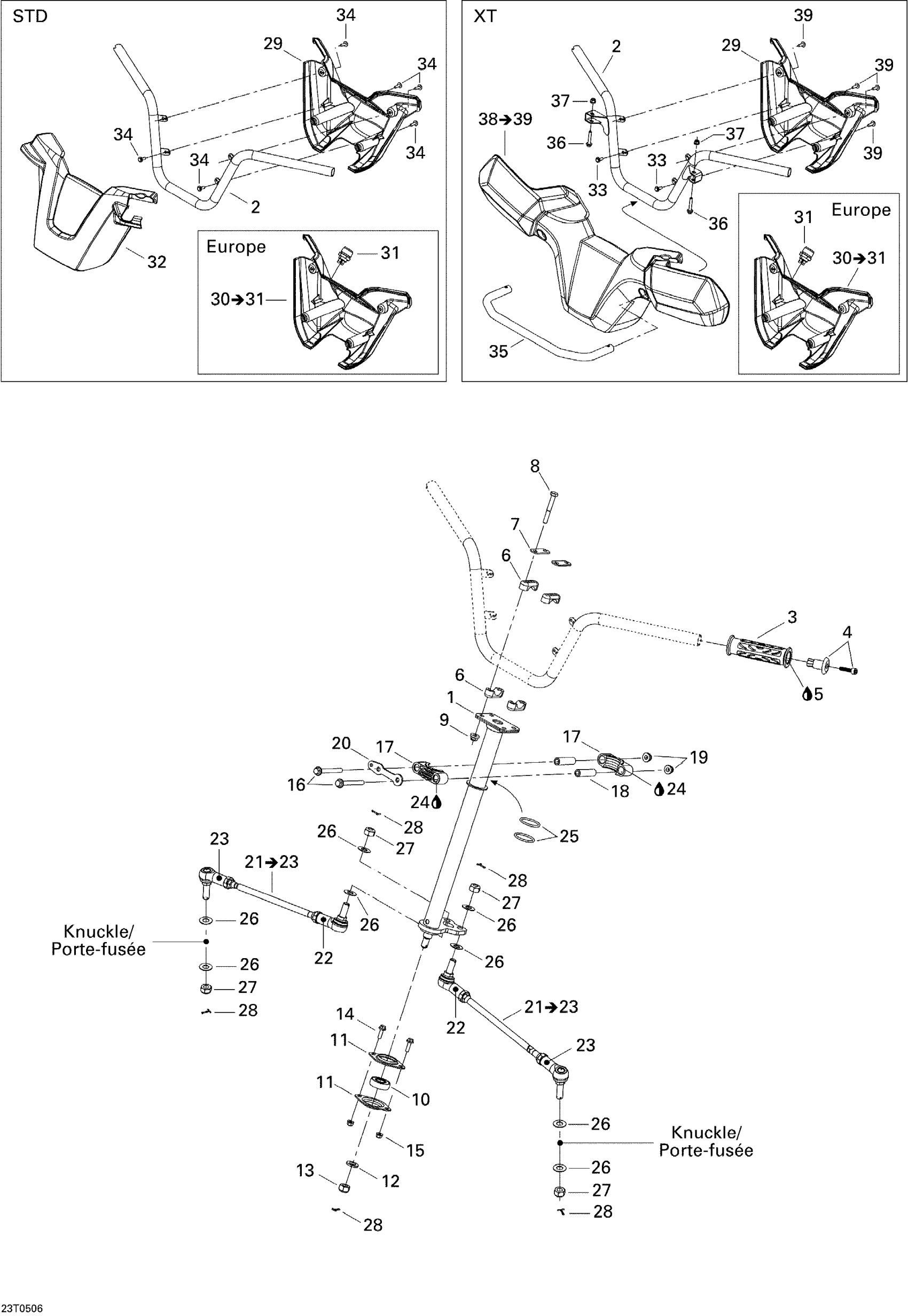

Can-Am Outlander MAX 400, 2005 Steering System Diagram

#

Description
Price

1

Main Tube

709401056

$119.97

2

Steering | STD

709401237

$64.58

2

HANDLEBAR PROT - Call your local BRP dealership | XT

715000271

Unavailable

3

Handle Grip

709400493

$14.75

4

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

5

Loctite 406, 7 Oz

293800100

$36.99

6

Steering Support

709400919

$20.74

7

Stiffner

709400509

$4.43

8

Hex. Screw M8 X 60

207086046

$2.30

9

Hex. Elastic Flange Nut M8

233281416

$1.25

10

Ball Bearing

709400439

$18.43

11

FLANGE, BEARING - Call your local BRP dealership

709400152

Unavailable

12

Flat Washer 12 mm

234021410

$0.68

13

Hex. Flange Elastic Nut M12

250000047

$1.56

14

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

16

Hex. Flange Screw M8 X 70

207687044

$6.11

17

Half Bushing

709400471

$13.59

18

BUSHING - Call your local BRP dealership

709400072

Unavailable

19

Hex. Flange Elastic Nut M8

233281414

$1.14

20

STOPPER PLATE - Call your local BRP dealership

709400053

Unavailable

21

Tie Rod Ass'y | Includes 21 to 23

709400190

Unavailable

22

Ball Joint, RH Threads

709400487

$50.34

23

LH Ball Joint

709402303

$35.14

24

Synthetic Grease, 400 G

293550010

Unavailable

25

O-Ring

293300068

$5.29

26

Hardened Washer

706200281

$2.34

27

Nut M12

250100099

$1.64

28

Cotter Pin

211400013

$0.32

29

BLACK REAR STEERING COVER - Call your local BRP dealership

709400313

$22.28

30

REAR COVER ASS'Y - Call your local BRP dealership | Includes 30 to 31 (Europe)

709400335

Unavailable

31

Push Button

415130372

$124.99

32

BLACK FRONT STEERING COVER - Call your local BRP dealership | STD

709400386

Unavailable

33

Torx Screw K50 X 16

250000720

$1.39

34

Torx Screw K50 X 16

250000720

$1.39

35

Accessories Support | XT

709400256

Unavailable

36

Hex. Flange Screw M6 X 35

207663544

$0.74

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT

703100217

Unavailable

39

Torx Screw K50 X 16

250000720

$1.39
