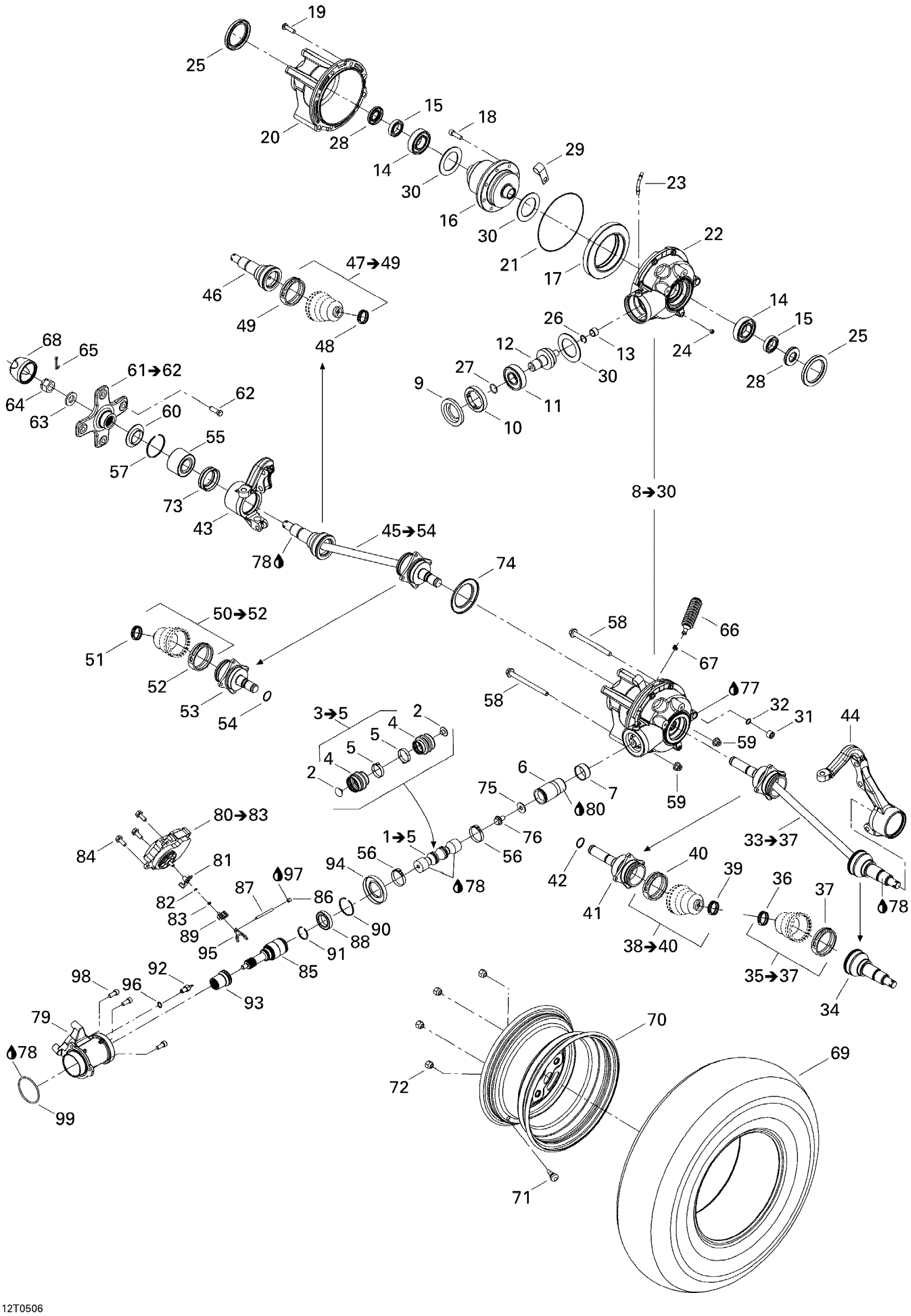

Can-Am Outlander MAX 400, 2005 Drive System, Front Diagram

#

Description
Price

1

Front Drive Axle Ass'y | 4X4 / Includes 1 to 5

705400912

$166.39

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Rubber Boot Kit | 4X4 / Includes 3 to 5

703500255

Unavailable

4

Collar | 4X4

705400148

Unavailable

5

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

6

Front Bushing Shaft Kit | 4X4

703500678

$101.46

7

Wear Ring | 4X4

705400036

$24.60

8

Front Differential Ass'y | 4X4 / Includes 8 to 30

705400260

Unavailable

9

Oil Seal | 4X4

705401481

$17.88

10

Nut | 4X4

705401603

$33.55

11

Ball Bearing | 4X4

705500260

$29.82

12

GEAR, 10 TEETH - Call your local BRP dealership | 4X4

705500268

Unavailable

13

Needle Bearing | 4X4

705500261

Unavailable

14

Ball Bearing | 4X4

705401606

$47.73

15

Ball Bearing | 4X4

293350044

$29.82

16

Ens Differentiel*Differential Kit | 4X4

703500871

$749.99

17

GEAR, 36 TEETH - Call your local BRP dealership | 4X4

705400192

Unavailable

18

RING GEAR SCREW - Call your local BRP dealership | 4X4

705400101

Unavailable

19

Screw | 4X4

705401601

$8.67

20

Front Cover | 4X4

705400133

Unavailable

21

Seal | 4X4

705500265

$15.64

22

Front Cover | 4X4

705400261

Unavailable

23

VENT VALVE - Call your local BRP dealership | 4X4

705500893

Unavailable

24

Drain Plug | 4X4

705500894

$10.24

25

Oil Seal | 4X4

293250137

Unavailable

26

RETAINING RING - Call your local BRP dealership | 4X4

705500269

Unavailable

27

O-Ring | 4X4

705500267

$6.06

28

Gasket | 4X4

705401618

$17.13

29

CLAMP - Call your local BRP dealership

705600311

Unavailable

30

Shim | 4X4

705401604

$51.46

31

Fill Level Plug | 4X4

705500504

$8.73

32

Copper Washer | 4X4

705500506

$0.42

33

RH CV JOINT - Call your local BRP dealership | 4X4 / Includes 34 to 43

705400349

Unavailable

34

CV JOINT - Call your local BRP dealership | 4X4

705400154

Unavailable

35

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$39.52

36

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

37

Clamp | 4X4

705400180

Unavailable

38

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$39.52

39

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

40

Clamp | 4X4

705400181

Unavailable

41

RH PLUNGING JOINT - Call your local BRP dealership | 4X4

705400156

Unavailable

42

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

43

LH KNUCKLE - Call your local BRP dealership | 4X4

709400132

Unavailable

44

RH KNUCKLE - Call your local BRP dealership | 4X4

709400133

Unavailable

45

LH CV Joint | 4X4 / Includes 46 to 55

705400350

Unavailable

46

CV JOINT - Call your local BRP dealership | 4X4

705400154

Unavailable

47

Boot Wheel Kit | 4X4 / Includes 36 to 38

705400127

$39.52

48

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

49

Clamp | 4X4

705400180

Unavailable

50

Boot Differential Kit | 4X4 / Includes 39 to 41

705400126

$39.52

51

CLAMP - Call your local BRP dealership | 4X4

705400064

Unavailable

52

Clamp | 4X4

705400181

Unavailable

53

PLUNGING JOINT - Call your local BRP dealership | 4X4

705400155

Unavailable

54

CIRCLIP - Call your local BRP dealership | 4X4

705400042

Unavailable

55

Ball Bearing

293350150

$50.34

56

Oetiker Gear Clamp 44.0MM | 4X4

293650138

$8.22

57

Circlip

293370019

$4.68

58

Hex. Flange Screw M10 X 125

230602546

$6.99

59

Hex. Flange Elastic Nut M10

233201436

$2.00

60

Wear Sleeve | 4X4

705501121

$6.73

61

LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66

705501713

Unavailable

62

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.18

63

Conical Spring Washer M18

250200171

$6.06

64

Hex. Flange Castellated Nut M18

232291413

$3.24

65

Cotter Pin

250400036

$2.00

66

Rubber Bellow | 4X4

705400552

$5.84

67

Tie Wrap 94 mm | 4X4

293750001

$0.96

68

WHEEL CAP - Call your local BRP dealership

705400012

Unavailable

69

Front Tire | Outlander XT

705400213

Unavailable

69

Front Tire | XT

705400326

$120.12

70

RIM_12 INCH X 6 - Call your local BRP dealership | Outlander STD & XT

705400355

Unavailable

70

RIM_12 INCH X 6 - Call your local BRP dealership | Outlander STD & XT

705400355

Unavailable

71

Rim Valve With Cap

705400193

$6.49

71

Rim Valve With Cap

705400193

$6.49

72

Steel Wheel Nut

250100042

$3.07

73

Oil Seal | 4X4

293250090

$21.61

74

WEAR SLEEVE - Call your local BRP dealership | 4X4

705400179

Unavailable

75

Flat Washer M10 | 4X4

250200014

$1.34

76

Flange Screw M10 X 16, Scotch Grip | 4X4

250000060

$3.49

77

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

$15.64

78

Synthetic Grease, 400 G

293550010

Unavailable

79

HOUSING - Call your local BRP dealership | 4X4

705400169

Unavailable

80

Actuator Kit | 4X4 / Includes 85 to 88

703500506

$383.55

81

Fork | 4X4

705400274

$15.64

82

Circlip | 4X4

293370042

$3.01

83

O-Ring | 4X4

293300108

Unavailable

84

Hex. Flange Screw M8 X 20, Scotch Grip | 4X4

250000137

$3.13

85

UNION SHAFT - Call your local BRP dealership | 4X4

705400917

Unavailable

86

Pressure Screw M8 X 8 | 4X4

206580890

$1.60

87

Dowell Pin | 4X4

250400025

$7.21

88

Ball Bearing | 4X4

705400249

$23.85

89

Slider | 4X4

705402139

$41.76

90

Circlip | 4X4

293370029

$4.85

91

Circlip | 4X4

293370030

$2.67

92

SWITCH - Call your local BRP dealership | 4X4

710000324

Unavailable

93

Coupling Sleeve | 4X4

705400389

$29.82

94

Oil Seal | 4X4

293250138

$22.36

95

Shifter Lever Plate | 4X4

705401553

$17.13

96

Copper Washer

705601628

$4.21

97

Loctite 243, 10 ml

293800060

$21.49

98

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.51

99

O-Ring

293300091

$6.96
