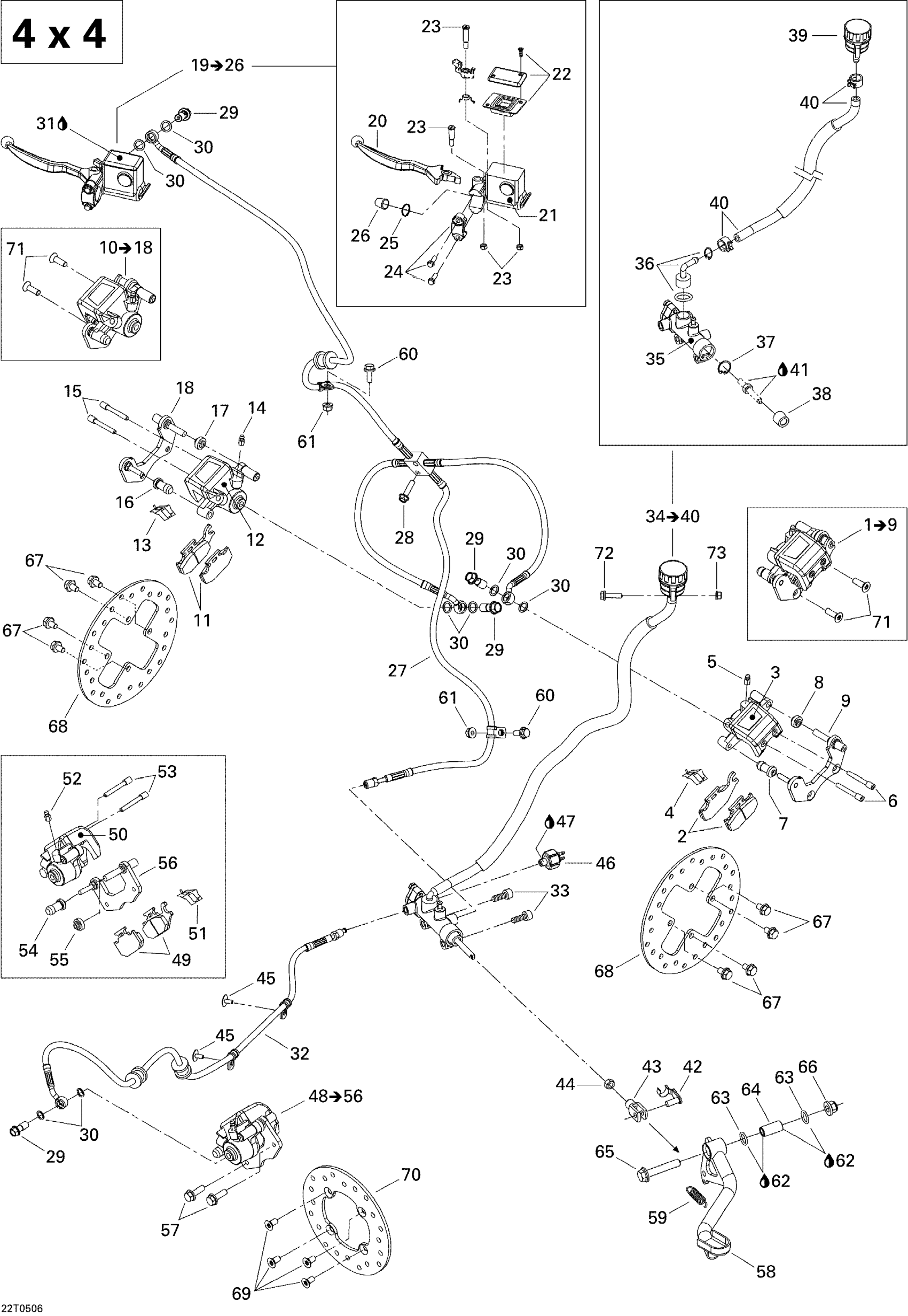

Can-Am Outlander MAX 400, 2005 Brakes Diagram

#

Description
Price

1

RH Caliper | Includes 1 to 9

705600575

Unavailable

2

Brake Pad Kit

705600349

$49.39

3

Piston Set

705600078

$36.89

4

Spring

705600079

$14.37

5

Bleeding Screw

705600080

$15.22

6

Pin Set (2)

705600081

$19.20

7

Compression Boot

705600082

$10.14

8

Compression Boot

705600083

$10.14

9

Not Available As Spare Part - Friction Washer

Unavailable

10

LH Caliper | Includes 10 to 18

705600576

$210.74

11

Brake Pad Kit

705600350

$49.39

12

Piston Set

705600078

$36.89

13

Spring

705600079

$14.37

14

Bleeding Screw

705600080

$15.22

15

Pin Set (2)

705600081

$19.20

16

Compression Boot

705600082

$10.14

17

Compression Boot

705600083

$10.14

18

LH Caliper Support

705600297

Unavailable

19

Front Master Cylinder | Includes 19 to 26

705600844

$212.28

20

Lever Arm

705600243

$50.74

21

PISTON KIT - Call your local BRP dealership

705600244

Unavailable

22

Cap Set

705600084

$23.05

23

Brake Lever Bolt Kit

705600246

$14.75

24

BRACKET KIT - Call your local BRP dealership

705600087

Unavailable

25

CIRCLIP - Call your local BRP dealership

705600088

Unavailable

26

COMPRESSION BOOT - Call your local BRP dealership

705600089

Unavailable

27

Front Hose

705600382

Unavailable

28

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

29

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

30

Copper Washer

705601628

$4.34

31

BRAKE FLUID, SRF, DOT 4 - Call your local BRP dealership

293600063

Unavailable

31

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

32

RIGID TUBE - Call your local BRP dealership

705600375

Unavailable

33

Socket Head Screw M8 X 20, Scotch Grip

250000136

$3.06

34

Rear Master Cylinder | Includes 33 to 40

705600254

$212.28

35

Piston Set

705600255

Unavailable

36

PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership

705600064

Unavailable

37

Circlip

705600068

Unavailable

38

Compression Boot

705600090

Unavailable

39

Oil Tank, Brake Fluid Reservoir

705600182

$36.89

40

OIL HOUSING HOSE - Call your local BRP dealership

705600262

Unavailable

41

Not Available As Spare Part - Friction Washer

Unavailable

42

Pin Kit

219702305

$26.62

43

Yoke

705600100

Unavailable

44

Hex. Nut M8

232081414

$0.60

45

Pop Rivet 3/16"

390406500

$0.70

46

Interrupteur *Brake Switch

710001345

Unavailable

47

Was 293800013 Loctite 56765

219704454

$65.35

48

Rear Caliper | Includes 48 to 56

705600577

$210.74

49

LH Brake Pad Kit

705600398

$49.39

50

Piston Set

705600399

Unavailable

51

Spring

705600079

$14.37

52

Bleeding Screw

705600080

$15.22

53

Pin Set (2)

705600081

$19.20

54

Compression Boot

705600082

$10.14

55

Compression Boot

705600083

$10.14

56

LH CALIPER SUPPORT - Call your local BRP dealership

705600298

Unavailable

57

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

58

BRAKE PEDAL - Call your local BRP dealership

705600265

Unavailable

59

BREAK PEDAL SPRING - Call your local BRP dealership

705600098

Unavailable

60

Hex. Flange Screw M6 X 16

207661644

$0.61

61

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

62

Synthetic Grease, 400 G

293550010

Unavailable

63

O-RING - Call your local BRP dealership

293300053

Unavailable

64

SPACER - Call your local BRP dealership

705600283

Unavailable

65

Hex. Flange Screw M10 X 55

207605544

$2.78

66

Hex. Flange Elastic Nut M10

233201414

$1.26

67

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

68

Disk Brake

705600603

$56.89

69

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

70

Disk Brake

705600604

$56.89

71

Torx Screw M8 X 25, Scotch Grip

250000143

$1.77

72

Hex. Flange Screw M6 X 25

207662544

$0.53

73

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
