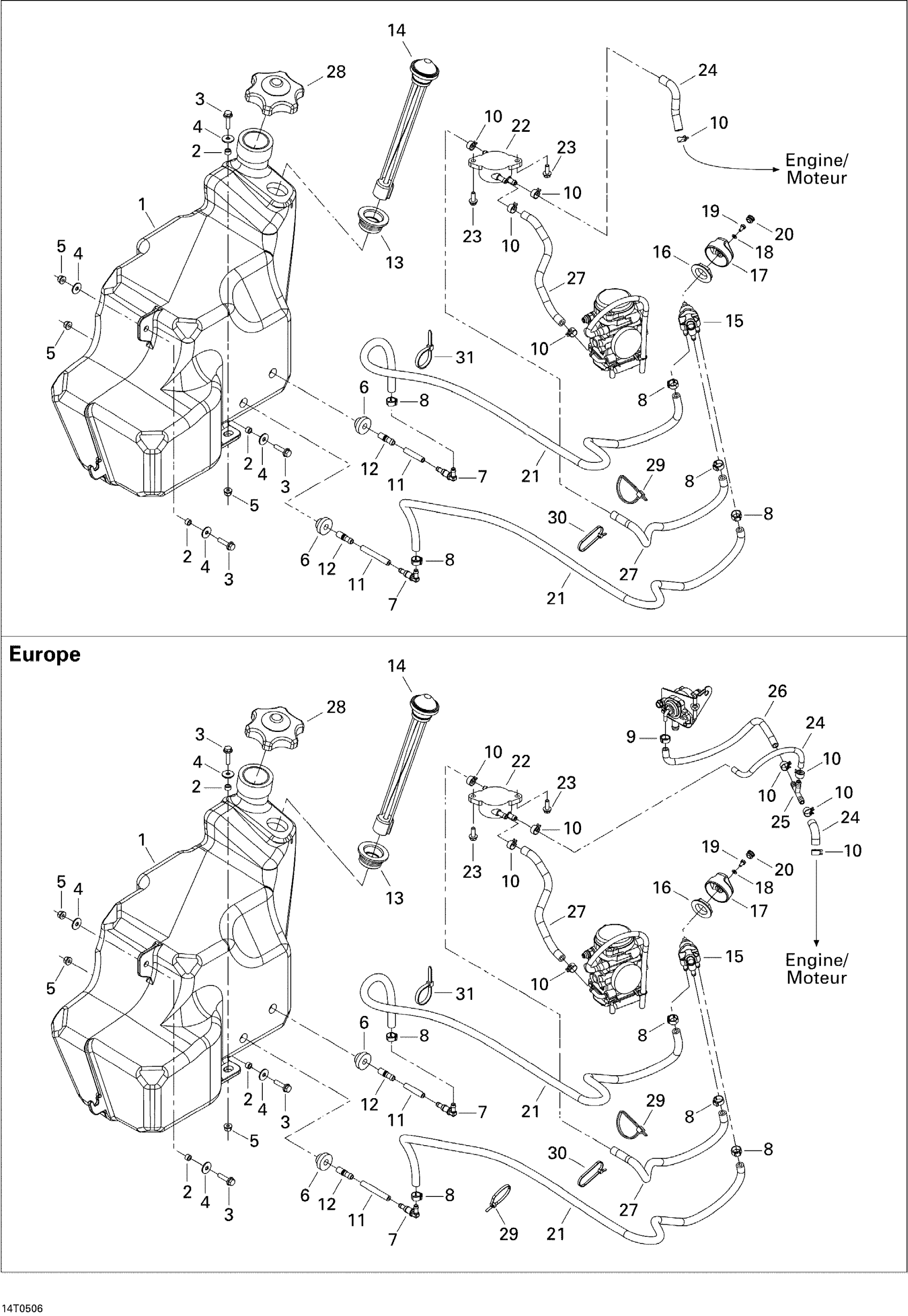

Can-Am Outlander MAX 400, 2005 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000062

Unavailable

2

Bushing | DS 650 X

293900104

$5.26

3

Hex. Flange Screw M6 X 25

207662544

$0.53

4

Flat Washer

250200082

$0.35

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Grommet

570045500

$6.32

7

Elbow Male Connector

414580600

$3.50

8

Oetiker Clamp

293650042

$1.40

9

Oetiker Clamp | Europe

293650044

$4.07

10

Spring Clamp

414415200

$0.83

10

Spring Clamp

414415200

$0.83

11

Polyurethane Hose 10000Mm Long

219704410

$46.12

12

Fuel Filter

414865700

$8.39

13

Grommet

293720058

$11.00

14

FUEL GAUGE - Call your local BRP dealership

709000083

Unavailable

15

Fuel Valve

275500098

$34.42

16

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

17

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

18

Flat Washer 4 mm

234040600

$0.46

19

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

20

Black, Cap

275500241

$2.76

21

Hose

219704549

$47.66

22

Fuel Pump

707200183

$80.74

23

Hex. Flange Screw M6 X 16

210261650

$1.22

24

PULSATION HOSE - Call your local BRP dealership

709000063

Unavailable

24

PULSATION HOSE - Call your local BRP dealership | Europe

709000115

Unavailable

25

T-Fitting | Europe

293710024

$12.82

26

PULSATION HOSE - Call your local BRP dealership | Europe

709000114

Unavailable

27

Hose

219704549

$47.66

28

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

29

Tie-Rap 180 mm

414115200

$0.09

29

Tie-Rap 180 mm

414115200

$0.09

30

Tie Wrap 142 mm

293750002

$0.88

31

Tie-Rap 173 mm

293750009

$0.85
