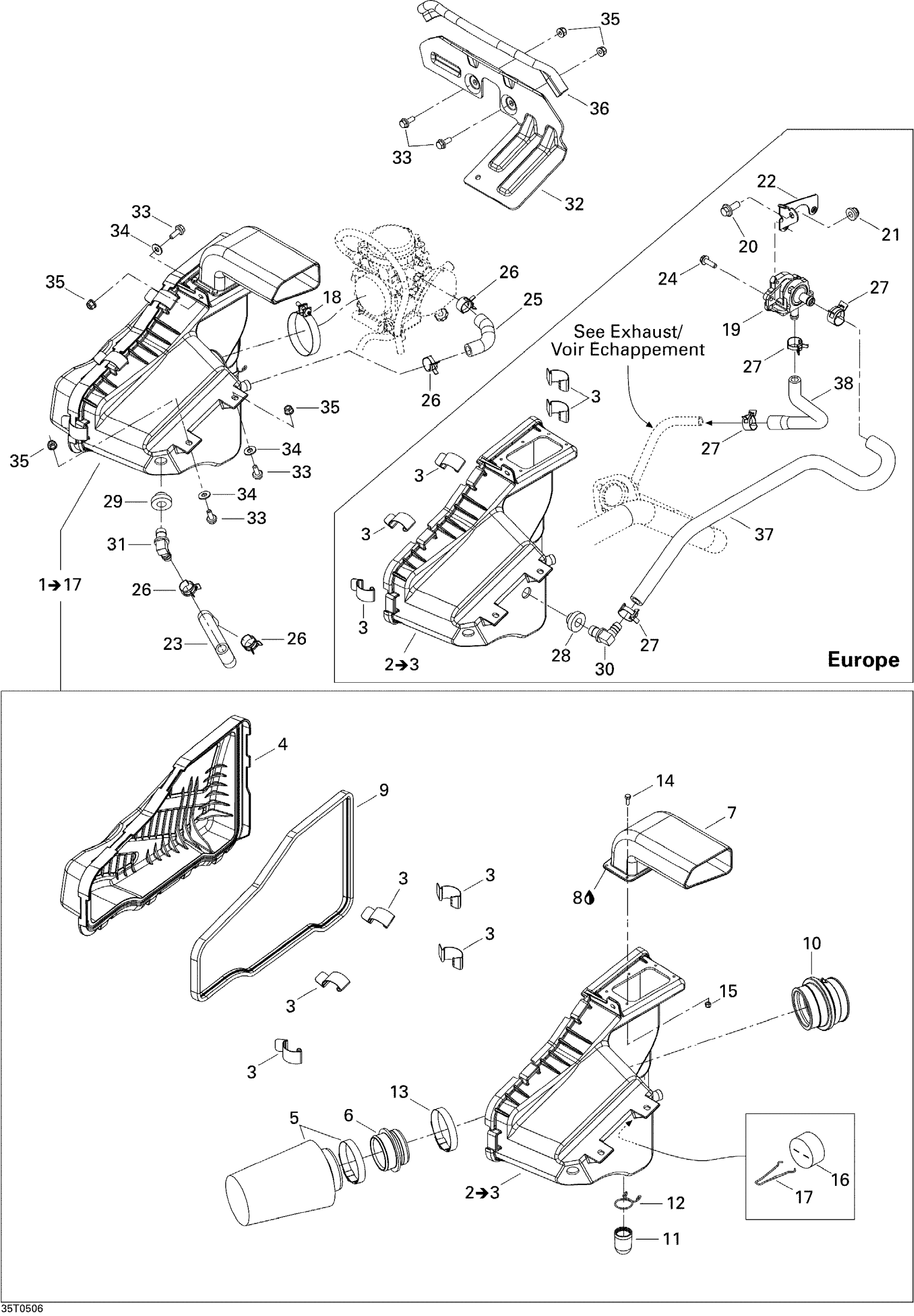

Can-Am Outlander MAX 400, 2005 Air Intake Diagram
#
Description
Price
1
Not Available As Spare Part - Friction Washer
Unavailable
1
Not Available As Spare Part - Friction Washer
Unavailable
2
Silencer Base | Includes 2 to 3
707800115
Unavailable
2
Silencer Base | Includes 2 to 3 / Europe
707800210
Unavailable
3
Bracket Cover
707800079
Unavailable
4
Muffler Cover
707800119
Unavailable
5
Air Filter
707800120
Unavailable
6
RIGID ADAPTOR - Call your local BRP dealership
707800134
Unavailable
7
Front Intake Adaptor
707800121
Unavailable
8
Was 293800066 Sealant Loctite 5900, 300 ml
219704460
Unavailable
9
Oil Seal
293250133
Unavailable
10
INTAKE ADAPTOR - Call your local BRP dealership
707800150
Unavailable
11
Drain Tube
707800080
Unavailable
12
RETAINER CLIP - Call your local BRP dealership
707800081
Unavailable
14
HEX. SCREW M4 X 12 - Call your local BRP dealership
207141244
Unavailable
16
FILTER FOAM - Call your local BRP dealership
707800088
Unavailable
17
FOAM BRACKET - Call your local BRP dealership
707800087
Unavailable
19
AIR INJECTION VALVE - Call your local BRP dealership | Europe
707800208
Unavailable
20
Hex. Flange Screw M8 X 20
207682044
Unavailable
21
Hex. Flange Elastic Nut M8
233281414
Unavailable
22
AIR INJECTION VALVE SUPPORT - Call your local BRP dealership | Europe
707800212
Unavailable
23
Vent Hose
707800127
Unavailable
25
Carburetor Vent Hose
707800128
Unavailable
26
Norma Clamp
293650110
Unavailable
27
Norma Clamp
293650110
Unavailable
28
Grommet | Europe
707800347
Unavailable
29
Grommet | Europe
707800347
Unavailable
32
Deflector
707800145
Unavailable
33
Hex. Flange Screw M6 X 20
207662044
Unavailable
34
Flat Washer
250200082
Unavailable
35
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
36
Neoprene Seal 3000Mm Long
219704371
Unavailable
37
INLET HOSE - Call your local BRP dealership | Europe
707800219
Unavailable
38
OUTLET HOSE - Call your local BRP dealership | Europe
707800220
Unavailable
