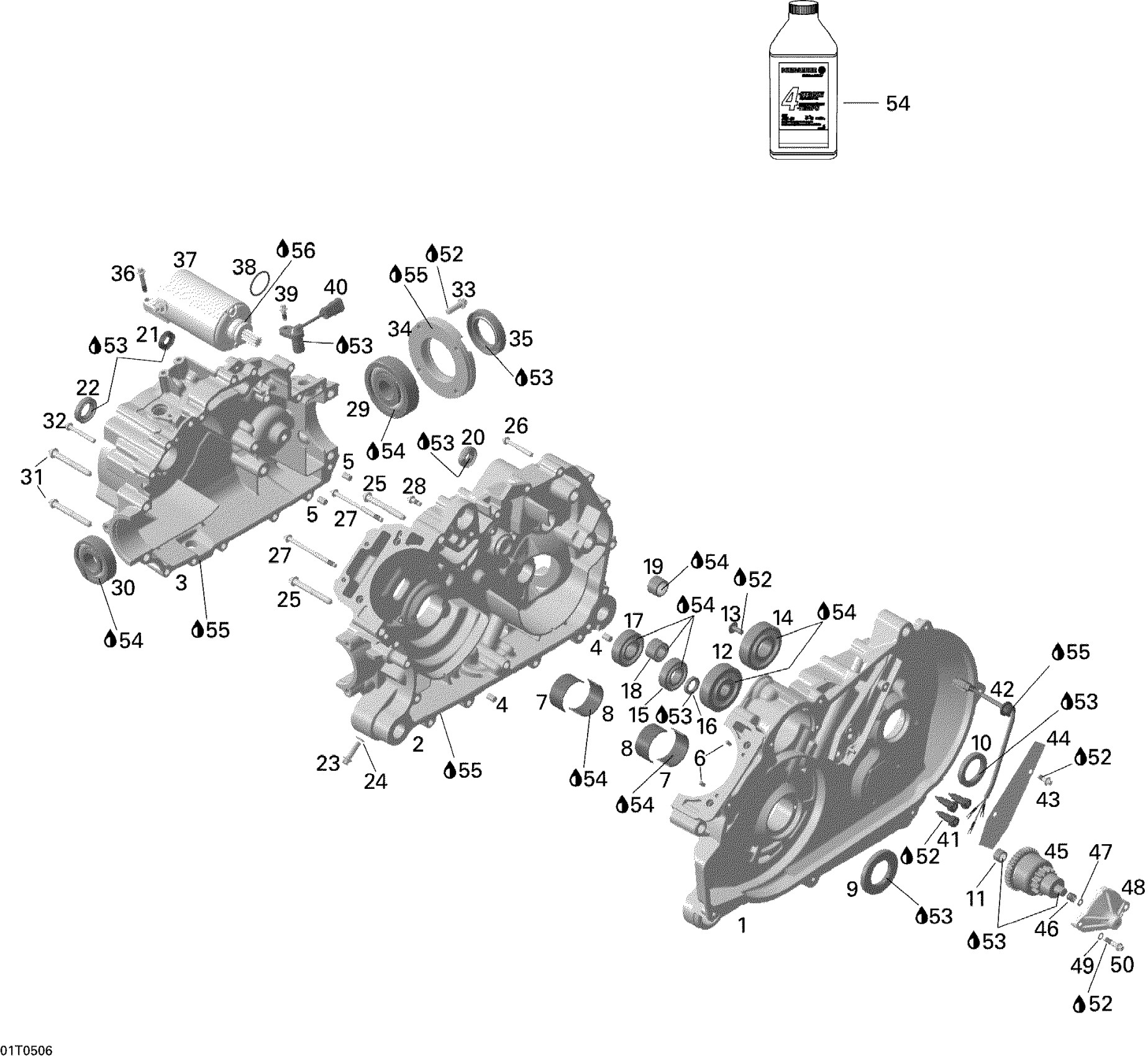

Can-Am Outlander MAX 400, 2005 Crankcase Diagram

#

Description
Price

1

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 22

420296761

$1,119.99

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Not Available As Spare Part - Friction Washer

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Center Pin 8 X 12

420632010

Unavailable

5

Center Pin 8 X 12

420632010

Unavailable

6

Drive Pin 5 X 10

420929650

Unavailable

7

Plain Bearing

420233960

Unavailable

8

Plain Bearing

420233965

Unavailable

9

Oil Seal

420630152

Unavailable

10

Oil Seal

420950089

Unavailable

11

Needle Bushing

420232482

Unavailable

12

Ball Bearing

420632295

$45.35

13

Torx Screw M6 X 16

420241529

Unavailable

14

Ball Bearing

420932822

Unavailable

15

Ball Bearing 6302

420232291

Unavailable

16

Oil Seal

420250130

Unavailable

17

Ball Bearing 6204

420932433

Unavailable

18

Needle Bushing

420232085

Unavailable

19

Needle Bushing

420832240

Unavailable

20

Oil Seal

420250450

Unavailable

21

Oil Seal

420650315

$9.62

22

Oil Seal

420930392

Unavailable

23

Torx Flange Screw M8 X 25

420440372

$4.00

24

Sealing Ring

420950141

$1.64

25

Torx Flange Screw M8 X 65

420440402

Unavailable

26

Torx Flange Screw M6 X 45

420440324

$0.81

27

Torx Flange Screw M6 X 85

420641228

Unavailable

28

Torx Flange Screw M6 X 16

420440162

$3.11

29

Ball Bearing 6405

420632280

Unavailable

30

Ball Bearing

420932822

Unavailable

31

Torx Flange Screw M6 X 85

420641228

Unavailable

32

Torx Flange Screw M6 X 45

420440324

$0.81

33

Torx Flange Screw M8 X 25

420440372

$4.00

34

Bearing Cover

420610243

Unavailable

35

Oil Seal

420650682

$18.43

36

Torx Flange Screw M6 X 35

420440274

Unavailable

37

Electric Starter | Includes 37 to 38

420684283

Unavailable

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Not Available As Spare Part - Friction Washer

Unavailable

39

Not Available As Spare Part - Friction Washer

Unavailable

40

Not Available As Spare Part - Friction Washer

Unavailable

41

Position Switch

420241856

Unavailable

42

Wiring Harness

420265831

Unavailable

43

Torx Flange Screw M6 X 16

420440162

$3.11

44

Cover Sheet

420251290

Unavailable

45

Starter Drive Assembly

420684052

Unavailable

46

Spring

420938204

Unavailable

47

Washer 5.3

420927574

Unavailable

48

Reduction Cover Gear

420610891

Unavailable

49

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

50

Hex. Screw M6 X 25

420240034

$1.56

51

Thrust Washer Set, CVT Side

420281302

Unavailable

52

Loctite 243, 10 ml

293800060

$20.77

53

Grease, Super Lube

293550030

Unavailable

54

OIL 4T 12X1 BLEND QUART - Call your local BRP dealership

293600121

Unavailable

55

Loctite 5910, 300 ml

293800081

$57.99

56

Petamo Grease, GHY133N, 400 g

420899271

Unavailable
