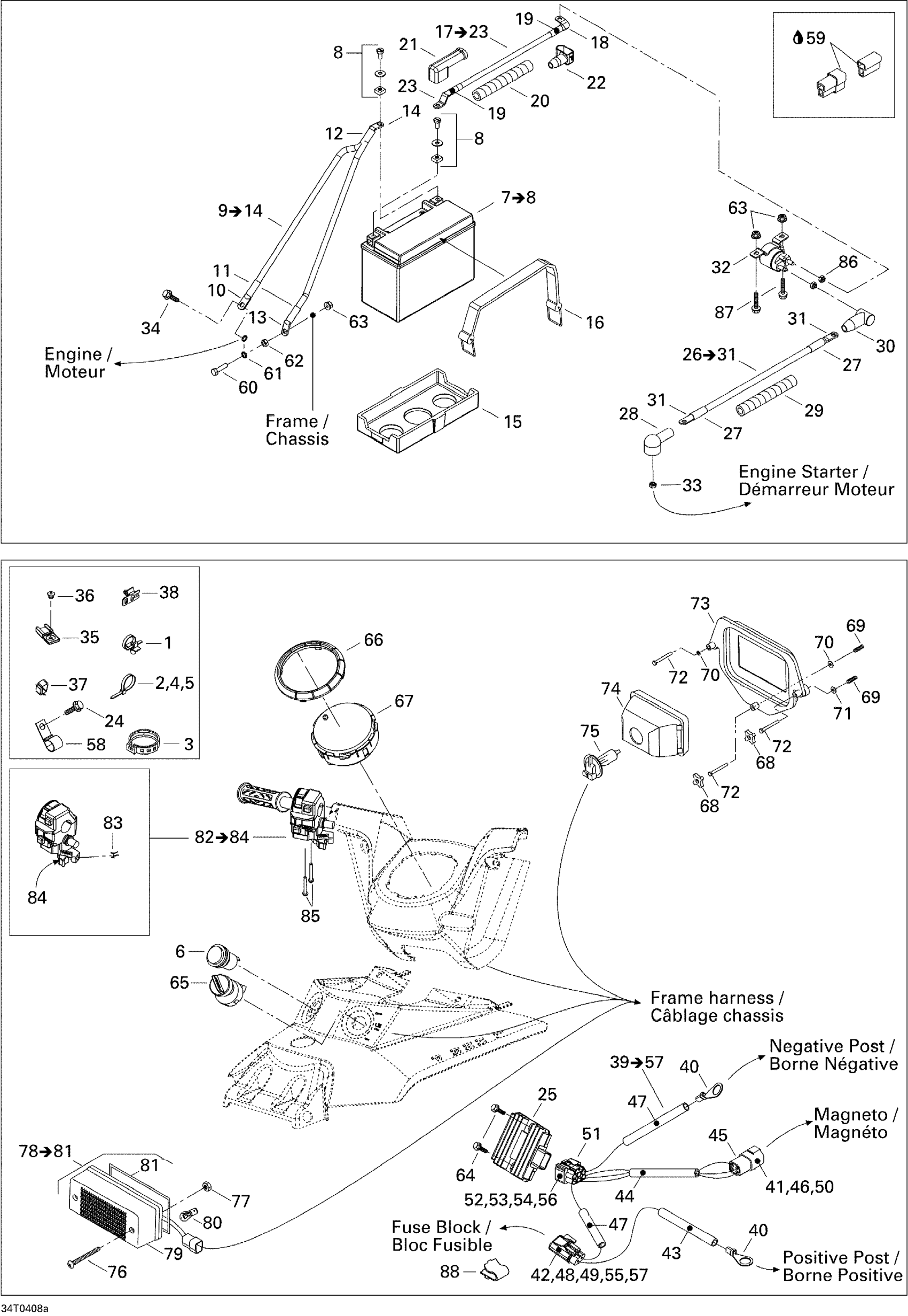

Can-Am Outlander MAX 400, 2004 Battery and Accessories Diagram

#

Description
Price

1

Tie-Rap 173 mm

293750009

$0.85

2

Tie Wrap 94 mm | 4X4

293750001

$0.83

3

Oetiker Clamp

293650100

$2.74

4

Tie-Rap 180 mm

414115200

$0.09

5

Tie Wrap 368 mm

293750008

$0.85

Tie Wrap 368 mm

293750008

$0.85

6

Outlet Power Kit, 12 Volts

861507200

$30.52

7

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$126.07

8

Battery Bolt Kit

250000282

$2.95

9

Ground Cable, Frame/Engine | Includes 1 To 6

710000458

Unavailable

10

Flat Open Barel 6.6 mm

710000479

Unavailable

11

Was 710000483 Heat Shrink Tubing

219704447

$72.36

12

Shrink Tubing | XT Models

275500578

Unavailable

13

Open Barrel

710000540

Unavailable

14

Open Barrel

710000539

Unavailable

15

INSULATOR PAD - Call your local BRP dealership

710000279

Unavailable

16

Retainer Strap

293850097

$9.26

17

Positive Cable, Battery/Solenoid | STD Models, Includes 13 To 19

710000520

Unavailable

18

TERMINAL_FEMALE - Call your local BRP dealership | STD Models

710000475

Unavailable

19

Was 710000483 Heat Shrink Tubing

219704447

$72.36

20

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

21

Protector Cap | STD Models

710001829

$9.43

22

Protector Cap | STD Models

710000523

Unavailable

23

Open Barrel | STD Models

710000518

$10.49

24

Hex. Flange Screw M6 X 16

210261650

$1.22

25

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

26

Positive Cable | Includes 20 To 25

710000459

Unavailable

27

Was 710000483 Heat Shrink Tubing

219704447

$72.36

28

PROTECTOR CAP - Call your local BRP dealership

710000496

Unavailable

29

PROTECTOR TUBE, 9 MM - Call your local BRP dealership

710000497

Unavailable

30

Protector Cap

710000526

$9.84

31

Open Barrel

710000530

Unavailable

32

Starter Relay

515176011

$51.97

33

Hex. Elastic Stop Nut M6

232561600

$0.92

34

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

35

Clip

270000141

$8.33

36

Pop Rivet 3/16"

390402400

$0.25

37

Clip

414227300

$1.40

38

Housing Support

515175283

$8.18

39

WIRING HARNESS EXT. - Call your local BRP dealership | Includes items 39 to 57

710000678

Unavailable

40

Open Barrel Terminal

278001392

$4.00

41

Sealing Cap

293000052

$2.55

42

Fuse, 30 Amperes

410917200

$3.12

43

Tubing 6 Mm 3000Mm Long

219704425

$12.75

44

Was 409901700 Tubing (9 mm)

219704399

$77.58

45

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278001477

Unavailable

46

Male Terminal

515175568

$7.25

47

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

48

Fuse Holder Cap

278001326

$5.85

49

Fuse Holder

278001325

$8.31

50

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

278001478

Unavailable

51

MALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

710000336

Unavailable

52

JOINT SEAL - Call your local BRP dealership

710000337

Unavailable

53

SECONDARY LOCK - Call your local BRP dealership

710000339

Unavailable

54

CAP - Call your local BRP dealership

710000343

Unavailable

55

Cushion

278000805

$3.12

56

FEMALE TERMINAL - Call your local BRP dealership

710000356

Unavailable

57

Female Terminal

710000357

$5.85

58

CLAMP - Call your local BRP dealership

705600311

Unavailable

59

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

60

Hex. Screw M6 X 25

207162544

$1.01

61

External Serrated Lock Washer 6 mm

234461608

$0.92

62

Hex. Nut M6

232061414

$0.44

63

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

64

Hexagonal Head Screw

210262050

$1.74

65

Switch_Ignition

710007867

$81.31

65

Key, Groove on Left Side

715900019

$21.42

66

TRIM RING - Call your local BRP dealership

710000353

Unavailable

67

SPEEDOMETER - Call your local BRP dealership

710000694

Unavailable

68

Handle

572106600

$9.03

69

SPRING - Call your local BRP dealership

710000285

Unavailable

70

Flat Washer 4 mm, Stainless

234042600

$0.92

71

Flat Washer 4 mm

234040600

$0.46

72

HEX. SCREW K40 X 40 - Call your local BRP dealership

250000008

Unavailable

73

RH Headlight Support

710000236

Unavailable

LH HEADLIGHT SUPPORT - Call your local BRP dealership

710000277

Unavailable

74

LAMP HOUSING - Call your local BRP dealership

705000284

Unavailable

75

BULB - Call your local BRP dealership

710000176

Unavailable

76

PAN HEAD PHILLIPS SCREW M5 X 60 - Call your local BRP dealership

208656091

Unavailable

77

Hex. Flange Elastic Nut M5

233251414

$1.66

78

Tail Light Housing

710000102

Unavailable

79

TAIL LIGHT LENS, RED - Call your local BRP dealership

710000055

Unavailable

80

Bulb

520000758

$7.49

81

GASKET - Call your local BRP dealership

710000129

Unavailable

82

Multi-Fonction Handle | Includes 9 To 11

710000311

Unavailable

83

CLIP - Call your local BRP dealership

710000631

Unavailable

84

CHOKE LEVER - Call your local BRP dealership

710000632

Unavailable

85

Socket Head Screw M5 X 35

205053588

$1.56

86

Elastic Stop Nut M6

232561414

$1.78

87

Hex. Flange Screw M6 X 16

207661644

$0.61

88

CLIP - Call your local BRP dealership | Europe Models

409205600

Unavailable
