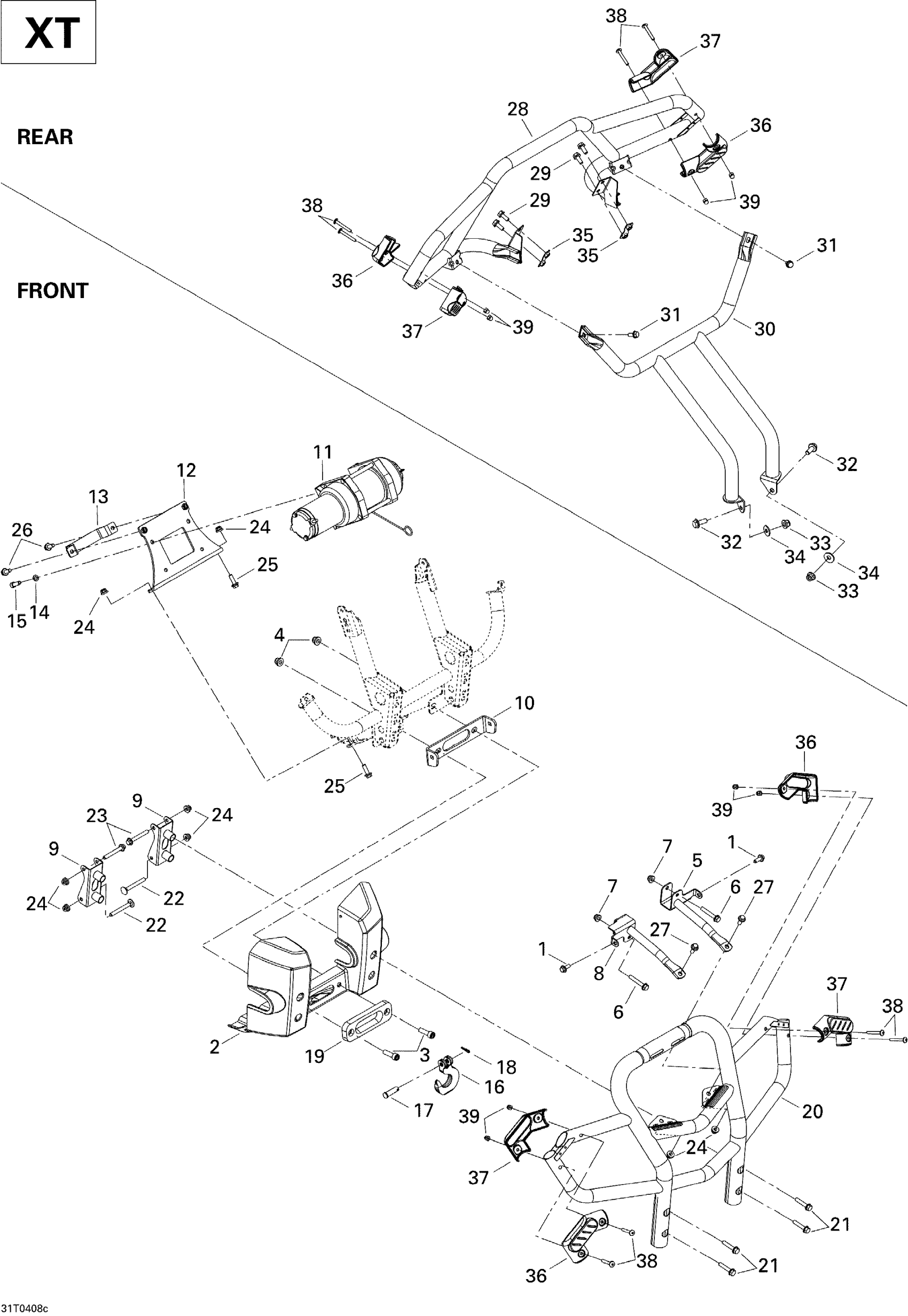

Can-Am Outlander MAX 400, 2004 Body XT Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 25

207682544

$0.90

2

Front Protection Plate

705001076

Unavailable

3

Socket Screw M10 X 35

205003544

$1.39

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

LH Anchoring

705001186

Unavailable

6

Hex. Flange Screw M8 X 50

207685044

$1.39

7

Hex. Flange Elastic Nut M8

233281414

$1.14

8

RH Anchoring

705001190

Unavailable

9

BUMBER ANCHORING - Call your local BRP dealership

705003006

Unavailable

10

renfort de pare-chocs - Call your local BRP dealership

705001073

Unavailable

11

WINCH - Call your local BRP dealership

705000839

Unavailable

12

MOUNTING PLATE - Call your local BRP dealership

705000415

Unavailable

13

BRACKET - Call your local BRP dealership

705000416

Unavailable

14

Lock Washer 8 mm

234181401

$0.87

15

SOCKET SCREW 5/16-18 X 1 - Call your local BRP dealership

250000041

Unavailable

16

Winch Hook Kit

705014949

$23.10

17

Clevis Pin

250400021

$11.48

18

Cotter Pin

250400022

$8.40

19

CABLE GUIDE - Call your local BRP dealership

705000194

Unavailable

20

Front Bumper

705001077

Unavailable

21

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

22

Carriage Bolt M8 X 70

207787044

$1.11

23

Hex. Flange Screw M8 x 60

207686044

$2.56

24

Hex. Flange Elastic Nut M8

233281414

$1.14

25

Hex. Flange Screw M8 X 25

207682544

$0.90

26

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

27

Hex. Flange Screw M8 X 20

207682044

$0.92

28

REAR BUMPER - Call your local BRP dealership

705001079

Unavailable

29

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

30

Rear Lower Bumper

705001081

Unavailable

31

Hex. Flange Screw M8 X 16, Scotch Grip

207581646

$1.74

32

Hex. Flange Screw M10 X 30

207603044

$1.70

33

Hex. Flange Elastic Nut M10

233201414

$1.26

34

Washer

503032900

$3.10

35

ATTACHMENT PLATE - Call your local BRP dealership

705001075

Unavailable

36

MALE CAP - Call your local BRP dealership

705001042

Unavailable

37

FEMALE CAP - Call your local BRP dealership

705001043

Unavailable

38

Pan Head Phillips Screw M6 X 45

250000167

Unavailable

39

Domed Nut M6

232361493

$1.77
