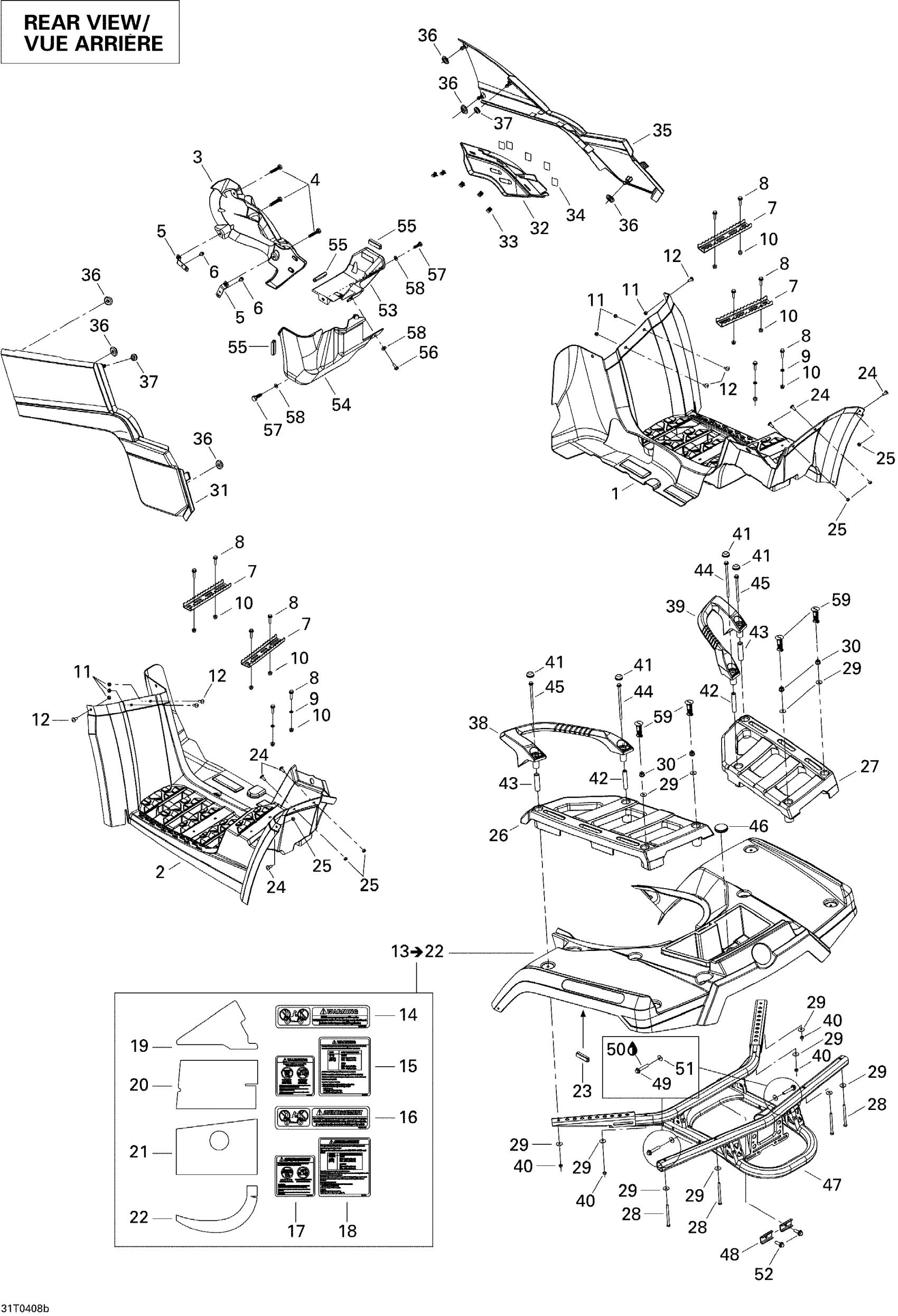

Can-Am Outlander MAX 400, 2004 Body (Rear View) Diagram

#

Description
Price

1

RH Footboard

705000908

Unavailable

2

LH Footboard

705000912

Unavailable

3

Engine Cover

705000514

Unavailable

4

Hex. Flange Screw M6 X 12

210261250

$1.56

5

Engine Cover Support

705003646

$7.69

6

Hex. Forming Screw M6 X 10

210261050

$1.42

7

Footrest

705003648

$41.51

8

Hex. Flange Screw M6 X 25

207662554

$1.48

9

Lock Washer M6, Black

234161471

$0.52

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

12

TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

211000121

Unavailable

13

Rear Fender Kit, Red | Includes 13 to 22

703500418

$451.51

13

Rear Fender Kit, Green | Includes 13 to 22

703500419

Unavailable

13

Rear Fender Kit, Yellow | Includes 13 to 22

703500420

Unavailable

14

Warning Decal, Rear Load | English Version

704900517

Unavailable

15

Warning Label, Under 12 Years Old/Tire P

704900643

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Not Available As Spare Part - Friction Washer

Unavailable

20

Not Available As Spare Part - Friction Washer

Unavailable

21

Not Available As Spare Part - Friction Washer

Unavailable

22

Not Available As Spare Part - Friction Washer

Unavailable

23

Was 293200017 Neoprene Seal

219704365

$118.27

24

TRUSS PHILLIPS SCREW M6 X 16 - Call your local BRP dealership

211000121

Unavailable

25

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

26

LH REAR LUGGAGE RACK - Call your local BRP dealership

705000434

$36.89

27

RH REAR LUGGAGE RACK - Call your local BRP dealership

705000435

$36.89

28

Hex. Screw M6 X 80

207168044

Unavailable

29

Flat Washer

224061201

$1.11

30

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

31

PANEL_BODY LH B-176 - Call your local BRP dealership

705003484

$42.28

31

LH PANEL, LAURENTIAN GREEN - Call your local BRP dealership

705000915

Unavailable

31

PANEL_BODY LH B-190 - Call your local BRP dealership

705003483

Unavailable

32

Muffler Cover

705000689

Unavailable

33

Edge Clip

517302785

$0.70

34

Not Available As Spare Part - Friction Washer

Unavailable

35

RH Panel, Red

705000918

Unavailable

35

RH Panel, Green

705000919

Unavailable

35

RH Panel, Yellow

705000920

Unavailable

36

Oval Washer

705005156

$4.85

37

Grommet

709000582

$4.38

38

LH Handle

705000979

Unavailable

39

RH Handle

705000980

Unavailable

40

Elastic Stop Nut M6

232561414

$1.55

41

Handle Cap

705001242

Unavailable

42

Spacer

705001243

Unavailable

43

SPACER - Call your local BRP dealership

705001244

$8.43

44

Hex. Flange Screw M6 X 130

230663084

$2.77

45

Hex. Flange Screw M6 X 95

207669584

$3.28

46

Rubber Cover

570041600

Unavailable

47

Welded Support

705000821

Unavailable

48

U Reinforcement

705003647

$6.92

49

Hex. Flange Screw M8 X 45

207684544

$3.68

50

Loctite 243, 10 ml

293800060

$20.77

51

Flat Washer 8 mm

234082410

$1.11

52

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

53

RH TANK PROTECTOR - Call your local BRP dealership

705000554

Unavailable

54

LH Tank Protector

705000555

$21.35

55

Was 293200017 Neoprene Seal

219704365

$118.27

55

Was 293200017 Neoprene Seal

219704365

$118.27

55

Was 293200017 Neoprene Seal

219704365

$118.27

56

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

57

Hex. Flange Screw M6 X 16

210261650

$1.22

58

Flat Washer

250200082

$0.35

59

Protection Plug

705000656

Unavailable
