Description

Price

1

LH Swing Arm

706000318

Unavailable

2

RH Swing Arm

706000320

Unavailable

3

Sway Bar

706001077

$110.74

4

Ball Bearing

293350037

$128.43

5

Circlip

293370041

$9.98

6

Nut

706000221

$23.05

7

Cover

706000749

$15.35

8

Circlip 45 mm

293370027

$4.98

9

Lever

706000548

$36.89

10

Washer

250200045

$7.37

11

Elastic Stop Nut M18

232591414

$3.48

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Rear Shock

706000382

$171.51

14

Full Moon Rear Spring

706000261

Unavailable

15

Adjuster Ring

706002356

$17.66

16

Spring Stopper

706200881

$10.30

17

SPRING SEAT - Call your local BRP dealership

706000533

$9.74

18

PROTECTOR - Call your local BRP dealership

503190436

$13.83

19

Cap

706200785

$4.42

20

Hex. Flange Screw M10 X 55

207605544

$2.78

21

Hex. Flange Elastic Nut M10

233201414

$1.26

22

LH PROTECTOR - Call your local BRP dealership

706000170

$10.74

23

RH Protector

706000171

Unavailable

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

25

Loctite 243, 10 ml

293800060

$20.77

26

Oetiker Clamp

293650162

$8.45

27

Loctite 271, 10 ml

293800005

$20.77

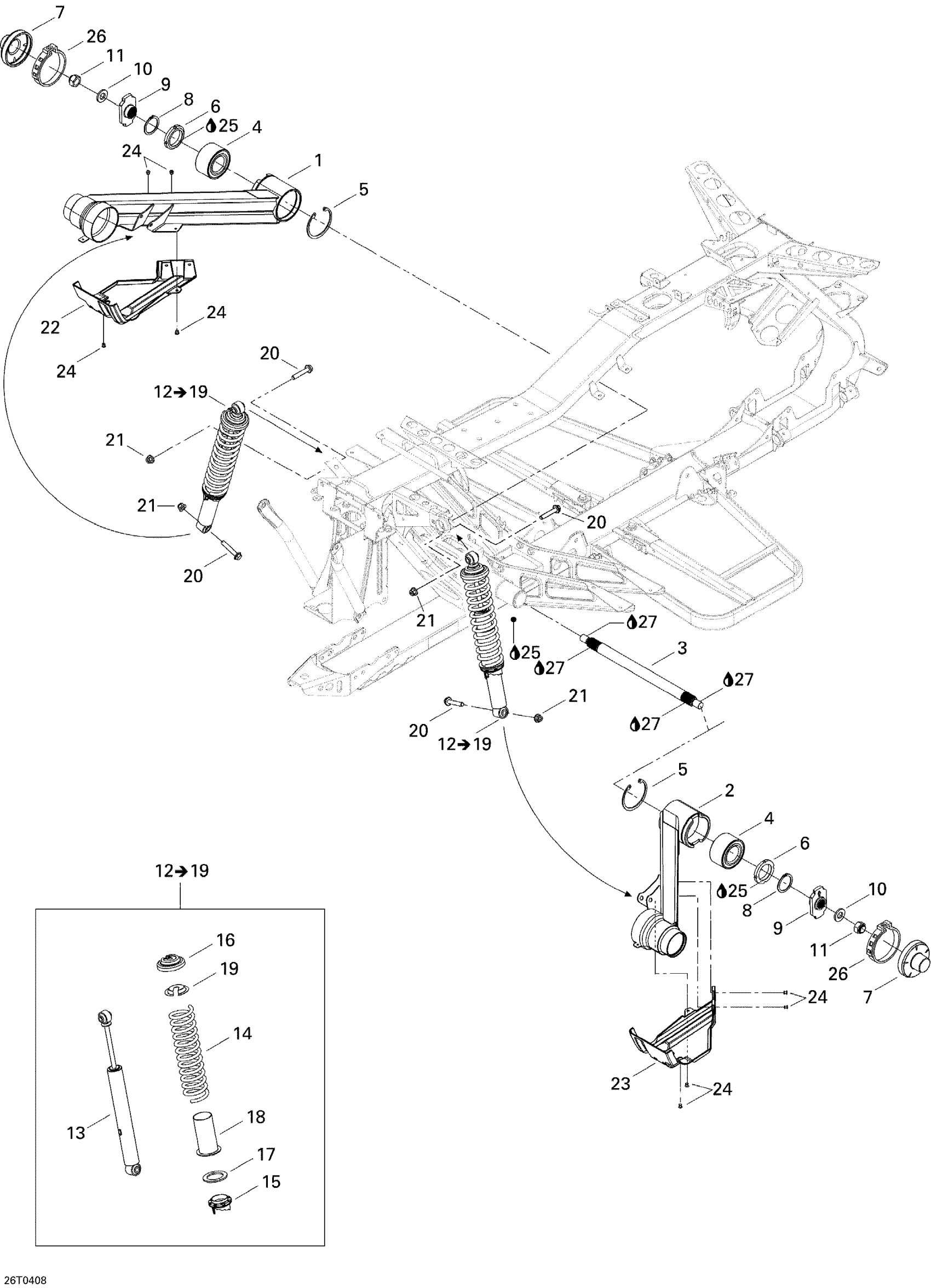

Can-Am Outlander MAX 400, 2004 Rear Suspension Diagram

LH Swing Arm

RH Swing Arm

Not Available As Spare Part - Friction Washer

Full Moon Rear Spring

RH Protector
