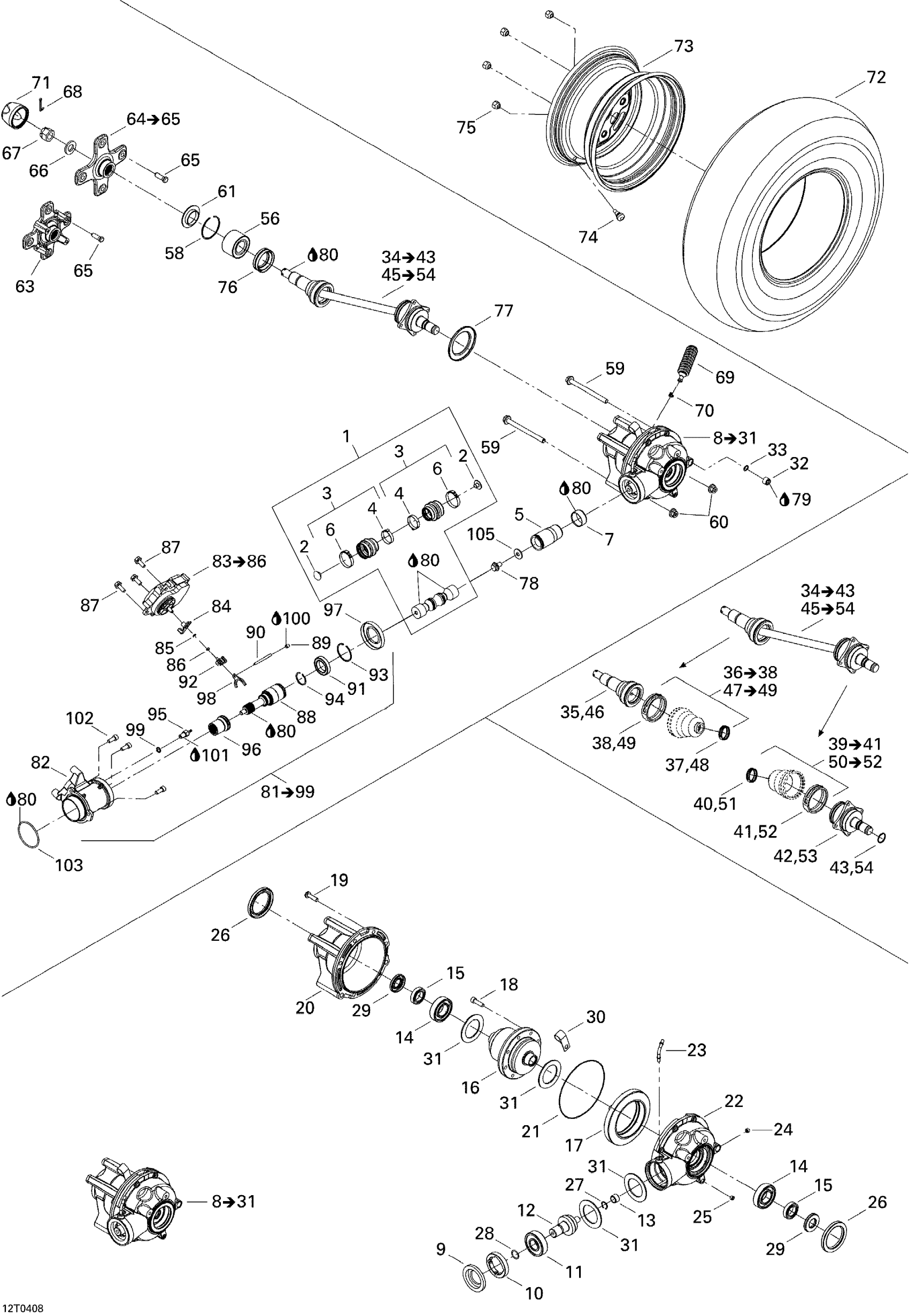

Can-Am Outlander MAX 400, 2004 Drive System, Front Diagram
#
Description
Price
2
Not Available As Spare Part - Friction Washer
Unavailable
3
Rubber Boot Kit | 4X4 / Includes 3 to 5
703500255
Unavailable
4
Collar | 4X4
705400148
Unavailable
8
Front Differential Ass'y | 4X4 / Includes 8 to 30
705400260
Unavailable
12
GEAR, 10 TEETH - Call your local BRP dealership | 4X4
705500268
Unavailable
13
Needle Bearing | 4X4
705500261
Unavailable
20
Front Cover | 4X4
705400133
Unavailable
22
Front Cover | 4X4
705400261
Unavailable
24
Protector Plug
705500246
Unavailable
26
Oil Seal | 4X4
293250137
Unavailable
34
RH CV Joint | Includes 31 - 40.
705400097
Unavailable
38
Clamp | 4X4
705400180
Unavailable
41
Clamp | 4X4
705400181
Unavailable
43
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
45
LH CV Joint | Includes 41 - 50.
705400096
Unavailable
49
Clamp | 4X4
705400180
Unavailable
52
Clamp | 4X4
705400181
Unavailable
54
CIRCLIP - Call your local BRP dealership | 4X4
705400042
Unavailable
57
Not Available As Spare Part - Friction Washer
Unavailable
61
EXTERNAL WEAR SLEEVE - Call your local BRP dealership | 2X4
705501122
Unavailable
63
LH WHEEL HUB ASSEMBLY - Call your local BRP dealership | 4X4 / Includes 65 to 66
705501713
Unavailable
71
WHEEL CAP - Call your local BRP dealership
705400012
Unavailable
72
Front Tire | Outlander XT
705400213
Unavailable
73
Front Rim
705400160
Unavailable
80
Synthetic Grease, 400 G
293550010
Unavailable
81
Not Available As Spare Part - Friction Washer
Unavailable
82
HOUSING - Call your local BRP dealership | 4X4
705400169
Unavailable
86
O-Ring | 4X4
293300108
Unavailable
95
SWITCH - Call your local BRP dealership | 4X4
710000324
Unavailable
