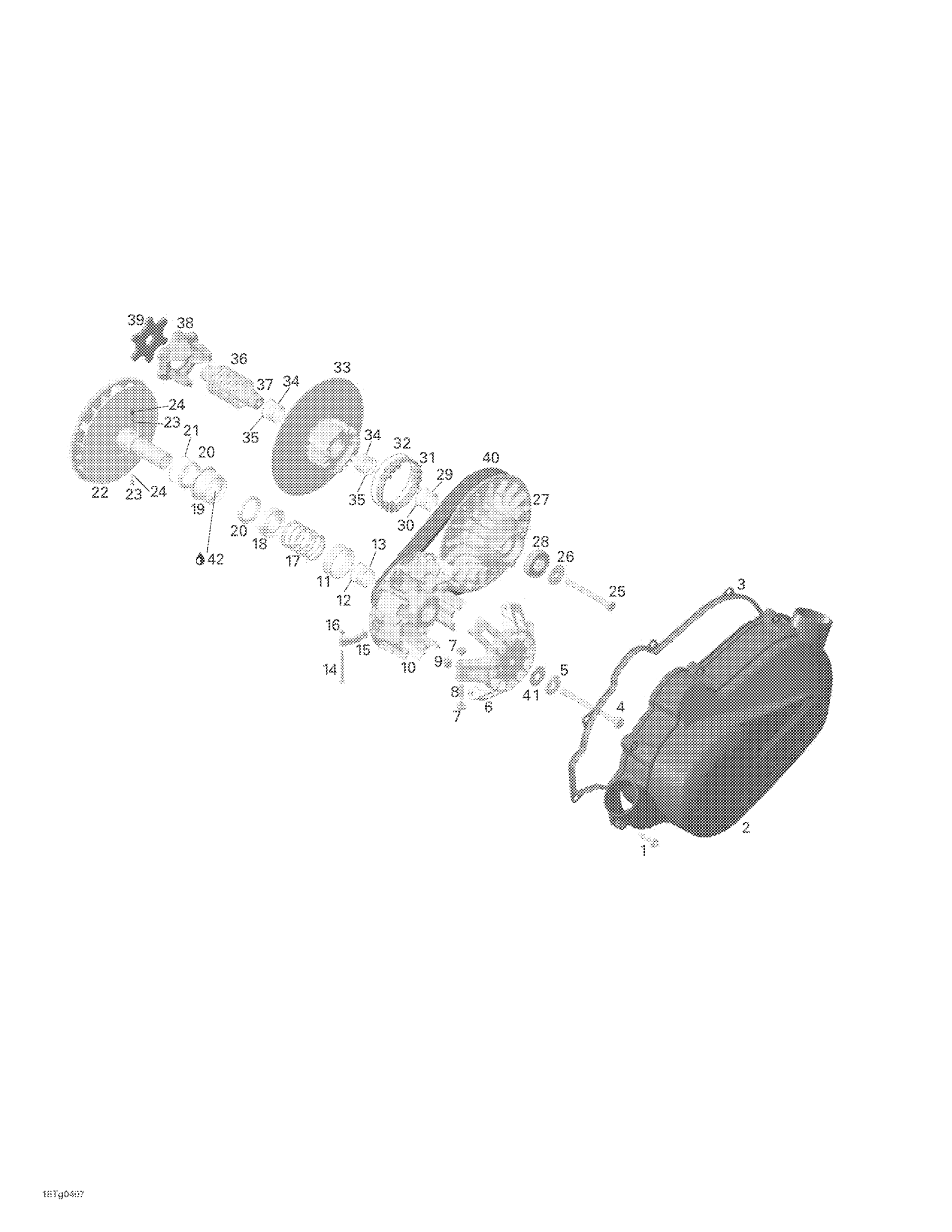

Can-Am Outlander MAX 400, 2004 CVT / Transmission Diagram

#

Description
Price

1

Hex Screw M6 X 30

420440568

$7.10

2

CVT COVER - Call your local BRP dealership

420610420

Unavailable

3

CVT Cover Gasket

420630290

$32.28

4

Hex. Screw M12 X 140

420641812

$27.66

5

Spring Washer

420627760

$11.98

6

CVT Drive Ass'y | 400HO / Includes 6 to 24

420684400

Unavailable

CVT DRIVE ASS'Y - Call your local BRP dealership | 330HO / Includes 6 to 24

420684405

Unavailable

6

Governor Cup Ass'y | Includes 6 to 9

420280522

$253.82

6

Not Available As Spare Part - Friction Washer

Unavailable

7

Slider Shoe Set

420281296

$42.28

8

Roller Axle

417223257

$9.22

Roller Axle

417223257

$9.22

9

Roller

417223767

$7.37

Roller

417223767

$7.37

10

Outer Half Ass'y | 400HO / Includes 10 to 16

420280310

Unavailable

Outer Half Ass'y | 330HO / Includes 10 to 16

420280315

Unavailable

10

Not Available As Spare Part - Friction Washer

Unavailable

11

Not Available As Spare Part - Friction Washer

Unavailable

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Centrifugal Lever Set | 400HO / Includes 14 to 16

420248424

$132.99

CENTRIFUGAL LEVER SET - Call your local BRP dealership | 330HO / Includes 14 to 16

420248475

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Compression Spring

420238166

$36.89

18

Seat Spring

420627578

$28.57

19

Inner Half Set Ass'y | Includes 19 to 24

420281390

Unavailable

19

Clutch

420257439

$64.58

20

Ball Bearing

420632377

$40.27

21

Retaining Ring

420245951

$4.72

22

Inner Half Set Ass'y | Includes 19 to 24

420281390

Unavailable

23

Spring Sleeve

420229577

$14.92

24

Compression Spring

420239135

$6.45

25

Hex. Screw M10 X 110

420441485

$11.98

26

Thrust Washer

420627594

$12.91

27

CVT Driven Pulley Ass'y | Includes 27 to 40

420684450

Unavailable

27

Outer Half Pulley Ass'y | Includes 27 to 32

420280178

$341.99

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Ball Bearing

420932421

$26.89

29

Not Available As Spare Part - Friction Washer

Unavailable

30

Not Available As Spare Part - Friction Washer

Unavailable

31

TORQUE GEAR - Call your local BRP dealership

420660120

Unavailable

32

Retaining Ring

420245911

$5.98

33

Inner Half Ass'y | Includes 33 to 35

420248233

$308.74

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Compression Spring

420238340

Unavailable

37

Driven Pulley Shaft

420220913

$129.20

38

Cam

420280250

$41.51

39

Cam Plate

420627586

$46.12

40

Drive Belt

422280283

$99.74

41

Thrust Washer

420627920

$7.37

42

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable
