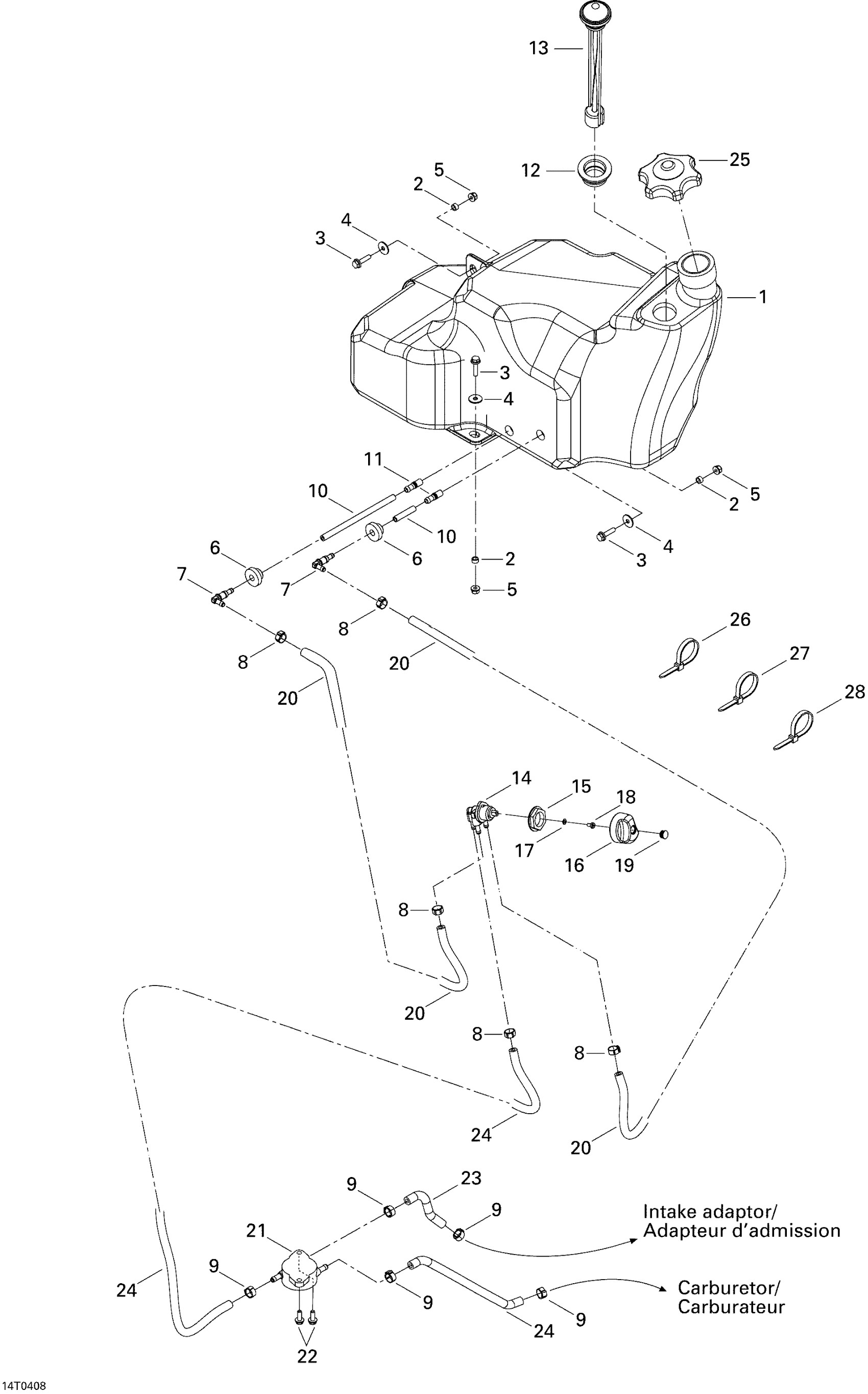

Can-Am Outlander MAX 400, 2004 Fuel System Diagram

#

Description
Price

1

FUEL TANK - Call your local BRP dealership

709000062

Unavailable

2

Bushing | DS 650 X

293900104

$5.26

3

Hex. Flange Screw M6 X 25

207662544

$0.53

4

Flat Washer

250200082

$0.35

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

6

Grommet

570045500

$6.32

7

Elbow Male Connector

414580600

$3.50

8

Oetiker Clamp

293650042

$1.40

9

Spring Clamp

414415200

$0.83

10

HOSE, POLYURETHANE - Call your local BRP dealership

415080200

Unavailable

11

Fuel Filter

414865700

$8.39

12

Grommet

293720058

$11.00

13

FUEL GAUGE - Call your local BRP dealership

709000083

Unavailable

14

Fuel Valve

275500098

$34.42

15

HEX. PLASTIC NUT - Call your local BRP dealership

212100009

Unavailable

16

FUEL VALVE KNOB, BLACK - Call your local BRP dealership

275500263

Unavailable

17

Flat Washer 4 mm

234040600

$0.46

18

PHILLIPS SCREW M4 X 8 - Call your local BRP dealership

208640860

Unavailable

19

Black, Cap

275500241

$2.76

20

Hose

219704549

$47.66

21

Fuel Pump

707200183

$84.14

22

Hex. Flange Screw M6 X 16

210261650

$1.22

23

PULSATION HOSE - Call your local BRP dealership

709000063

Unavailable

24

Hose

219704549

$47.66

25

FUEL CAP - Call your local BRP dealership

709000059

Unavailable

26

Tie-Rap 180 mm

414115200

$0.09

27

Tie Wrap 142 mm

293750002

$0.88

28

Tie-Rap 173 mm

293750009

$0.85
