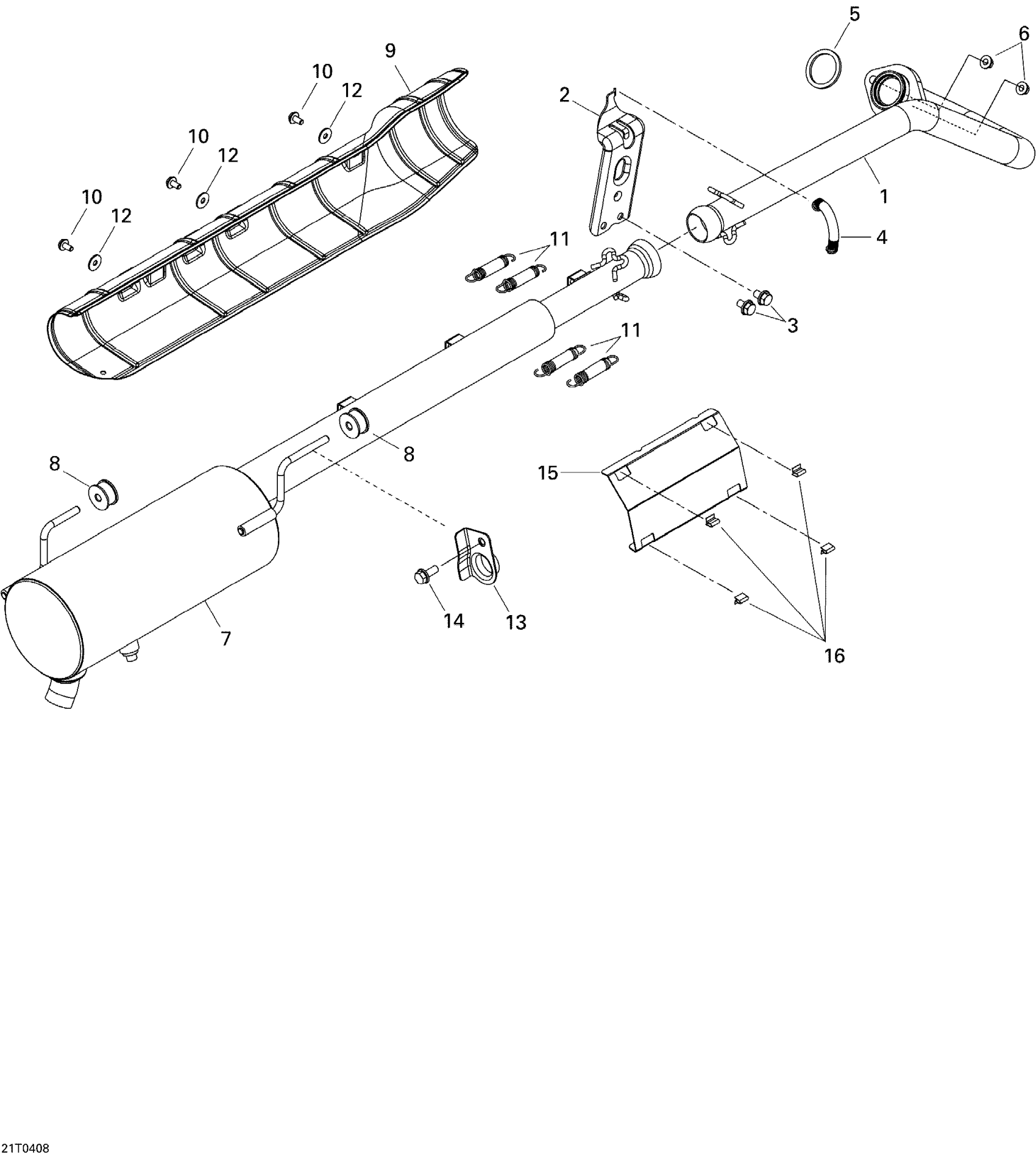

Can-Am Outlander MAX 400, 2004 Exhaust System Diagram

#

Description
Price

1

TUNNED PIPE ASS'Y - Call your local BRP dealership

707600181

Unavailable

2

Muffler Support

707600194

Unavailable

3

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

4

SPRING - Call your local BRP dealership

707600207

$4.58

5

Gasket

707600317

$10.52

6

Hex. Flange Nut M8

233081416

$1.63

7

Muffler

707600236

Unavailable

8

Anti-Vibration Rubber

707600702

$8.34

9

HEAT SHIELD - Call your local BRP dealership

707600255

$27.66

10

HEX. FLANGED SCREW M6 X 12 - Call your local BRP dealership

250000073

Unavailable

11

Spring

415107100

$6.20

12

Flat Washer

250200082

$0.35

13

MUFFLER SUPPORT - Call your local BRP dealership

707600248

$6.89

14

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

15

Heat Deflector

707600281

Unavailable

16

CLIP - Call your local BRP dealership

517302789

Unavailable
