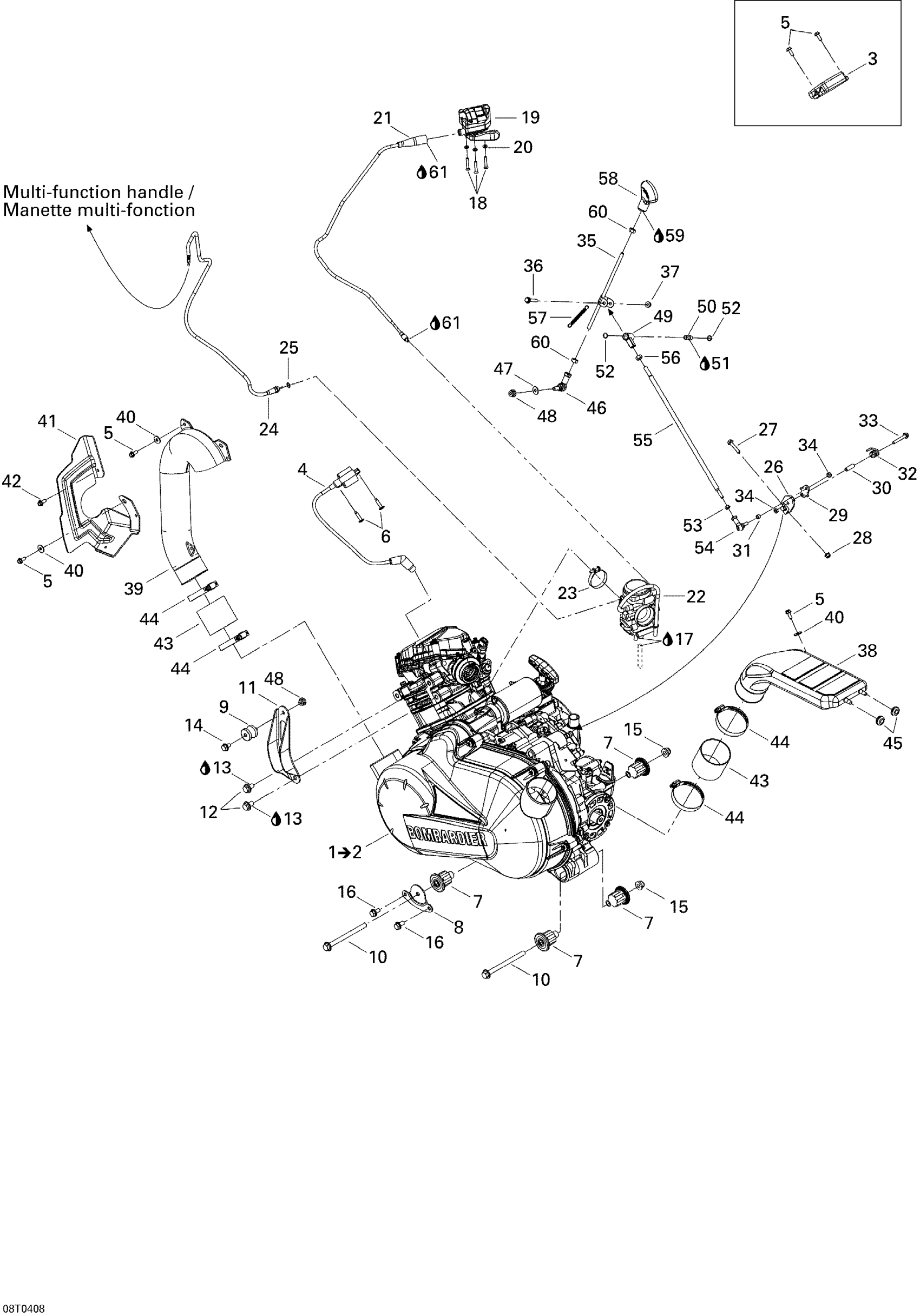

Can-Am Outlander MAX 400, 2004 Engine Diagram

#

Description
Price

1

Rotax 4 Strokes Engine “400” | Includes 1 - 2.

707000235

Unavailable

2

Spark Plug, NGK DCP-R8E

715900637

$5.66

3

AMPLIFIER BOX - Call your local BRP dealership | 400HO

420664285

Unavailable

4

IGNITION COIL ASS'Y - Call your local BRP dealership | Includes 57 to 58

420265358

$133.05

5

Hex. Flange Screw M6 X 16

210261650

$1.22

6

Torx Screw M6 X 25 | XT Models

250000728

$3.61

7

Anti-Vibration Mount

707000218

Unavailable

8

LH FRONT ENGINE BRACKET - Call your local BRP dealership

707000220

$10.74

9

Rubber Isolator

707000949

$9.00

10

Hex. Flange Screw M10 X 125

230602546

$6.08

11

UPPER ENGINE BRACKET - Call your local BRP dealership

707000224

$13.83

12

Hex. Flange Screw M10 X 25

207602544

$1.33

13

Loctite 243, 10 ml

293800060

$20.77

14

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

15

Hex. Flange Elastic Nut M10

233201436

$1.74

16

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$0.92

17

Glue Tube, Loctite 454, 20 G

413708300

$59.97

18

Socket Head Screw M5 X 25

205052588

$1.56

19

Throttle Handle | 4X4

707000595

$73.82

20

Flat Washer M5

234051410

$0.44

21

THROTTLE CABLE - Call your local BRP dealership

707000226

Unavailable

22

Carburator, Mikuni BSR33-49 | 400HO

707200190

Unavailable

23

GEMI CLAMP - Call your local BRP dealership

293650164

$3.05

24

CHOKE CABLE - Call your local BRP dealership

707000228

Unavailable

25

O-RING - Call your local BRP dealership

293300075

$5.35

26

Lever

707000503

$36.89

27

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

29

Pivot Plate

707000507

$7.69

30

Bushing

293900079

$8.49

31

Bushing | DS 650 X

293900104

$5.26

32

Spring

707000310

$9.37

33

Hex. Flange Screw M6 X 40

207664044

$2.18

34

Elastic Stop Nut M6

232561414

$1.55

35

Lever Arm

707000786

$36.89

36

Hex. Flange Screw M6 X 40

207664044

$2.18

37

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

38

AIR OUTLET - Call your local BRP dealership

707000361

Unavailable

39

Air Intake

707000261

Unavailable

40

Flat Washer

250200082

$0.35

41

CVT WATER DEFLECTOR - Call your local BRP dealership

707000697

$12.20

42

Tuflock Phillips Plastic Screw

414745900

$1.30

43

FLEXIBLE ADAPTOR - Call your local BRP dealership

707000154

Unavailable

44

Tridon Clamp

293650064

$7.80

45

Grommet

709000582

$4.38

46

RH Ball Joint

707001959

$35.35

47

Flat Washer 8 mm

234081410

$0.69

48

Hex. Elastic Stop Nut M8

232581414

$0.47

49

PIVOT - Call your local BRP dealership

707000568

Unavailable

50

Bushing

293900075

$11.98

51

Synthetic Grease, 400 G

293550010

Unavailable

52

O-RING - Call your local BRP dealership

414583300

Unavailable

53

LH HEX. NUT M6 - Call your local BRP dealership

232066414

$1.11

54

LH BALL JOINT - Call your local BRP dealership

707000545

Unavailable

55

Threaded Rod

707000567

$34.58

56

Hex. Nut M8

232081414

$0.60

57

Spring

707000569

$8.45

58

Lever Handle

707000284

$18.43

59

Loctite 243, 10 ml

293800060

$20.77

60

Hex. Nut M8

232081414

$0.60

61

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66
